Custom MV Style Rubber Swab Cups by Drawing
Custom MV Swab Cup Lip Profile and Bushing Drawing
This listing covers custom MV multiple-lip swab cup enquiries. Provide a drawing showing cup outside diameter, height, lip count and profile, and steel or aluminum bushing bore. Match these dimensions to the actual tubing and mandrel before requesting a replacement.
Specify rubber compound, Shore A hardness and the fluid, temperature and suspended solids expected in service. Agree drawing revision, sample approval and package labels with the quotation. Custom dimensions should follow the approved cup geometry and equipment fit requirements.
Available types of Swab cups:
TA style: A medium-load cup profile with steel or aluminum bushing according to the selected drawing. Confirm dimensions and equipment load requirements.

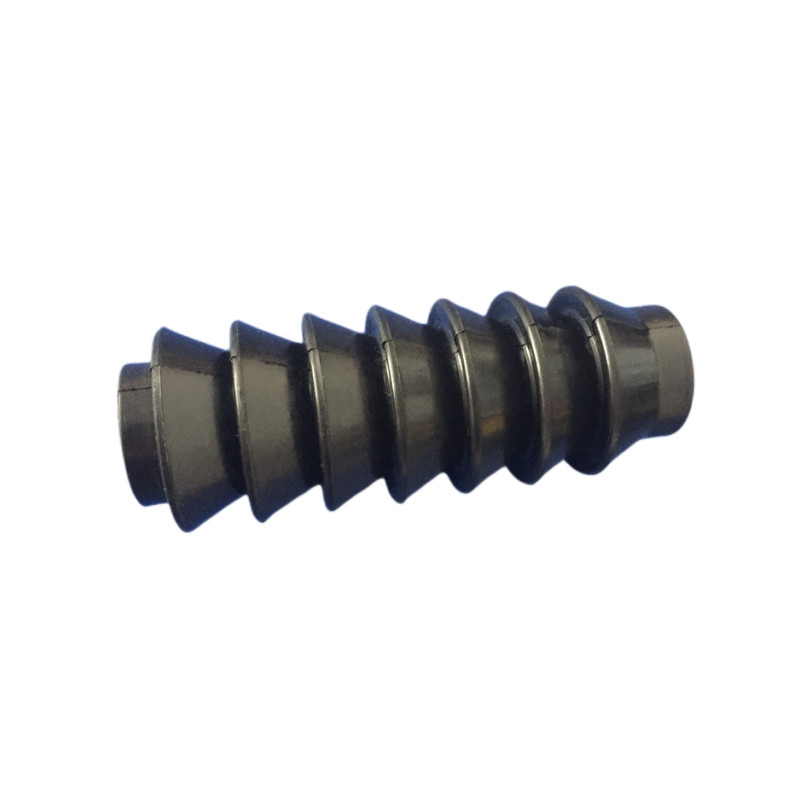

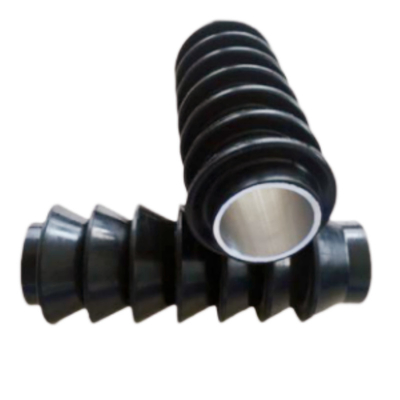

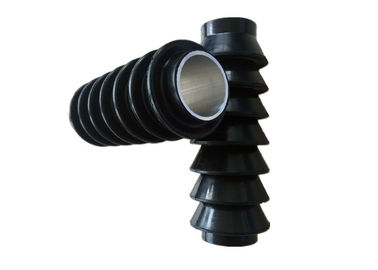

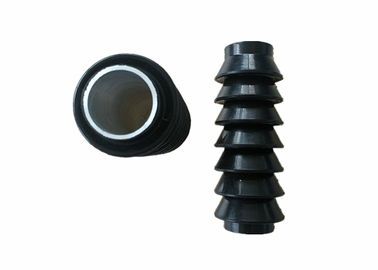

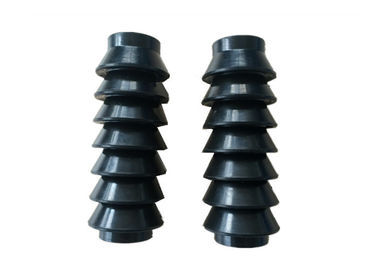

MV style: MV cups use a multiple-lip profile with the bushing arrangement specified by the selected drawing. The cup has either an aluminum or steel bushing with multiple upturned lips which allows it to pass through tight spots and control the amount of load. It is very efficient in fluid with suspended sand.
V style: Shanghai Qinuo carries the V Series Swab Cup in a light duty and heavy duty all rubber cup that is suited for use in fluids with high concentrations of suspended sand. The upturned lips pass easily through tight spots and will invert to dump excessive loads. The number of cups used will vary with conditions.
For frac-fluid service, agree the compound specification and relevant abrasion, tensile and fluid-compatibility requirements with the quotation. Performance depends on the selected formulation and service conditions.
TUF style: A profile incorporating internal metal reinforcement. Confirm the reinforcement arrangement, tubing condition and selected compound before specifying the cup.
NUF style: A heavy-load cup profile with a steel or aluminum bushing according to the selected drawing. Verify cup size, mandrel bore and load requirements for the intended equipment.
| Part Name | MV Style, TA style, TUF style, NUF style and V style |
| Environment | oil, gas, gas condensate |
| Available Material | Nitrile, HNBR or FKM by enquiry; reinforcement and bushing construction according to the selected cup drawing |
Select the cup dimensions and rubber compound for the actual tubing, fluid and equipment load requirements.
Shanghai Qinuo offers swab cup enquiries in nitrile and other specified rubber compounds. For frac-fluid applications, provide fluid composition and temperature for compound selection. Confirm the profile and bushing arrangement for each model.
Other relative rubber products:
Application environment: oil, gas, gas condensate.
Packing and shipment :
1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.
2: Air shipment: air port to air port or air port to door.
3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.
