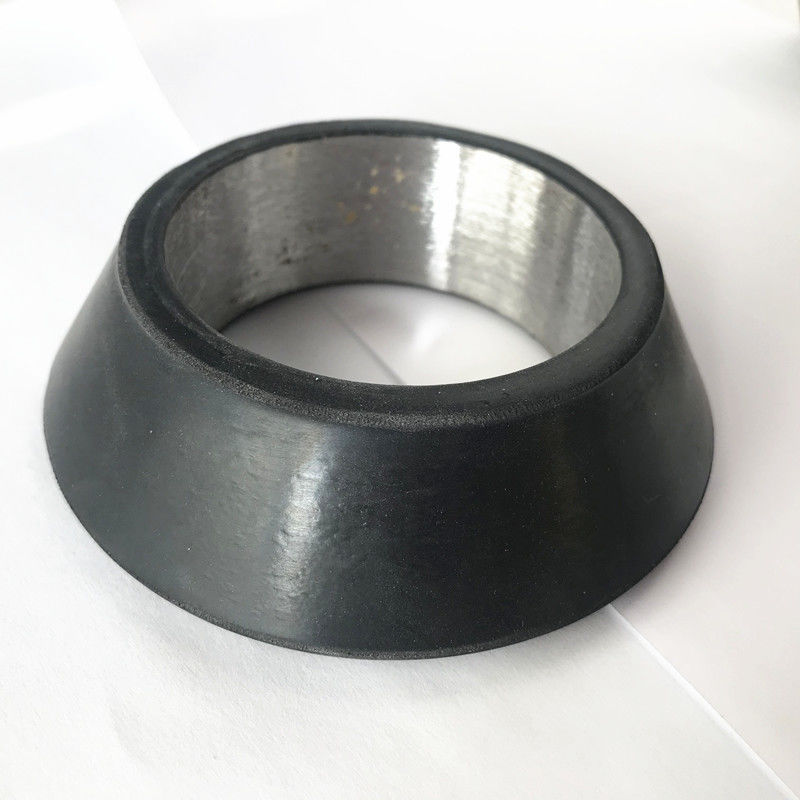

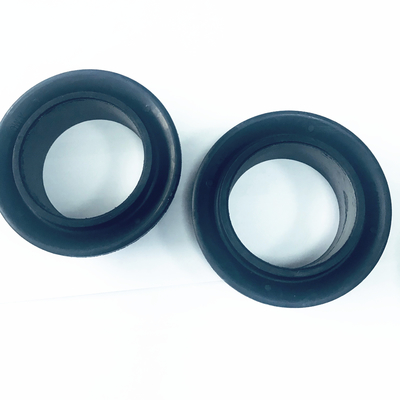

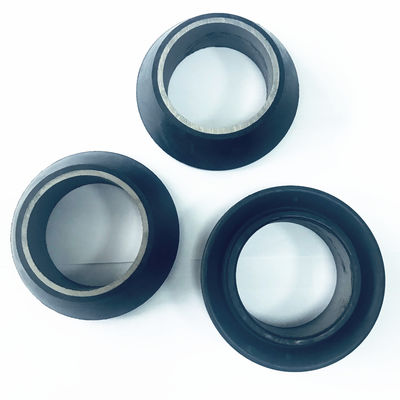

Oilfield Swab Cups High-Tensile Strength V Series Swab Cup for Tough Swabbing

V Series Swab Cups for Compound and Tensile Property Enquiries

Shanghai Qinuo offers V-series swab cup enquiries for the required tubing fit and duty configuration. Specify the selected rubber compound and any tensile or abrasion requirements with the cup drawing. The existing dimension table identifies steel-core references that must be matched to the actual mandrel.
For frac-fluid service, agree the compound specification and relevant abrasion, tensile and fluid-compatibility requirements with the quotation. Performance depends on the selected formulation and service conditions.

V Series Swab Cup Rubber Property and Drawing Requirements

When requesting a tensile-strength or abrasion requirement, specify the compound, test method, acceptance criteria and service conditions in the enquiry. Agree the relevant material documentation with the quotation. A general high-tensile description does not define a tested value for every V cup configuration.

Use the existing cup OD and ID table to identify a size reference, then confirm the lip profile, steel-core bore and standard or heavy-duty construction against the cup drawing. Provide fluid composition, temperature and solids content so material selection can be reviewed for the intended swabbing operation.

All Available types of Swab cups:
TA style: A medium-load cup profile with steel or aluminum bushing according to the selected drawing. Confirm dimensions and equipment load requirements.
MV style: MV cups use a multiple-lip profile with the bushing arrangement specified by the selected drawing. The cup has either an aluminum or steel bushing with multiple upturned lips which allows it to pass through tight spots and control the amount of load. It is very efficient in fluid with suspended sand.
V style: An all-rubber cup profile for model-specific swabbing enquiries. Confirm light- or heavy-duty configuration, cup dimensions and the number of cups with the swabbing equipment requirements.

Select the cup dimensions and rubber compound for the actual tubing, fluid and equipment load requirements.
Shanghai Qinuo offers swab cup enquiries in nitrile and other specified rubber compounds. For frac-fluid applications, provide fluid composition and temperature for compound selection. Confirm the profile and bushing arrangement for each model.
Packing and shipment :
1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.
2: Air shipment: air port to air port or air port to door.
3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.


Shanghai Qinuo Industry Co. Ltd was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.
Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.
We adopt comprehensive quality management system, our quality management system is certified to ISO 9001, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, New Zealand, Australia and other countries and regions.

Mould corner view for the rubber parts:

FAQ

Q1: Are you manufacture or trading company?
We are manufacture. Our factory located in Haimen District, Nantong City, Jiangsu Province.

Q2: How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;

Q3: Can I get some samples?

Sure, samples are available,3-10 samples are for free. Please note that only needs to pay for shipping cost.

Q4: Can you produce OEM products?
Yes, we can produce by your samples or 3D drawings. We can build the molds and fixtures.
Q5: What's the term of payment ?
Amount < US$5000,100% paid in advance by paypal or T/T;
Amount >= US$5000, 30% paid in advance, 70% balance before shipment by T/T
Q6: Can you manage the shipment?
Sure, we can arrange different ship ways according to the goods final packing: by express, by air or by sea.
Q7: What is the lead time?
Stock goods: generally within 7days according to the quantity.
Produce Goods: 12-25days according to the packing and quantity.
