Custom Durable Wear Resistant MV Style Oilfield Rubber Swab Cups
MV swab cup and other profile options:
TA style: TA is a medium load Swab Cup built around a steel or aluminum bushing for use in most sizes of tubing or drill pipe. When under load, it will compress to form a solid rubber mass for maximum lifting capacity and minimum wear. Select the TA compound and profile for the fluid, temperature and load.

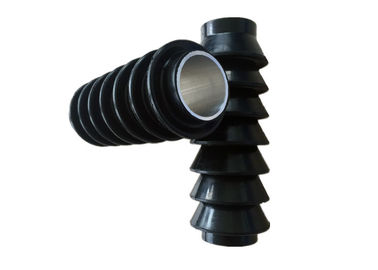

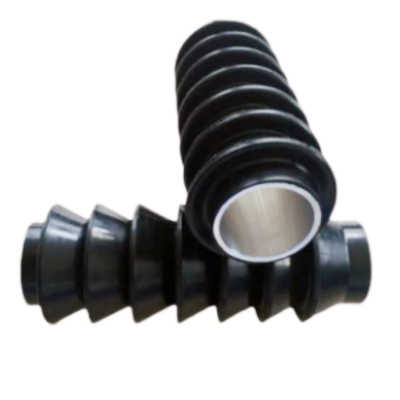

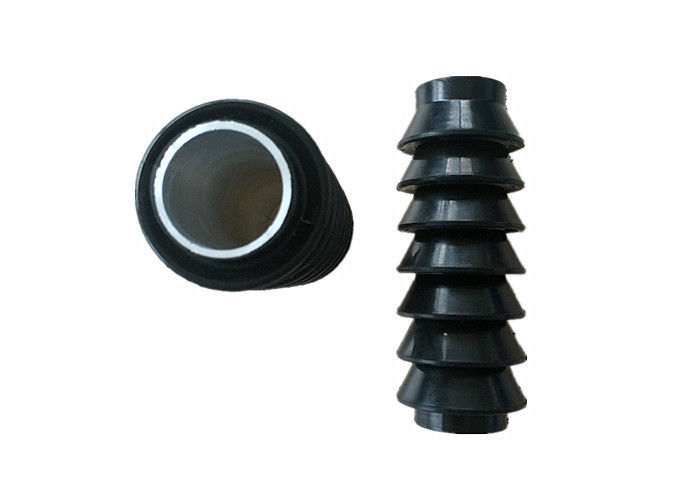

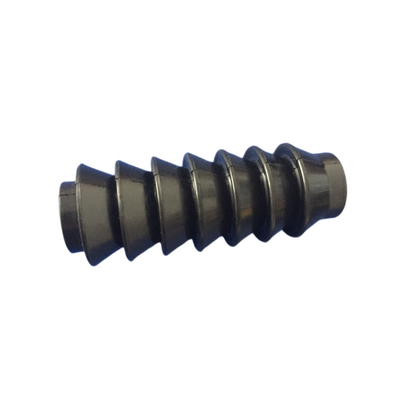

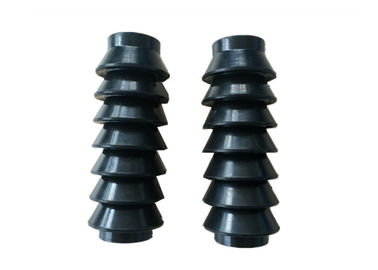

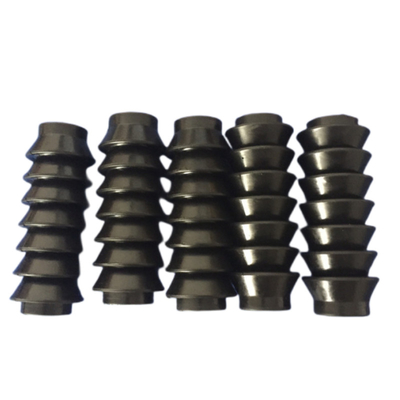

MV style: Shanghai Qinuo offers MV profile swab cups with nitrile or other specified rubber compounds. The cup has either an aluminum or steel bushing with multiple upturned lips which allows it to pass through tight spots and control the amount of load. For fluids with suspended sand, assess solids content and wear when selecting the compound and cup profile.
V style: Shanghai Qinuo carries the V Series Swab Cup in a light duty and heavy duty all rubber cup that is suited for use in fluids with high concentrations of suspended sand. The upturned lips pass easily through tight spots and will invert to dump excessive loads. The number of cups used will vary with conditions.
For frac-fluid service, specify the fluid composition and required abrasion resistance; confirm compatibility with the chosen compound.
TUF style: The design of the TUF cup, with its internal metal reinforcement which maintains the shape of the cup, makes this an excellent choice for deep hot wells or rough and corroded tubing and casing. Strong enough for heavy loads, its flexability also allows it to work in light load situations.
NUF style: The NUF is a heavy load all rubber cup that provides maximum lifting capacity. Bonded to either standard steel or aluminum bushings, and available in a wide range of sizes, this cup is a good choice for deep well applications. This cup is designed for high performance and heavy loads. Made of our special Frac Fluid compound, it will perform under the toughest conditions.
MV Multi-Lip Swab Cup: Lip Wear and Replacement Matching
When replacing an MV swab cup, compare the full multi-lip profile: lip count, spacing, outside diameter, overall height and mounting bore. The 2-3/8, 2-7/8 and 3-1/2 inch catalogue references are not a complete dimensional specification. Provide the actual tubing bore, restrictions and mandrel drawing for fit confirmation.
Check each lip for cuts, uneven wear or permanent distortion after use. Sand-laden fluid and damaged tubing can affect lip wear; describe these conditions when requesting a replacement compound. Color alone does not identify the rubber grade, hardness or fluid compatibility.
Specify whether the existing cup uses a steel or aluminum bushing and provide the mounting dimensions. Keep MV replacement requirements separate from the TA, V, TUF and NUF profiles shown in this catalogue. Cup quantity and operating load must follow the swab assembly specification.
| Part Name |
MV Style, TA style, TUF style, NUF style and V style |
| Environment |
oil, gas, gas condensate |
| Available Material |
FKM, HNBR or nitrile options; supporting core specified by cup drawing
|
MV swab cups use a multi-lip rubber profile supported by a bushing. Match the lip dimensions and supporting core to the tubing bore and swab assembly.
Shanghai Qinuo supplies swab cups in MV and other profiles. Nitrile and alternative compounds are selected for the application; provide the cup drawing or sample and operating conditions for replacement matching.
Other relative rubber products:
Application environment: oil, gas, gas condensate.
