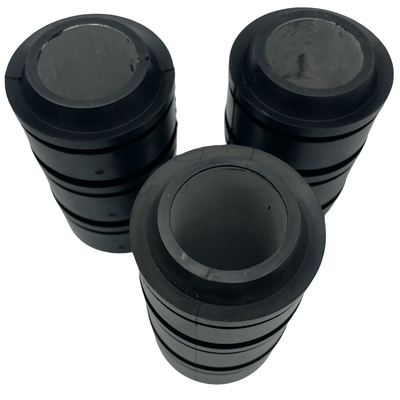

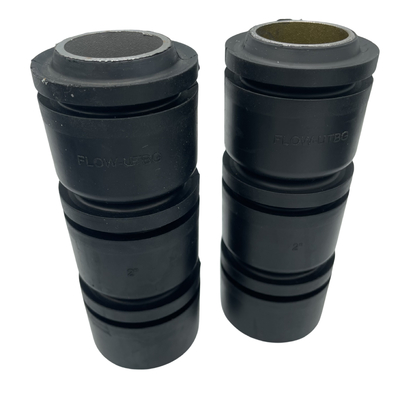

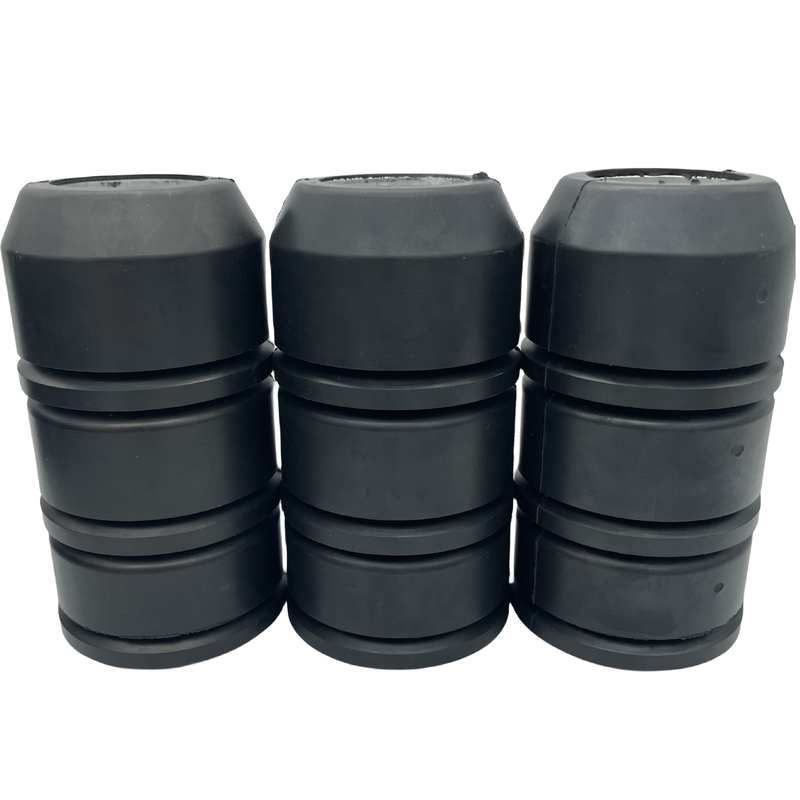

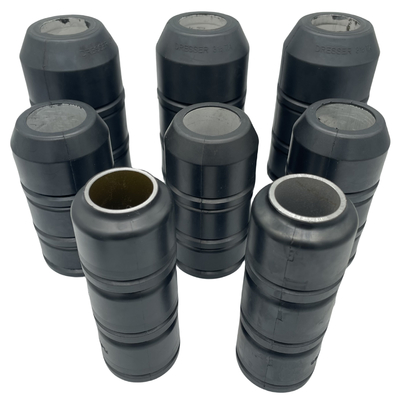

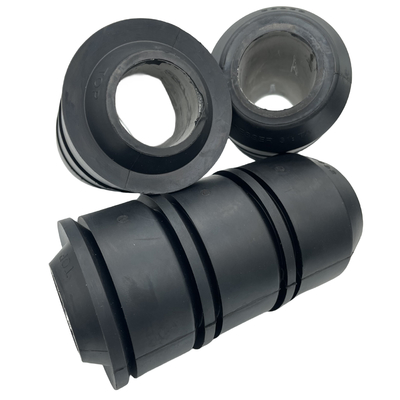

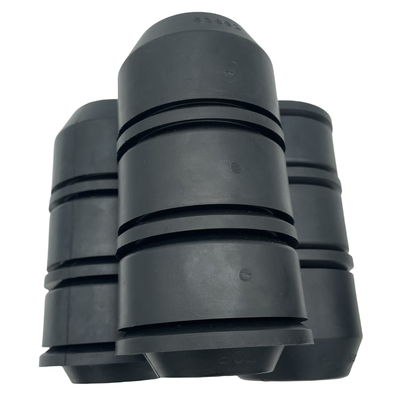

TA Style Swab Cups with Steel or Aluminum Bushings
Shanghai Qinuo supplies TA-style swab cups for medium-load oilfield fluid lifting. Steel and aluminum bushing options are listed below. Match the selected cup outside diameter, bore and bushing construction to the mandrel and actual tubing dimensions before ordering.
TA Swab Cup Bushing and Size Selection
The size table lists steel and aluminum core options with the same displayed cup dimensions for each nominal size: 2-3/8 inch has 1.992 inch cup OD and 1.120 inch cup ID; 2-7/8 inch has 2.431 inch OD and 1.370 inch ID; 3-1/2 inch has 2.985 inch OD and 1.370 inch ID. Keep the core material as a separate order requirement and verify the selected dimensions against the assembly drawing.
Send the tubing bore, mandrel dimensions, required bushing material, cup quantity and replacement drawing or sample. For medium-load selection, include fluid density, lifting cycle, suspended solids and temperature. The duty description is not a numerical load rating; confirm allowable loading for the complete tool assembly.
| Nom. OD (inch) |
Core and Description |
Cup OD |
Cup ID |
| 2-3/8" (2") |
Aluminum Core Swab Cup |
1.992" |
1.120" |
| 2-3/8" (2") |
Steel Core Swab Cup |
1.992" |
1.120" |
| 2-7/8" (2-1/2") |
Aluminum Core Swab Cup |
2.431" |
1.370" |
| 2-7/8" (2-1/2") |
Steel Core Swab Cup |
2.431" |
1.370" |
| 3-1/2" (3") |
Aluminum Core Swab Cup |
2.985" |
1.370" |
| 3-1/2" (3") |
Steel Core Swab Cup |
2.985" |
1.370" |
For TA-style replacement, specify the rubber compound and bushing material with the size designation. Nitrile and alternative compounds require review against the fluid, temperature and wear conditions. A similar nominal tubing size does not establish compatibility with another swab-cup profile.
Available types of Swab cups:
TA style: TA is a medium-load profile with a steel or aluminum bushing, subject to the selected size and drawing. Confirm tubing clearance, mandrel fit and compound before substituting it for a V-series cup.
MV style: MV is a multiple-upturned-lip profile. Specify the bushing material, cup dimensions and fluid conditions when comparing MV with V-series options; matching nominal size alone does not establish interchangeability.
V style: V-series selection includes lip geometry, duty designation and core construction. For sandy fluids, report sand concentration and particle size together with tubing condition and lifting cycle. Confirm the required cup count with the tool assembly specification.
For frac-fluid service, specify tensile-strength, abrasion and fluid-compatibility requirements for the selected rubber compound. Request applicable test data rather than selecting a cup from a general performance claim.
TUF style: TUF is an internally reinforced profile. Review temperature, tubing condition and load requirements against the exact construction and compound before selecting it.
NUF style: NUF is a heavy-load profile with a rubber body and specified bushing construction. Confirm bore fit, bushing material and operating requirements for the chosen size.
| Part Name |
MV Style, TA style, TUF style, NUF style and V style |
|
Environment
|
oil, gas, gas condensate
|
|
Available Material
|
Rubber compound and bushing material to the selected profile and drawing; confirm any nitrile, HNBR or FKM requirement.
|
