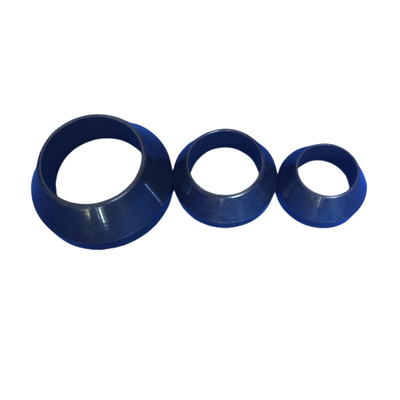

Custom NBR and HNBR Packer Cups for 3.5, 4.5 and 5.5 Inch Applications
![]()
Standard packer cups types:
Wire packer cups:Wire-reinforced cups act as directional seals. Match insert geometry, lip orientation and reinforcement to the tool drawing and actual bore. Single, dual or multiple-cup arrangements require confirmation for the intended pressure direction.
Heavy-duty packer cups:Heavy-duty cups may use a double-basket reinforcement design for repeated movement such as well washing. Specify basket geometry, metal treatment, rubber compound and mounting details; the construction needs its own assembly rating.
All-rubber packer cups:All-rubber cups have no wire reinforcement in the cup body. Confirm lip profile, compound and any separate insert against flexibility, fluid exposure and wear requirements.
Threaded packer cups:Threaded cups connect through a specified insert. Provide thread form, size and engagement. Steam service needs compound-specific qualification; suitability for high-pressure washing must not be assumed.
For nominal 3.5, 4.5 or 5.5-inch applications, provide actual tubing or casing inside diameter and the tool drawing. Broader applications from 1-1/4-inch tubing through 7-inch casing and custom sizes require separate geometry review.
Features of the rubber oil packer cups:
1) Define differential pressure, temperature and fluid composition for the selected compound.
2) Approve cup profile, mounting interface and reinforcement where used.
3) Confirm finished dimensions and tolerances for each nominal application size.
4) A requested 150°C (302°F) pressure test needs an agreed fixture, compound and acceptance limits.
5) Specify loading range, temperature and dwell times for any 30-cycle requirement.
6) Large cups, including a requested 30-inch diameter, require manufacturing and drawing review.
| Operating Pressure |
35 MPa application requirement; confirm compound and complete assembly rating |
|
Environment |
oil, gas, gas condensate |
|
Available Material |
NBR or HNBR; FKM alternative subject to compound and service review |
Custom NBR and HNBR packer cups are defined by an approved drawing or sample for the intended oilfield tool. Nominal 3.5, 4.5 and 5.5-inch designations identify the application size; each needs finished cup dimensions, mating bore and mounting requirements before production.
We manufacture both Wire Skeleton / Wire Mesh / Wire Frame Packer Cups and Rubber Packer Cups without any mesh.
Drawing-based customization covers cup geometry, compound and reinforcement requirements for the specified assembly. Identify the part revision and whether the order includes inserts or mounting hardware. Drillability and zonal-isolation performance need complete-tool confirmation.
Other relative rubber products:
![]()
Packing and shipment :
1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.
2: Air shipment: air port to air port or air port to door.
3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.
![]()
2020 China Shanghai CIPPE exhibition
![]()
Preparing a Custom Packer Cup Drawing
Show finished outside and inside diameters, overall height, working lip profile and mounting features with tolerances. Include reinforcement or insert details and indicate the pressure direction and installed orientation.
When using an original sample, state whether it is new or used. Supply the mating bore and tool details and identify wear or deformation; sample measurements should not automatically replace original design dimensions.
Include required quantity, compound, hardness, fluid composition and the pressure-temperature envelope. A requested 220°C exposure needs compound and assembly qualification. Agree sample approval, inspection dimensions and test documentation before production.
Welcome to contact us for more information about the rubber oil packers.
