| Place of Origin: | Shanghai, China |
| Brand Name: | SHQN |
| Certification: | ISO 9001 |
| Model Number: | 3-inch Fig 1502 narrow-style swivel joint kit; confirm equipment reference |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | EXW US$ 1-3 |
| Packaging Details: | CARTONS PACKING |
| Delivery Time: | 20DAYS |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 10000PCS PER WEEK |
| Material: | NBR, HNBR Or FKM Grade By Individual Seal Specification | Hardness: | Original 80 Shore A Reference; Confirm Each Component Specification |
|---|---|---|---|
| Using: | Oil Gas Field | Other Sizes: | AS568 Only For Specified O-rings; Other Parts By Equipment Drawing |
| Color: | Black Or Customized Color | Key Words: | 3 Fig 1502 Narrow Swivel Joint Repair Kit |
| Highlight: | 1502 Narrow Swivel Joint Repair Kit,3 Fig Swivel Joint Repair Kit,Swivel Joint O Ring Rubber Seal |
||

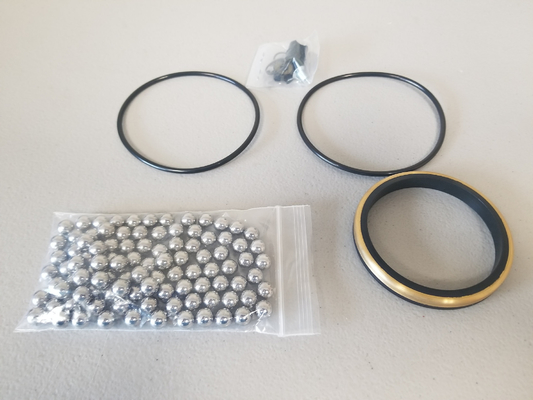

3-Inch Figure 1502 Narrow-Style Swivel Joint Repair Kit
This enquiry covers replacement parts for the stated 3-inch Figure 1502 narrow-style swivel joint reference. Confirm the manufacturer, exact style and drawing revision; nominal connection size does not define individual seal dimensions.
| Order information | Details to provide |
|---|---|
| Equipment identity | Manufacturer, narrow-style reference, Figure 1502 and drawing revision. |
| Seal geometry | Part numbers, profiles, dimensions and quantities from the equipment parts list. |
| Compound | NBR, HNBR or FKM grade, target Shore A hardness, fluid and temperature conditions. |
| Packing and labels | Kit reference, component identification and required quantities per package. |
Confirm non-rubber components separately against the agreed kit list. AS568 applies only to specified O-rings. The kit has no independent pressure rating. Follow equipment manufacturer inspection, assembly and testing procedures. ISO 9001 relates to our quality management system.
![]()
Related Wireline O-Rings and Kits
Shanghai Qinuo accepts related wireline adapter kit enquiries from equipment drawings and parts lists. Confirm compound grade and temperature requirements for each kit; this related range does not define the contents of the swivel joint kit above.
=>Durometer of o rings to be specified by customer.
=>Customization is also available for customers that require non-standard compounds, additional or customer specific metal or other non-rubber parts.
=>Customer labeling also available.
Related wireline packaged kit references (ordered separately):
• #10 setting tool - With burst disk
• #20 setting tool - With burst disk
• AP Compact Setting Tool Kit
• Grease Tubes Seal Kit
• 3 1/2” Shorty Kits
• 3 - 1/8" Weight Bar Kit
• #10 Baker Firing Head Kit
• #20 Firing Head Kit
• #20 BP3.SEC kits
• #10 BP3.SEC kits
• T-BRT redress kit
• T-1 Set
• GC Stripper Head Redress Kits
Note: Bleeder disc options apply to the relevant wireline kit; confirm its specified bill of materials.
![]()
Wireline Component Parts:
1) Pressure Relief Disc, ZD Plated (application:rupture(bleeder) Disc)
2) Rubber Push Pin -black
3) Nylon Push Pin -natural
4) Retainer Nut, Steel, ZD Plated (Flat, beveled also available) (application: retainer nut)
5) Threaded Steel Plug, w/ Lathe Cut (application:5" port plug)
6) Threaded Brass Plug (application: setting tool plug )
![]()
SHQN Other relevant products
Oilfield Plug Valve Seals
products data sheet
| Available sizes | 1" 2" 3" |
| Available material | NBR HNBR FKM with Brass or SS backside |
| Hardness | 80 Shore A or 90 Shore A |
| Types | Y type |
Hammer union seals:
Hammer Union Seals are used in hammer union-style pipe connections to establish flow lines and prevent leakage.
Available size : 1", 2", 3", 4" and 5"
Material enquiries for related hammer union seals include NBR, HNBR and FKM grades or PTFE designs by specification. Review the actual fluid and temperatures with the selected grade. HNBR alone does not establish sour-gas qualification. Brass or stainless backup arrangements must match the approved union drawing.
Swab cups:
Related swab cups are separate products and are not included in this 3-inch Figure 1502 narrow-style swivel joint kit. During fluid recovery, the selected cup seals against the tubing or casing bore. Specify the cup profile, tubing inside diameter, mandrel bore, core arrangement and compound for the actual fluid exposure and permitted fluid-column load. Confirm cup and mandrel operating limits before selecting a light- or heavy-load configuration.
MV Style, TA style, TUF style, NUF style and V styles.
Rubber o rings or kits
Shanghai Qinuo accepts AS568 O-ring enquiries by dash number and compound grade. Confirm tooling and availability for the exact sizes.
Color, hardness, packing all can be custom making.
Other oil field rubber and plastic fittings:
Rubber packer elements
Thread protectors
Flow tubes
Other parts by drawing.
![]()
Our Service capability:
| Customized services | Plastic & Rubber bonding | Mold Design | ||||||
| Customized extrusion | Extrusion and bonded gaskets | Mold Production | ||||||
| Injection Molding | Self Adhesive rubber profile | Customized Package | ||||||
| Sheet Cutting | Rubber Complex Intake Hose | Problem Solving | ||||||
| Standard Size extrusion | Reinforced rubber tubes | Assembly | ||||||
| Special Compound design | Rubber Solution Suggestion | Sourcing | ||||||
| Rubber& Metal bonding | ||||||||
Welcome to contact us!
Contact Person: Cora Chen
Tel: +8619065106125
