Wireline Adapter Kits #10 #20 Setting tool 3.5 Shorty Kits Redress kits Compact Setting Tool Kit

Wireline Adapter Seal Kits for #10, #20, Compact and Shorty Tool Enquiries

Setting Tool and Shorty Redress Kits: Ordering Checklist

The #10, #20, compact setting-tool and 3-1/2-inch Shorty kit references identify separate tool enquiries. Confirm the manufacturer and revision for each; do not use a shared size reference alone to approve a complete kit.

List each O ring size, compound, hardness and quantity, plus any specified backup or non-rubber parts. Where a burst or bleeder disc is required, confirm its drawing and specification for the particular tool rather than assuming inclusion in every kit.

Agree the bill of materials, dimensional inspection, material documentation and separate kit labels before production. The listing gives 20 days as a delivery reference; confirm the schedule for the actual configurations and quantities.

Tool-Specific Wireline Redress Kit Selection

Shanghai Qinuo offers wireline adapter and setting-tool seal kit enquiries. Select the particular #10, #20, compact or 3-1/2-inch Shorty tool configuration and provide its manufacturer, model revision and component list for matching.

Specify compound, hardness and tolerances for each rubber component. Confirm the actual compound for the fluid, continuous and peak temperature, pressure and any sour-service requirements.

Custom kits can include agreed non-standard compounds and specified metal or non-rubber parts. List the dimensions and quantity of each component in the bill of materials before sample approval.

Customer labeling can identify the tool model, kit revision, compound and component quantities. Confirm whether related tool kits should be packed and labeled separately.

Wireline Tool Kit Options — Confirm Contents for Each Tool:

• #10 setting tool - With burst disk

• #20 setting tool - With burst disk

• AP Compact Setting Tool Kit

• 3 1/2” Shorty Kits

• #20 Firing Head Kit

• #20 BP3.SEC kits

• #10 BP3.SEC kits

• T-BRT redress kit

• T-1 Set

• GC Stripper Head Redress Kits

Oilfield rubber o ring seal kits products data sheet

Other relative products:

Hammer union seals:

Hammer Union Seals are used in hammer union-style pipe connections to establish flow lines and prevent leakage.

Available size : 1", 2", 3", 4" and 5"

Related hammer union seal enquiries can specify NBR, HNBR, FKM or PTFE, with brass or stainless-steel reinforcement where applicable. Confirm dimensions and compound for the actual connection; sour-gas suitability requires confirmation for the supplied compound and operating conditions.

Swab cups:

These are swab cups out of molds we produced. They are offered in various designs to meet many well conditions seen in the oil and gas industry. The swab cup is a rubber part on a special rod which forms a seal between the swab and the wall of the tubing/casing. These swab cups are used for a variety of swabbing applications including both light and heavy loads, as well as shallow and deep wells

MV Style, TA style, TUF style, NUF style and V styles.

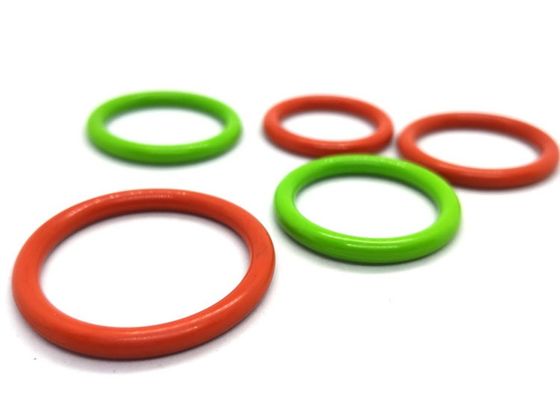

Rubber o rings or kits

Shanghai Qinuo offers AS568 O ring size enquiries. Provide individual ring sizes, compound, hardness and dimensional tolerances for the requested kit.

Color, hardness and packing requests can be reviewed against the actual component list.

Other oil field rubber and plastic fittings:

Rubber puckers

Thread protectors

Flow tubes

Other fittings by enquiry.

About Us:

Shanghai Qinuo Industry Co. Ltd

provides rubber, plastic and machined-part enquiries for equipment manufacturers and maintenance teams. Include drawings, quantities and service information with your request.
Design and production enquiries can cover rubber seals, plastic parts and machined components. Agree the geometry, compound or material, and inspection criteria for the actual project.
For manufacturing and tooling enquiries, provide drawings, quantities and materials. Confirm the production process and sample inspection requirements for the specified components.
Our quality management system is ISO 9001 certified. Confirm requested material, compliance and inspection documentation for the actual supplied compound and components.

Service Capability Enquiries — Scope Agreed for the Order:

Send the tool manufacturer, model revision, component list, individual seal dimensions and service conditions with your enquiry.
