| Place of Origin: | Shanghai, China |
| Brand Name: | SHQN |
| Model Number: | Y Type |
| Minimum Order Quantity: | 1000 |
|---|---|
| Packaging Details: | CARTONS PACKING |
| Delivery Time: | 20DAYS |
| Payment Terms: | L/C, D/A, T/T, Western Union |
| Supply Ability: | 10000PCS PER WEEK |
| Material: | NBR Or HNBR By Approved Component Specification | Hardness: | 80 Or 90 Shore A Options; Specify Selected Value |
|---|---|---|---|
| Using: | For Plug Valve | Other Sizes: | 1-inch / 2-inch / 3-inch References By Valve Drawing |
| Types: | Y Type | Color: | Black Or Customized Color |
| Key Words: | Custom Y Type Plug Valve Seal, FIG 1502, NBR HNBR | ||
| Highlight: | HNBR Plug Valve Seals,FIG 1502 Plug Valve Seals,Y Type Plug Valve Seals |
||
Custom Y-Type Plug Valve Seals - NBR and HNBR for Specified FIG 1502 Assemblies
Custom Plug Valve Seal Selection Product Data Sheet
| Nominal valve sizes | 1-inch, 2-inch and 3-inch references; identify valve manufacturer, model and seal drawing. FIG 1502 alone does not define the internal seal geometry. |
| Rubber and backing options | NBR or HNBR specified by component and service conditions. Brass or stainless steel backing according to the valve drawing; FKM alternatives quoted separately. |
| Hardness | 80 or 90 Shore A options; specify the selected hardness and tolerance for each component. |
| Types | Y-type profile matched to valve groove, lip orientation and backing dimensions. |

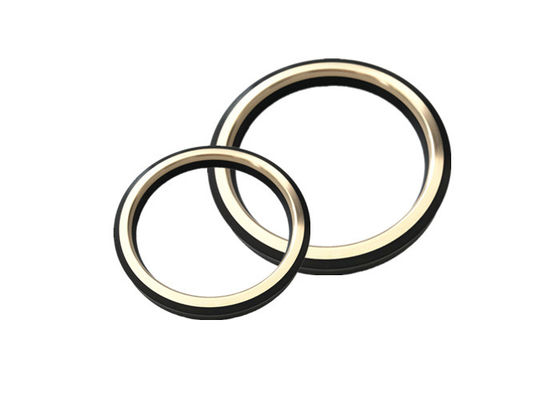

Plug valve seal and kit pictures for reference - custom dimensions and kit contents require an agreed drawing
![]()
![]()
Other products from us:
Hammer union seals:
All available Hammer Union seals list :
1" HAMMER UNION LIP SEAL RING, BUNA
1-1/2" HAMMER UNION LIP SEAL RING, BUNA
2" HAMMER UNION LIP SEAL RING, BUNA
3" HAMMER UNION LIP SEAL RING, BUNA
1" HAMMER UNION LIP SEAL RING,
1-1/2" HAMMER UNION LIP SEAL RING,
2" HAMMER UNION LIP SEAL RING,
3" HAMMER UNION LIP SEAL RING,
2" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING
3" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING
4" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING
2" HAMMER UNION SEAL RING, W/ BRASS BACKING
3" HAMMER UNION SEAL RING, W/ BRASS BACKING
4" HAMMER UNION SEAL RING, W/ BRASS BACKING
2" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING
3" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING
4" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING
Swab cups:
All Available types of Swab cups:
TA-style swab cups are a separate fluid-lifting product range. Specify tubing size, bushing configuration, load and material requirements.
MV-style swab cups use a multi-lip profile. Confirm the selected configuration against tubing dimensions and fluid conditions.
V-style swab cups are listed separately for swabbing applications. Provide sand and load requirements for selection.
Specify fluid chemistry, temperature and abrasion requirements when selecting swab cup material.
TUF-style swab cups use internal reinforcement. Match the configuration to tubing condition and operating load.
NUF-style swab cups are a separate heavy-load range. Confirm tubing size, bushing and service requirements before ordering.
Rubber o rings or kits
For AS568 O-rings, specify dash number, compound and hardness. Custom metric rings require inner diameter, cross-section and tolerances.
Specify color, hardness and packing requirements with the drawing.
Other oil field rubber and plastic fittings:
Rubber puckers
Thread protectors
Flow tubes
Ect.
![]()
For custom Y-type plug valve seals, provide the valve model, FIG reference, component drawing and quantity. Include NBR or HNBR compound, hardness, backing, fluid and temperature requirements. Confirm any kit contents separately. A connection figure or nominal size alone does not establish seal interchangeability or a pressure rating.
Contact Person: Stary Xu
Tel: 86-18001969180
