1502/1002 HNBR 90 Shore A Y Type 1" 2" 3" Valve Seal Kit

HNBR 90 Shore A Y-Type Plug Valve Kits - FIG 1002 and 1502 Assembly References

Valve Kit Identification and ReorderingProduct Data Sheet

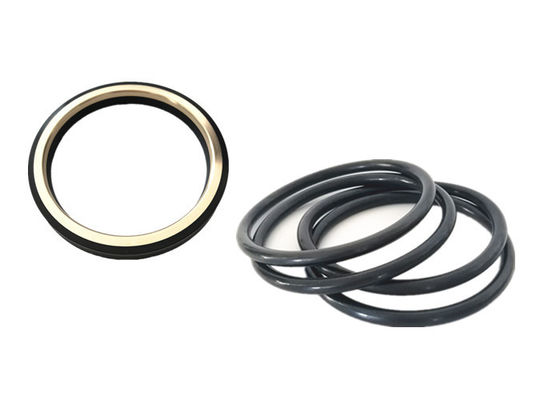

Plug valve component pictures for reference - use the approved kit list for quantities and configuration

Other products from us:

Hammer union seals:

Hammer Union Seals are used in hammer union-style pipe connections to establish flow lines and prevent leakage.

Available size : 1", 2", 3", 4" and 5"

Hammer union seals are a separate connection component range. Specify figure, size, compound and backing requirements. Review service compatibility and any sour-service qualification against compound-specific evidence.

Swab cups:

These are swab cups out of molds we produced. They are offered in various designs to meet many well conditions seen in the oil and gas industry. The swab cup is a rubber part on a special rod which forms a seal between the swab and the wall of the tubing/casing. These swab cups are used for a variety of swabbing applications including both light and heavy loads, as well as shallow and deep wells

MV Style, TA style, TUF style, NUF style and V styles.

Rubber o rings or kits

For AS568 O-rings, provide dash number, compound and hardness. Custom metric rings require dimensions and tolerances.

Specify color, hardness and packing requirements per component.

Other oil field rubber and plastic fittings:

Rubber puckers

Thread protectors

Flow tubes

Ect.

Shanghai Qinuo Industry Co. Ltd

provides rubber component design and production services for specified drawings and application requirements.
Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.
Quality management is supported by ISO 9001. Request material and inspection documentation for the selected components.

Our Service capability:

For repeat HNBR valve-kit orders, retain the valve model, FIG reference, assembly revision and approved component list. State quantities, hardness, backing and any separately packed spare seals. Review changes in fluid, temperature or pressure cycling before approving substitutions. FIG 1002 and 1502 references do not establish that the internal kits are interchangeable or assign a seal pressure rating.
