Buna-N, FKM and HNBR O-Rings and Metal-Backed Union Seal Rings
Rubber O-Rings and Brass- or Stainless-Steel-Backed Seal Options
Product configurations and ordering information
- O-rings and hammer union seal rings are offered in specified elastomer compounds. For H2S-containing service, provide the gas composition, temperature, pressure and required material qualification before selecting a seal.
- Match each seal to the equipment figure, size, manufacturer reference and groove drawing.

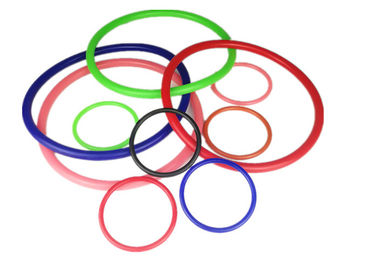

- Circular O-rings: specify inside diameter, cross-section, compound and Shore A hardness.
- Lip seal rings: specify profile dimensions, orientation and mating component.
- Brass-backed seal rings: specify rubber compound, metal dimensions and union reference.
- Stainless-steel-backed seal rings: specify metal grade, rubber compound and assembly drawing.
AS568 O-ring enquiries: provide the dash number, elastomer compound, hardness and quantity for each item; packing can be agreed with the order.
SHQN supplies standard-size and custom O-rings, together with seal rings for specified union designs. Plain O-rings and metal-backed seal rings are separate constructions and should be ordered against their own dimensions and part references.
Dimensions are defined by the AS568 dash number or component drawing. For custom rings, state inside diameter, cross-section or seal profile, units and tolerances.
Buna-N (NBR), FKM and HNBR are separate compound options. Selection depends on contacting media, temperature, pressure and the equipment specification.
Figure 1502 hammer union seal enquiries may cover nominal 1, 1-1/2, 2, 3 and 4 inch connections as listed. Nominal connection size is not the seal inside diameter; provide the exact union reference and drawing to confirm fit.
| Items |
Types |
| O rings |
AS568 dash number with specified compound and hardness |
| Hammer union seals |
NBR, HNBR or FKM seal ring; brass or stainless-steel backing when specified by the design |
SHQN O-ring and seal-ring packing reference: identify each pack by part number, size, compound and quantity. Pressure suitability is determined for the complete seal and equipment assembly; request the applicable rating and documentation for your configuration.
Qinuo Equipment list:
| 20 Cavities Rounding Comounding Machines |
Automatic Powder Distribution Machine |
Automatic Oil Distribution Machine |
8 Sets of Open Cell Mixers
( From 6 inches to 16 inches) |
5 Layers of Material Cooling Machine |
3 Sets of 55kq Closed Cell Mixers |
| 2 Sets of Material Preform Machine |
3 Sets of Silicone Vacuum Mixer |
65 mm Diameter Silicone Extrusion Line |
| JG-65mm Diameter Silicone Extrusion Line |
75mm Diameter Silicone Extrusion Line |
90 mm Diameter General Rubber
Extrusion Line |
75mm Diameter General
Rubber Extrusion Line |
Fiber Reinforced Rubber Extrusion Line |
Vulcanizing Tank |
| Adhesive Machin |
28 Sets of Small Vulcanizing Molding Machines(From 50Ton to 100 Tons) |
25 Sets of 200 Ton Vulcanizing
Molding Machine |
4 Sets of 200 Ton Injection
Compression Machine |
2 Sets of 200 Ton Vacumm
Compression Machine |
2 Sets of 250 Ton Vulcanizing
Molding Machine |
2 Sets of Horizontal Molding Machine |
4 Sets of 300 Ton Vulcanizing
Molding Machine |
2 Sets of 300 Ton Injection
Compression Machine |
Punching Machine |
Tensile Strength Tester |
| Brittleness Tester |
Hardness Tester |
Thickness Gauge |
| Mooney viscometer |
Rheometer Tester |
Analytical Balance |
| Electrical Resistance Measurer |
Density Tester |
2 sets Aging Testing Oven |
Qinuo Material processing range:
Silicone |
SBR |
ACM |
PE |
| EPDM |
NBR |
IIR |
PC |
| Neoprene |
Silicone Sponge |
CSM |
PP |
| Urethane |
Closed Cell Sponge |
ABS |
PA |
| |
HNBR |
Hard PVC |
TPE |
| NR |
ECO |
Soft pvc |
TPV |
| POM |
TPU |
|
|
Qinuo Custom Capabilties:
| Customized services |
Plastic & Rubber bonding |
Mold Design |
| Customized extrusion |
Extrusion and bonded gaskets |
Mold Production |
| Injection Molding |
Self Adhesive rubber profile |
Customized Package |
| Sheet Cutting |
Rubber Complex Intake Hose |
Problem Solving |
| Standard Size extrusion |
Reinforced rubber tubes |
Assembly |
| Special Compound design |
Rubber Solution Suggestion |
Sourcing |
| Rubber& Metal bonding |
