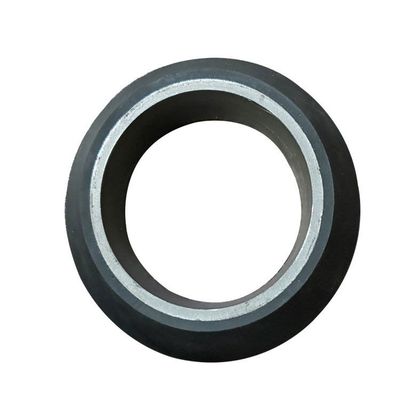

China Manufacturer Custom Made Custom Metal-Core V-Series Rubber Swab Cups
For a custom V-series rubber swab cup, confirm the required core material, lip profile and component drawing. The size table shown here describes steel-core configurations; an aluminum-core version requires its own confirmed dimensions and material specification. Provide cup OD, ID, height, core length and mandrel fit together with the actual tubing bore. Include produced fluid, suspended solids, temperature and expected load so the rubber compound and rubber-to-metal bond can be selected for the intended service.
For frac-fluid service, confirm the fluid formulation, additives, solids content, temperature and required abrasion performance before selecting a compound.
| Size reference (inch; confirm drawing) |
Core and Description |
Cup OD |
Cup ID |
| 1.900" ( 1-1/2" ) |
Steel Core Swab Cup |
1.530" |
0.902" |
| 2-3/8" ( 2" ) |
Steel Core Swab Cup |
1.980" |
1.120" |
| 2-7/8" ( 2-1/2" ) |
Steel Core Swab Cup |
2.410" |
1.334" |
| 3.850" |
Steel Core Swab Cup |
3.850" |
2.495" |
| 3.900" |
Steel Core Swab Cup |
3.900" |
2.495" |
| 4-1/2" |
Steel Core Swab Cup |
4.062" |
2.495" |
| 4.610" |
Steel Core Swab Cup |
4.610" |
2.495" |
| 4.720" |
Steel Core Swab Cup |
4.720" |
2.495" |
| 4.850" |
Steel Core Swab Cup |
4.850" |
2.495" |
| 5-1/2" |
Steel Core Swab Cup |
4.970" |
2.495" |
| 7" |
Steel Core Swab Cup |
6.450" |
3.500" |
| 4-1/2" |
Steel Core, Heavy Duty Swab Cup |
4.062" |
2.495" |
All Available types of Swab cups:
TA style: A medium-load cup built around a steel or aluminum bushing. Confirm the tubing bore, mandrel fit and required load range before selecting the cup; compound and dimensions must match the actual well conditions.
MV style: A multiple-lip cup with a steel or aluminum bushing. Confirm the lip profile and fit for the tubing restrictions and suspended solids present; choose the rubber compound for the produced fluid and temperature.
V style: An upturned-lip profile offered in different configurations. This listing specifies a steel core; confirm the drawing rather than assuming the construction of an all-rubber V cup. Cup arrangement, load response and sand-bearing fluid suitability depend on the actual design and operating conditions.
For frac-fluid service, confirm the fluid formulation, additives, solids content, temperature and required abrasion performance before selecting a compound.
TUF style: A cup with internal metal reinforcement to help maintain its profile. Confirm tubing condition, bore restrictions, required load and compound temperature limits before selection.
NUF style: A heavy-load rubber cup bonded to a steel or aluminum bushing. Confirm the exact size, bushing dimensions, mandrel connection and fluid conditions for the intended swabbing operation.
| Part Name |
MV Style, TA style, TUF style, NUF style and V style |
| Environment |
oil, gas, gas condensate |
| Available Material |
Nitrile (NBR), HNBR or FKM options; reinforcement and compound per confirmed cup drawing
|
Select cup geometry and compound for the actual tubing bore and well-fluid conditions; operating suitability must be confirmed for the required configuration.
When requesting an aluminum-core alternative to a listed steel-core cup, identify the exact part reference and required bushing geometry. Confirm dimensional tolerances and bonding requirements before manufacture. Equal cup OD and ID do not by themselves establish equivalent performance, interchangeability or load capability. Drawings or samples can be used to define a custom configuration.
Other relative rubber products:
Packing and shipment :
1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.
2: Air shipment: air port to air port or air port to door.
3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.
Shanghai Qinuo Industry Co. Ltd was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.
Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.
We adopt comprehensive quality management system, production is managed under an ISO 9001 quality management system, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, New Zealand, Australia and other countries and regions.
Mould corner view for the rubber parts:
Why Choose Our Top-Quality Swab cups?
We understand that no matter what industry you’re in, one thing remains the same: You need top-quality products to ensure the safety of your people, the longevity of your equipment and the quality of your product.
If you have to delay operations due to any material defects, it can place a huge financial burden on your business. For example, not being able to operate an oil well for a day can run into the tens of thousands of dollars in costs. Similarly, if you’re in the agricultural business, postponing anything from tilling and planting to harvesting simply isn’t an option, as it will impact the product.
That’s why we always look at things from our clients’ perspective. We always appreciate that having top-quality products delivered in a timely manner isn’t simply an option: It’s a must.
Welcome to contact us for more information about the swab cups.
