Silicone O-Rings in AS568 and Custom Drawing Sizes
Product Description
SHQN supplies silicone O-rings for standard-size replacement and custom sealing designs. For an AS568 inquiry, provide the dash number and required standard revision; for a custom ring, send inside diameter, cross-section and tolerances.
Confirm the complete ring dimensions before ordering. A catalog range does not identify a specific AS568 size or establish the manufacturing range of every silicone compound.
Silicone is the material focus of this listing. FKM, NBR and EPDM are separate compound selections requiring their own compatibility review.
| Material: |
Silicone per specified compound; other materials by separate application review. |
| Hardness |
Shore A hardness per selected silicone compound and approved specification |
| Mode of Production |
Moulding process per ring dimensions and compound; joined rings require separate construction specification |
| Production Capabilities |
Wide ranges of our machines including 150T,200T,250T, 300T and 500T |
| Size/Color |
AS568 size or custom drawing dimensions; color per agreed sample and compound specification |
Application
Application of the rubber o ring:
A: Standard-size replacement in specified housings; confirm groove dimensions and ring squeeze against the application drawing.
B: Custom joints and connections; provide groove width, depth and mating clearances with the ring dimensions.
C: Confirm medium, temperature, pressure and motion before selecting silicone. Dimensional fit alone does not establish fluid compatibility or operating limits.

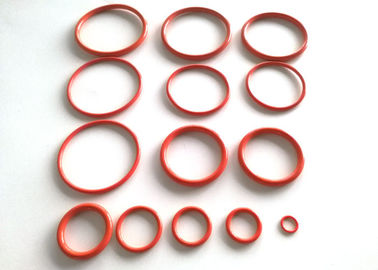

More Pictures of the rubber O rings:
Structure and sizes:
Rubber o rings samples corner view:
One Stop service
For replacement, provide the dash number or measured drawing dimensions. For a new design, include groove details, tolerances, medium, temperature and pressure with the inquiry.
Qinuo Equipment list:
| 20 Cavities Rounding Comounding Machines |
Automatic Powder Distribution Machine |
Automatic Oil Distribution Machine |
8 Sets of Open Cell Mixers
( From 6 inches to 16 inches) |
5 Layers of Material Cooling Machine |
3 Sets of 55kq Closed Cell Mixers |
| 2 Sets of Material Preform Machine |
3 Sets of Silicone Vacuum Mixer |
65 mm Diameter Silicone Extrusion Line |
| JG-65mm Diameter Silicone Extrusion Line |
75mm Diameter Silicone Extrusion Line |
90 mm Diameter General Rubber
Extrusion Line |
75mm Diameter General
Rubber Extrusion Line |
Fiber Reinforced Rubber Extrusion Line |
Vulcanizing Tank |
| Adhesive Machin |
28 Sets of Small Vulcanizing Molding Machines(From 50Ton to 100 Tons) |
25 Sets of 200 Ton Vulcanizing
Molding Machine |
4 Sets of 200 Ton Injection
Compression Machine |
2 Sets of 200 Ton Vacumm
Compression Machine |
2 Sets of 250 Ton Vulcanizing
Molding Machine |
2 Sets of Horizontal Molding Machine |
4 Sets of 300 Ton Vulcanizing
Molding Machine |
2 Sets of 300 Ton Injection
Compression Machine |
Punching Machine |
Tensile Strength Tester |
| Brittleness Tester |
Hardness Tester |
Thickness Gauge |
| Mooney viscometer |
Rheometer Tester |
Analytical Balance |
| Electrical Resistance Measurer |
Density Tester |
2 sets Aging Testing Oven |
Qinuo Material processing range:
Silicone
|
SBR |
ACM |
PE |
| EPDM |
NBR |
IIR |
PC |
| Neoprene |
Silicone Sponge |
CSM |
PP |
| Urethane |
Closed Cell Sponge |
ABS |
PA |
| |
HNBR |
Hard PVC |
TPE |
| NR |
ECO |
Soft pvc |
TPV |
| POM |
TPU |
|
|
Qinuo Custom Capabilties:
| Customized services |
Plastic & Rubber bonding |
Mold Design |
| Customized extrusion |
Extrusion and bonded gaskets |
Mold Production |
| Injection Molding |
Self Adhesive rubber profile |
Customized Package |
| Sheet Cutting |
Rubber Complex Intake Hose |
Problem Solving |
| Standard Size extrusion |
Reinforced rubber tubes |
Assembly |
| Special Compound design |
Rubber Solution Suggestion |
Sourcing |
| Rubber& Metal bonding |
Other relative rubber products for oil drilling use:
Moulded Rubber Products
Rubber Bonded with Metal Products
Extruded Rubber Products
Packing and shipping
1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.
2: Air shipment: air port to air port , or air port to door.
3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.
Our company
Shanghai Qinuo Industry Co. Ltd
was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.
Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.
Quality management follows ISO 9001. RoHS documentation is reviewed for the selected compound and order rather than assumed for every component.
The steps of the production:
FAQ
1. Why Choose Qinuo industry?
We provide them with one-stop service from R & D to production to satisfy their customization needs.
Production timing and shipping route are confirmed for the requested ring specification, quantity and destination.
2. What are the advantages of choosing Qinuo Industry?
a. Product quality assurance, delivery guarantee, good after-sales service
b. Cost-effective, fast development efficiency, professional operation with integrity
c. Agree dimensional inspection and any material, heat-aging or fluid-exposure requirements before production.
d. Lean production management mode.
e. Help customers develop and design new products.
f. Has rich experience in the design and processing of rubber products.
g. Qinuo Industry is a hightech enterprise in China with domestic and international invention patents technology and intellectual property.
3. What are the differences between Qinuo Industry and domestic peers?
1. Quality assurance: advanced product quality planning(APQP).
2. Qinuo Industry has rich experience in serving international large enterprises.
3. Has professional scientific research team of kinds of rubber material.
4. Has independent design, manufacturing and innovation ability of production equipment and molds.
5. Has engineer team who is responsible for the quality assurance system and quality control.
4. What is your advantage?
1. Has sound and mature supporting supply chain
2. Lower mold costs
3. High efficiency of development and design ability and short process time.
4. Cost effective and good service attitude.
5. More professional export sales staff who are all know rubber processing very well.
For standard or custom silicone O-rings, send the size designation or drawing and the intended sealing conditions.
We welcome custom make products, looking forward to your design drawing or orginal samples.
