| Place of Origin: | Shanghai, China |
| Brand Name: | SHQN |
| Certification: | ISO 9001 |
| Model Number: | OP |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | 0.3-1 |
| Packaging Details: | Carton packing |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000pcs per week |
| Size:: | Cup Applications 3.5/4.5/5.5 In; Bar Packer 2-3/8 To 3-1/2 In; Confirm Drawing | Material:: | NBR, HNBR Or FKM; Select Compound For Specified Fluid |
|---|---|---|---|
| Operating Pressure: | 35 MPa Requirement; Confirm Compound And Assembly Rating | Environment:: | Oil, Gas, Gas Condensate |
| Max Temperature:: | 120°C Requirement; Confirm Selected Compound | Color: | Black Or Custom Color |
| Black Or Custom Color: | Black Or Custom Color | ||
| Highlight: | packer oil and gas,rubber oil packer cup |
||
Rubber packer for oilfield and gas applications,series of Petrochemicals products
One Stop service
Send the tool drawing, fluid composition and operating requirements for review of a custom rubber packer part.
Rubber packer cups and bar packers for oil, gas and condensate service require separate geometry and material specifications. Include process-fluid composition, additives, cleaning chemicals and exposure duration when selecting NBR, HNBR or FKM. A compound must be reviewed for the complete operating envelope.
We manufacture both Wire Skeleton / Wire Mesh / Wire Frame Packer Cups and Rubber Packer Cups without any mesh.
Cup applications from 1-1/4-inch tubing through 7-inch casing require actual bore and finished-part dimensions. Nominal 3.5, 4.5 and 5.5-inch application sizes are not finished seal diameters. Bar-packer sizes below describe a separate range.
Features of the rubber oil packer cups:
1) Specify differential pressure and continuous and peak temperature.
2) Review the exact fluid formulation against compound data.
3) Match cup or bar-packer dimensions to the approved drawing.
4) A requested 150°C (302°F) test requires agreed compound, fixture, pressure and acceptance criteria.
5) A 30-cycle requirement needs defined loading and temperature conditions.
6) Large cups, including a requested 30-inch size, require drawing and manufacturing confirmation.
![]()
Welcome to contact us for more information about the rubber oil packers.
| Operating Pressure | 35 MPa application requirement; confirm compound and complete assembly rating |
| Environment | oil, gas, gas condensate |
| Available Material | NBR, HNBR or FKM; compound selection requires fluid and temperature review |
Bar Packer Dimensions and Hardness Options
Specify molding surface quality and permitted flash on sealing areas against the drawing. Inspection should confirm the finished part meets the agreed dimensional and surface requirements.Bar-packer options include 70, 80 and 90 Shore A and nominal sizes from 2-3/8 to 3-1/2 inches, subject to drawing confirmation. Select hardness against setting deformation, clearances and service conditions.
| Product name | Bar Packer Dimensions and Hardness Options |
| Material | NBR; HNBR or FKM alternatives subject to service review |
| Hardness | 70, 80 or 90 Shore A bar-packer options; other hardness requires specification |

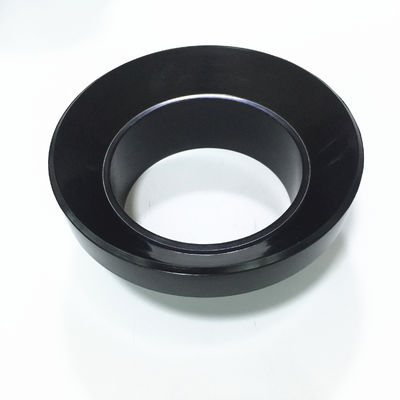

Detailed photos of rubber packer parts; identify the required construction on the order drawing
![]()
![]()
Cup seals and compression-set packers use different mechanisms and require their own mounting and setting dimensions. Drillability and zonal-isolation performance depend on the complete tool assembly and require separate confirmation.
Our products are widely used at all kinds of cars, machinery, home appliance, electronic products, electric appliance, stationery, computers, oil equipment, and hardware spare parts.
![]()
We also can provide oilfield rubber swab cup
The TA swab cup is a medium-duty, all-rubber variable lip cup that offers greater flexibility under lighter loads.
The MV swab cup is a light-duty, all-rubber cup with multiple flexible, upturned lips for sand-laden fluid applications. Confirm tool and tubing fit before ordering.
The V swab cup is a ring-type, single-lip, flexible, all-rubber cup molded on a steel bushing. It is ideal for lifting sand-laden fluids and for light-load swabbing. It is a single version of the MV swab cup.
The TUF swab cup is a flexible, synthetic rubber cup with spring steel reinforcing wires for heavy loads but is flexible enough for light or medium loads.
The UF swab cup is an all-purpose, synthetic rubber cup containing strong, flexible spring steel reinforcing wires.
The J swab cup is a durable, heavy-duty cup with a long, flexible lip and strong steel reinforcing wires which provide a good upstroke seal for lifting heavy loads.
The GW swab cup is a heavy, flexible, single-lip cup reinforced by spring steel wire. The oversized lip creates a good upstroke seal.
![]()
![]()
![]()
![]()
![]()
1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.
2: Air shipment: air port to air port , or air port to door.
3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.
![]()
![]()
Shanghai Qinuo Industry Co. Ltd
was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.
Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.
Our ISO 9001 quality management system supports manufacturing quality control. Specify material documentation, dimensional inspection and additional compliance requirements with the order.
![]()
The steps of the production:
![]()
1. What fluid data is needed?
Provide oil, gas or condensate composition, additives and cleaning chemicals.
State continuous and peak temperatures, exposure duration and decompression conditions.
2. How should the part be identified?
a. Tool model and part drawing or original sample.
b. Cup, bar packer or compression-element construction.
c. Finished dimensions and tolerances.
d. Mounting interface and pressure direction.
e. Reinforcement or insert details where used.
f. Compound and nominal hardness.
g. Approved part revision and required quantity.
3. What needs review for gas service?
1. Gas composition and contaminants.
2. Pressure and service temperature.
3. Decompression rate and cycling.
4. Compound-specific qualification requirements.
5. Agreed test conditions and acceptance limits.
4. What documents should be requested?
1. Approved drawing and material specification.
2. Dimensional inspection records.
3. Required compound or assembly test reports.
4. Part identification and traceability.
5. Packaging and handling requirements.
For rubber packer parts in oil, gas or petrochemical-related service, submit the exact fluid and operating conditions with the tool geometry for compound and assembly review.
Custom parts can be reviewed from drawings or original samples; confirm material, geometry and acceptance criteria before production.
Welcome to contact us for more information.
