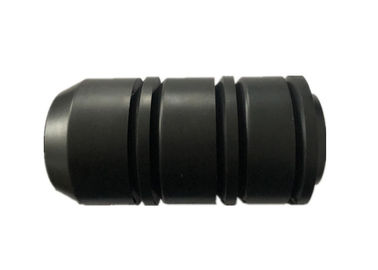

TA Style Rubber Oilfield Swab Cups Steel Core Wire Tubing 2-3/8" 2-7/8" 3-1/2"

TA-Type Steel-Core Rubber Swab Cups for 2-3/8-inch, 2-7/8-inch and 3-1/2-inch Nominal Tubing

For this TA-type steel-core swab cup listing, confirm the steel bushing geometry, mandrel connection and rubber-to-metal bond requirements against the cup drawing. Provide the actual tubing internal diameter, bore restrictions and cup outside diameter for the nominal 2-3/8-inch, 2-7/8-inch or 3-1/2-inch requirement. Select the rubber compound for produced fluids, suspended solids, temperature and operating load. Inspect the cup profile, core condition and bond before service; core material alone does not define lifting capacity or operating limits.

Available types of Swab cups:

TA style: A medium-load cup built around a steel or aluminum bushing. Confirm the tubing bore, mandrel fit and required load range before selecting the cup; compound and dimensions must match the actual well conditions.

 MV style: A multiple-lip cup with a steel or aluminum bushing. Confirm the lip profile and fit for the tubing restrictions and suspended solids present; choose the rubber compound for the produced fluid and temperature.

V style: An all-rubber cup with upturned lips, offered for different load requirements and sand-bearing fluids. Confirm the cup arrangement and operating load; excessive-load behavior depends on the actual design and well conditions.

Other relative rubber products:

Application environment: oil, gas, gas condensate.

Packing and shipment :

1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.

2: Air shipment: air port to air port or air port to door.

3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.

Shanghai Qinuo Industry Co. Ltd was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.

Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.

We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.

We adopt comprehensive quality management system, production is managed under an ISO 9001 quality management system, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, New Zealand, Australia and other countries and regions.

Mould corner view for the rubber parts:

Swab Cup Ordering and Selection

Specify the cup style, quantity, tubing bore and mandrel dimensions so the required fit can be reviewed.

Include fluid composition, suspended sand, operating temperature and expected load. These conditions guide compound and reinforcement selection.

Provide drawings or samples for custom cups and confirm dimensional tolerances, compound and delivery requirements in the quotation.

Welcome to contact us for more information about the swab cups.
