Netrile Guiberson Rubber Oilfield Swab Cups Steel Core Wire Tubing MV Style

Netrile Guiberson Rubber Oilfield Swab Cups Steel Core Wire Tubing MV Style

Product Details:
Place of Origin: Shanghai, China
Brand Name: SHQN
Certification: ISO 9001
Model Number: Swab cups
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: 0.3-1
Packaging Details: Carton packing
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs per week
Contact Now
Detailed Product Description
Size:: Nominal 2-3/8, 2-7/8 And 3-1/2 Inch Or Custom; Cup Dimensions And Actual Bore To Confirm Material:: Nitrile (NBR) Or HNBR Per Confirmed Fluid And Temperature Requirements
Environment:: Oil, Gas, Gas Condensate Color: Black Or Custom Color
Original: Shanghai China Types:: MV Type For This Listing; Other Styles Have Separate Component Drawings
Name: Steel-core MV-style Nitrile Swab Cups; Bushing And Mandrel Dimensions To Confirm
Highlight:

guiberson swab cups

,

swabbing equipment tube

Steel-Core MV-Style Nitrile Swab Cups for Oilfield Tubing

Swab Cup Ordering and Selection

Specify the cup style, quantity, tubing bore and mandrel dimensions so the required fit can be reviewed.

Include fluid composition, suspended sand, operating temperature and expected load. These conditions guide compound and reinforcement selection.

Provide drawings or samples for custom cups and confirm dimensional tolerances, compound and delivery requirements in the quotation.

Welcome to contact us for more information about the swab cups.

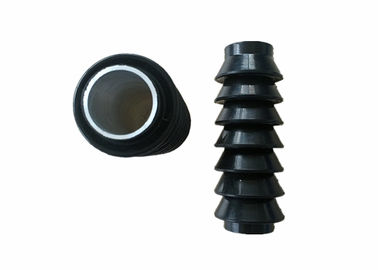

This MV-style nitrile swab cup listing specifies a steel core and a multiple-lip rubber profile. Confirm the steel bushing outside diameter, length and bore together with the mandrel dimensions and cup drawing. The 2-3/8-inch, 2-7/8-inch and 3-1/2-inch references are nominal tubing sizes; actual bore and cup dimensions are needed for fit selection. State fluid composition, suspended sand, temperature and expected swabbing load so the nitrile compound and rubber-to-metal bond requirements can be reviewed. Steel reinforcement alone does not establish a load rating or universal interchangeability.

Netrile Guiberson Rubber Oilfield Swab Cups Steel Core Wire Tubing MV Style

Available types of Swab cups:

TA style: A medium-load cup built around a steel or aluminum bushing. Confirm the tubing bore, mandrel fit and required load range before selecting the cup; compound and dimensions must match the actual well conditions.

Netrile Guiberson Rubber Oilfield Swab Cups Steel Core Wire Tubing MV Style

 MV style: A multiple-lip cup with a steel or aluminum bushing. Confirm the lip profile and fit for the tubing restrictions and suspended solids present; choose the rubber compound for the produced fluid and temperature.

Netrile Guiberson Rubber Oilfield Swab Cups Steel Core Wire Tubing MV Style



V style: An all-rubber cup with upturned lips, offered for different load requirements and sand-bearing fluids. Confirm the cup arrangement and operating load; excessive-load behavior depends on the actual design and well conditions.

For frac-fluid service, confirm the fluid formulation, additives, solids content, temperature and required abrasion performance before selecting a compound.
TUF style: A cup with internal metal reinforcement to help maintain its profile. Confirm tubing condition, bore restrictions, required load and compound temperature limits before selection.
NUF style: A heavy-load rubber cup bonded to a steel or aluminum bushing. Confirm the exact size, bushing dimensions, mandrel connection and fluid conditions for the intended swabbing operation.
Netrile Guiberson Rubber Oilfield Swab Cups Steel Core Wire Tubing MV Style
Part Name  MV Style, TA style, TUF style, NUF style and V style

Environment

oil, gas, gas condensate

Available Material

Nitrile (NBR), HNBR or FKM options; reinforcement and compound per confirmed cup drawing

Other relative rubber products:

Netrile Guiberson Rubber Oilfield Swab Cups Steel Core Wire Tubing MV Style

Application environment: oil, gas, gas condensate.

 Netrile Guiberson Rubber Oilfield Swab Cups Steel Core Wire Tubing MV Style

Packing and shipment :

1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.

2: Air shipment: air port to air port or air port to door.

3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.



Netrile Guiberson Rubber Oilfield Swab Cups Steel Core Wire Tubing MV Style



Shanghai Qinuo Industry Co. Ltd was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.

Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.

We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.

We adopt comprehensive quality management system, production is managed under an ISO 9001 quality management system, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, New Zealand, Australia and other countries and regions.

Netrile Guiberson Rubber Oilfield Swab Cups Steel Core Wire Tubing MV Style

Mould corner view for the rubber parts:

Netrile Guiberson Rubber Oilfield Swab Cups Steel Core Wire Tubing MV Style
