| Place of Origin: | Shanghai, China |
| Brand Name: | SHQN |
| Certification: | ISO 9001 |
| Model Number: | Swab cups |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | 0.3-1 |
| Packaging Details: | Carton packing |
| Delivery Time: | 15days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000pcs per week |
| Size:: | Nominal 2-3/8, 2-7/8 And 3-1/2 Inch Or Custom; Cup Dimensions And Actual Bore To Confirm | Material:: | Nitrile (NBR); HNBR Alternative Per Confirmed Fluid, Temperature And Wear Requirements |
|---|---|---|---|
| Environment:: | Oil, Gas, Gas Condensate | Color: | Black Or Custom Color |
| Original: | Shanghai China | Types:: | TA, MV, V, TUF Or NUF References; Select Exact Style And Construction By Drawing |
| Name: | Custom Nitrile Oilfield Swab Cups; Style And Reinforcement Per Confirmed Drawing | ||
| Highlight: | guiberson swab cups,swabbing equipment tube |
||

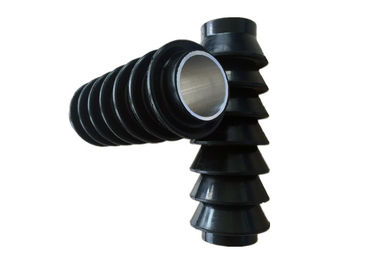

Custom Nitrile Oilfield Swab Cups: Style and Wear-Service Selection

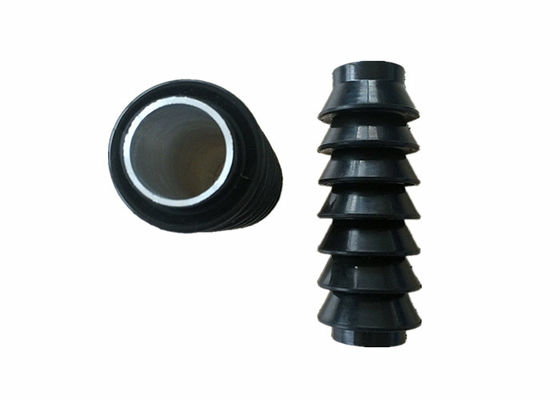

Available types of Swab cups:
TA style: A medium-load cup built around a steel or aluminum bushing. Confirm the tubing bore, mandrel fit and required load range before selecting the cup; compound and dimensions must match the actual well conditions.
MV style: A multiple-lip cup with a steel or aluminum bushing. Confirm the lip profile and fit for the tubing restrictions and suspended solids present; choose the rubber compound for the produced fluid and temperature.
V style: An upturned-lip cup offered in different configurations. Confirm whether the required cup is all-rubber or reinforced from the individual drawing. Cup arrangement, load response and sand-bearing fluid suitability depend on the actual design and operating conditions.
| Part Name | MV Style, TA style, TUF style, NUF style and V style |
| Environment | oil, gas, gas condensate |
| Available Material |
Nitrile (NBR), HNBR or FKM options; reinforcement and compound per confirmed cup drawing |
Select cup geometry and compound for the actual tubing bore and well-fluid conditions; operating suitability must be confirmed for the required configuration.
For a custom nitrile swab cup, identify the required TA, MV, V, TUF or NUF profile and provide its drawing or sample. Different lip arrangements and reinforcement designs require separate fit checks; a shared nominal tubing size does not establish interchangeability. Specify actual tubing bore, cup OD, ID, height and mandrel dimensions. For wear-related service, include suspended solids, tubing condition, produced fluid, temperature and expected load so compound and reinforcement requirements can be reviewed. Abrasion performance depends on the individual compound and operating conditions.
![]()
![]()
Other relative rubber products:
![]()
Application environment: oil, gas, gas condensate.
![]()
Packing and shipment :
1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.
2: Air shipment: air port to air port or air port to door.
3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.
![]()
Shanghai Qinuo Industry Co. Ltd was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.
Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.
We adopt comprehensive quality management system, production is managed under an ISO 9001 quality management system, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, New Zealand, Australia and other countries and regions.
![]()
Mould corner view for the rubber parts:
![]()
Swab Cup Ordering and Selection
Specify the cup style, quantity, tubing bore and mandrel dimensions so the required fit can be reviewed.
Include fluid composition, suspended sand, operating temperature and expected load. These conditions guide compound and reinforcement selection.
Provide drawings or samples for custom cups and confirm dimensional tolerances, compound and delivery requirements in the quotation.
Welcome to contact us for more information about the swab cups.
