|Place of Origin:||Shanghai, China|
|Minimum Order Quantity:||1000|
|Packaging Details:||Carton packing|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||5000pcs per week|
|Size::||3.5" 4.5" 5.5" Or Custom Zises||Material::||, HNBR And Nitrile|
|Operating Pressure:||35 MPa||Environment::||Oil, Gas, Gas Condensate|
|Max Temperature::||+120 С||Color:||Black Or Custom Color|
packer oil and gas,

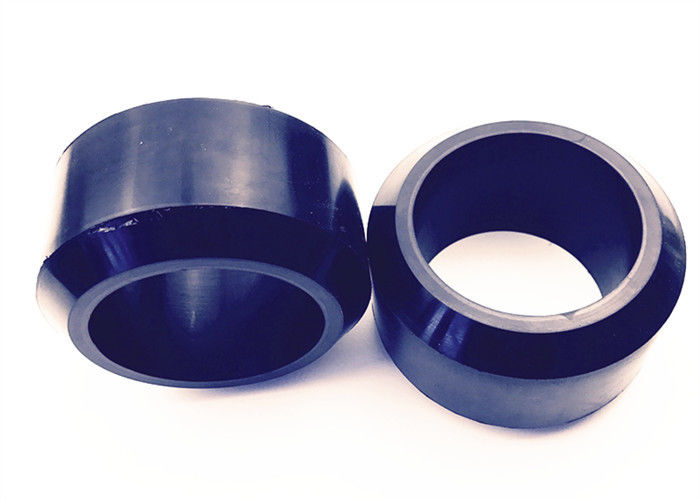

Top-quality oil field drilling , HNBR and Nitrile rubber packers
Features of the rubber oil packer cups:
1 ) Able to sustain High Pressure and High Temperature.
2 ) Are proven in reliability.
3) Available in a wide range of sizes.
4 ) Pressure Tested for your requirements and at temperatures of 150ºC (302ºF)
5 ) Tested for 30 cycles.
6 ) Cups up to 30” can be supplied.
|Operating Pressure||35 MPa|
|Environment||oil, gas, gas condensate|
FKM, , HNBR and nitrile rubber
Shanghai Qinuo manufactures a wide range of Packer Cups and replacement Packer Cups for customers all over the world. These Packer Cups are developed to perform in varying well conditions and provide maximum durability and sealability in the toughest of oilfield conditions.
We manufacture both Wire Skeleton / Wire Mesh / Wire Frame Packer Cups and Rubber Packer Cups without any mesh.
Standard packer cups types:
Wire packer cups: Engineered as a directional packing element, our slick type packer cup forms a seal to stop communication from one zone to another. Its automatically sealing lip maintains pressure on the side it’s pointed toward. Wire packer cups are available with multiple inserts and compounds and in a range of casing weights. Depending on the application, they can be installed on custom tools or mandrels as a single or dual cup or in multiple combinations.
Heavy-duty packer cups: Specifically designed and heat-treated for maximum durability and stability, these packer oilfield cups are ideal for use in washing wells and other applications requiring continuous working of the cup. Thanks to their double-basket design, they’re more resistant than other packer cups to high-pressure applications. Also available are complete heavy-duty packer cup units.
All-rubber packer cups: We make these packer cups from high-quality, abrasion-resistant rubber compounds that reduce the impact of wear and tear. Without any wiring or metal in the cup, all-rubber cups are more flexible that other types.
Threaded packer cups: Threaded and all-rubber threaded packer cups are best-suited for steaming applications. The integrated threaded insert facilitates the connection of an assembly or tool. Note that threaded packer cups are not engineered for high-pressure wash processes.
Our Packer Cups are available in various sizes right from a 1-1/4″ tubing through a 7″ casing and more. Specific sizes / designs can be developed based on your requirements.
Rubber Packer cups are drillable composite tools that are created to allow for the zonal isolation of materials in situations where multi-stage drilling and stimulation is performed. Although these packer cups can consist of a variety of materials, we offer them in FKM, , HNBR and nitrile rubber. packer cups are typically available in a variety of sizes as well, making our customization skills of primary importance for each unique situation presented.
Other relative rubber products:
We also can provide oilfield rubber swab cup
The TA swab cup is a medium-duty, all-rubber variable lip cup that offers greater flexibility under lighter loads.
The MV swab cup is a light-duty, all-rubber cup especially effective in fluid with a high ratio of suspended sand. It has multiple flexible, upturned lips that easily.
The V swab cup is a ring-type, single-lip, flexible, all-rubber cup molded on a steel bushing. It is ideal for lifting sand-laden fluids and for light-load swabbing. It is a single version of the MV swab cup.
The TUF swab cup is a flexible, synthetic rubber cup with spring steel reinforcing wires for heavy loads but is flexible enough for light or medium loads.
The UF swab cup is an all-purpose, synthetic rubber cup containing strong, flexible spring steel reinforcing wires.
The J swab cup is a durable, heavy-duty cup with a long, flexible lip and strong steel reinforcing wires which provide a good upstroke seal for lifting heavy loads.
The GW swab cup is a heavy, flexible, single-lip cup reinforced by spring steel wire. The oversized lip creates a good upstroke seal.
Application environment: oil, gas, gas condensate.
Packing and shipment :
1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.
2: Air shipment: air port to air port or air port to door.
3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.
Shanghai Qinuo Industry Co. Ltd was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.
Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.
We adopt comprehensive quality management system, all components passed ROHS certification, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, New Zealand, Australia and other countries and regions.
Mould corner view for the rubber parts:
Why Choose Our Top-Quality Packer Cups?
We understand that no matter what industry you’re in, one thing remains the same: You need top-quality products to ensure the safety of your people, the longevity of your equipment and the quality of your product.
If you have to delay operations due to any material defects, it can place a huge financial burden on your business. For example, not being able to operate an oil well for a day can run into the tens of thousands of dollars in costs. Similarly, if you’re in the agricultural business, postponing anything from tilling and planting to harvesting simply isn’t an option, as it will impact the product.
That’s why we always look at things from our clients’ perspective. We always appreciate that having top-quality products delivered in a timely manner isn’t simply an option: It’s a must.
Welcome to contact us for more information about the rubber oil packers.
