Oilfield Rubber Packer Elements , Oil Well Packer Sleeves Anti Vibration

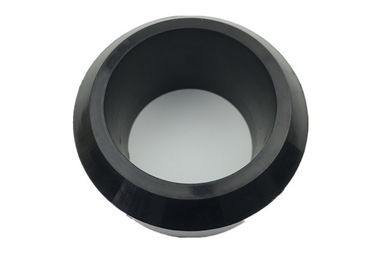

HNBR and NBR Rubber Packer Cups for Oil and Gas Wells — Assembly Requirements

Features of the rubber oil packer cups:

1) Specify differential pressure and pressure direction for the complete tool.

2) Confirm tool model, component drawing and required inspection documents.

3) Match nominal 3.5, 4.5 or 5.5 inch references to actual casing or tubing internal diameter.

4) A 150°C (302°F) test condition requires documented compound and assembly qualification.

5) Agree test cycles, duration and acceptance criteria for the application.

6) Custom large-size configurations require drawing and tooling confirmation.

Replacement packer cups for oil and gas wells are selected by the approved tool assembly. Provide the cup part number, mandrel fit, lip orientation and actual casing or tubing internal diameter. Identify the intended pressure direction and any movement during operation before approving the replacement.

Wire-reinforced and all-rubber constructions require separate drawings. Specify wire frame, mesh or insert details where used; the configurations are not interchangeable solely because their nominal size matches.

Tubing and casing references from 1-1/4 inch through 7 inch require actual internal dimensions and casing weight. Confirm cup bore, lip outside diameter, height and tolerances for the selected tool. Custom profiles need drawing and sample-fit review.

The cup is a sealing component and does not establish drillability or multi-stage isolation performance on its own. For oil, gas or condensate exposure, specify fluid composition, operating temperature, differential pressure, cycling and decompression conditions. Review the exact compound and complete tool qualification before a material or construction change.

Other relative rubber products:

The TA swab cup is a medium-duty, all-rubber variable lip cup that offers greater flexibility under lighter loads.

The MV swab cup is a light-duty, all-rubber cup especially effective in fluid with a high ratio of suspended sand. It has multiple flexible, upturned lips that easily.

The V swab cup is a ring-type, single-lip, flexible, all-rubber cup molded on a steel bushing. It is ideal for lifting sand-laden fluids and for light-load swabbing. It is a single version of the MV swab cup.

The TUF swab cup is a flexible, synthetic rubber cup with spring steel reinforcing wires for heavy loads but is flexible enough for light or medium loads.

The UF swab cup is an all-purpose, synthetic rubber cup containing strong, flexible spring steel reinforcing wires.

The J swab cup is a durable, heavy-duty cup with a long, flexible lip and strong steel reinforcing wires which provide a good upstroke seal for lifting heavy loads.

The GW swab cup is a heavy, flexible, single-lip cup reinforced by spring steel wire. The oversized lip creates a good upstroke seal.

Application environment: oil, gas, gas condensate.

Packing and shipment :

1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.

2: Air shipment: air port to air port or air port to door.

3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.

Shanghai Qinuo Industry Co. Ltd was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.

Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.

We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.

Our quality management system is ISO 9001 certified. State the material, dimensional and test records required for the order. Any additional service or regulatory qualification requires the relevant compound and assembly documentation.

Mould corner view for the rubber parts:

Welcome to contact us for more information about the rubber oil packers.
