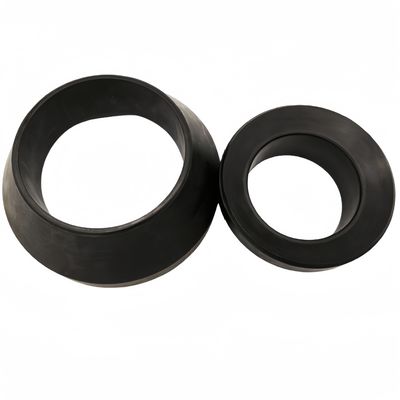

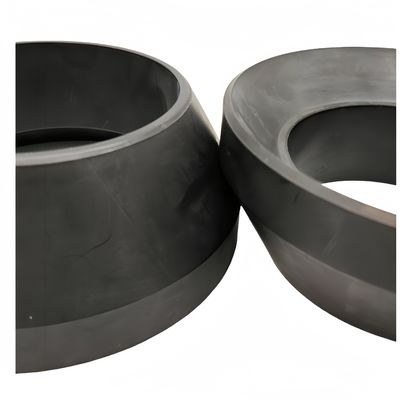

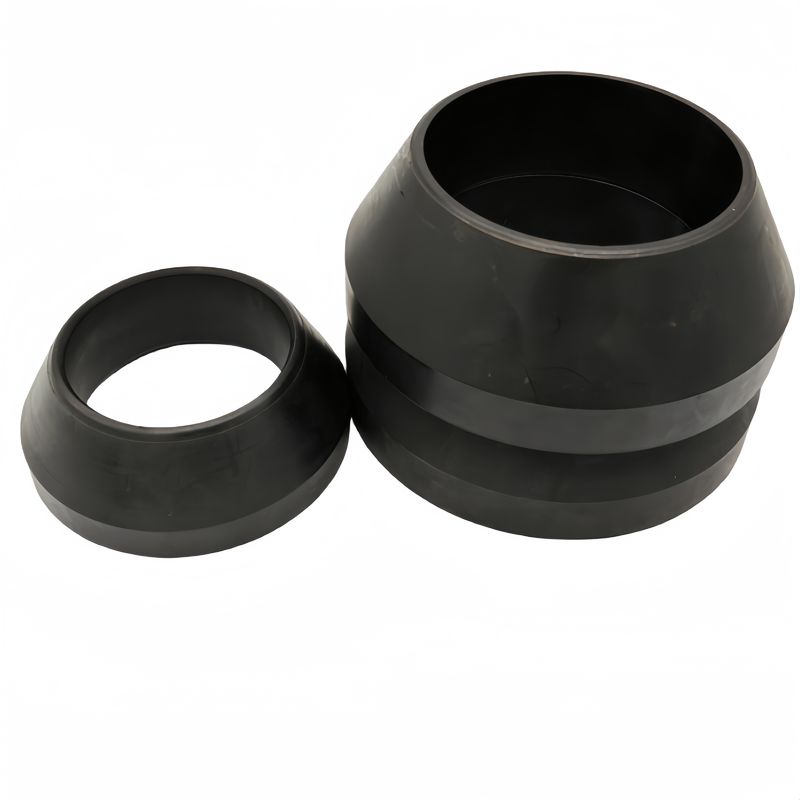

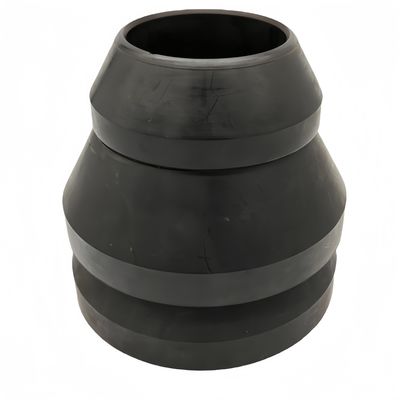

Abrasion Resistant NBR Rubber Packer Element for Tubing and Casing Isolation
Royal Way rubber packer elements are engineered sealing components for completion, workover, drilling and production tools. Each element combines a carefully selected elastomer compound, controlled profile geometry and consistent molding quality to deliver a strong sealing interface in demanding well service.
Our Shanghai production team supports standard and custom packer element programs with responsive engineering, stable batch production and export-ready packaging. The design language follows API-style dimensional, material and service requirements used across modern oilfield tool assemblies.
Performance Highlights
- Abrasion-resistant profiles for reliable contact with casing and tubing surfaces
- NBR and NBR compounds for broad temperature and fluid service programs
- Precision molded lips and support zones for smooth setting and retrieval
- Compound and hardness options coordinated with the customer tool drawing
- Black or custom color identification for organized field maintenance
| Performance Feature |
Royal Way Solution |
Customer Benefit |
| Expansion response |
Profile-specific elastic recovery |
Fast contact during tool setting |
| Abrasion resistance |
Reinforced compound formulation |
Long service value in repeated cycles |
| Fluid service |
NBR, NBR and FKM material families |
Flexible selection for well fluids |
| Surface finish |
Controlled mold and trimming process |
Clean sealing contact and easy handling |
Technical Specifications
| Item |
Specification |
| Product type |
Oilfield rubber packer element |
| Material |
NBR / NBR |
| Hardness |
70, 80 or 90 Shore A common options |
| Color |
Black or customer color |
| Profile |
Round, cup, lip and custom tool profiles |
| Service temperature |
Compound-selected for the application program |
| Size range |
Custom ID, OD and cross-section from drawing |
| Manufacturing standard |
ISO 9001 controlled production workflow |
Profile and Size Options
Royal Way supports complete profile development from a sample, drawing or service description. Engineers coordinate the sealing lips, backup zones, support shoulders and expansion areas with the tool assembly so the finished component integrates cleanly with the setting mechanism.
| Profile Family |
Typical Tool Use |
Available Development |
| Single lip element |
Compact tubing and casing tools |
Custom lip angle and wall thickness |
| Double lip element |
High-contact isolation assemblies |
Matched upper and lower sealing zones |
| High contact element |
Large annular clearance tools |
Compound and geometry tuning |
| Reinforced packer element |
High-load downhole assemblies |
Support insert and fabric options |
Materials for Oil and Gas Service
| Compound |
Strength |
Typical Application |
| NBR |
Balanced oil resistance and flexibility |
General drilling and production tools |
| NBR |
Enhanced heat, wear and fluid resistance |
High-performance completion assemblies |
| FKM |
Strong temperature and chemical service |
Specialty high-temperature well programs |
| Custom blend |
Application-focused compound design |
OEM tool and redress programs |
Production and Quality Control
Every production lot moves through documented material preparation, precision molding, post-cure conditioning, visual inspection, dimensional measurement and packing release. Our team maintains traceable batch information and uses controlled gauges to keep critical sealing dimensions consistent.
| Control Stage |
Factory Practice |
Output |
| Material preparation |
Batch weighing and compound identification |
Stable material input |
| Molding |
Controlled temperature, pressure and time |
Consistent profile formation |
| Post-cure |
Programmed conditioning cycle |
Balanced elastic recovery |
| Inspection |
Dimensional, appearance and hardness checks |
Release-ready components |
| Documentation |
Batch and inspection record management |
Traceable delivery package |
Oilfield Applications
| Application |
Assembly Role |
Royal Way Value |
| Completion tools |
Annular isolation and pressure support |
Profile matched to the setting system |
| Workover tools |
Repeated setting and retrieval |
Durable compound and clean release |
| Drilling tools |
Downhole fluid separation |
Material choices for demanding fluids |
| Production equipment |
Long-cycle sealing support |
Stable quality for service programs |
Customization and Supply Service
Send a tool drawing, sample, target hardness and service conditions to receive a focused production proposal. Royal Way can develop the profile, prepare prototype samples, organize first-article inspection and move the approved design into repeat production. Branding, color coding, packing format and inspection documents can be coordinated for OEM and distributor programs.
| Service Item |
Available Support |
| Engineering input |
Drawing review and profile optimization |
| Material selection |
NBR, NBR, FKM and custom compound options |
| Sampling |
Prototype and pre-production sample service |
| Production |
Stable batch manufacturing with ISO 9001 workflow |
| Packaging |
Protective carton, labeling and export packing |
Ordering Information
For a fast quotation, provide model name, finished dimensions, compound, nominal Shore A hardness, quantity, tool drawing and destination market. Our team will prepare the most suitable rubber packer element configuration and production schedule for your oilfield program.
Royal Way Rubber Packer Elements combine experienced factory production, responsive customization and dependable oilfield sealing support.
