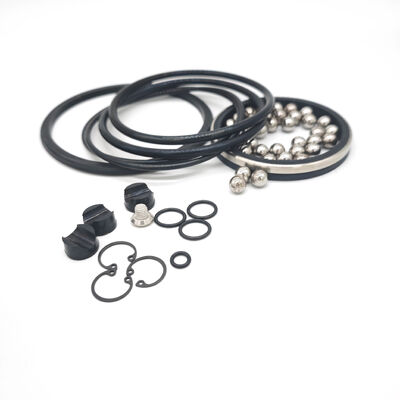

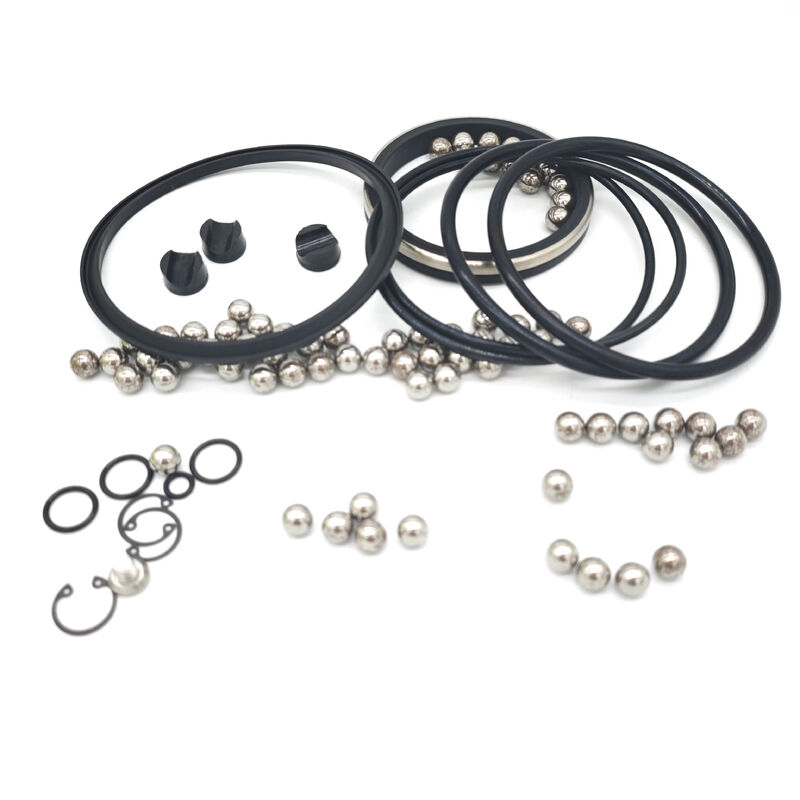

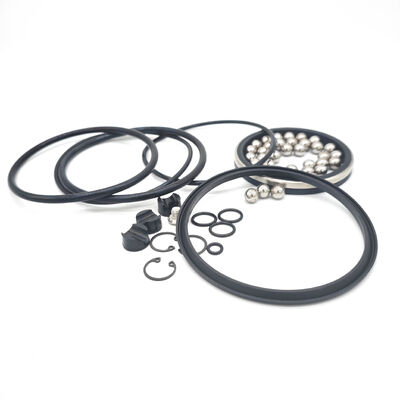

18 inch Wide Wireline Swivel Joint Repair Kit
Shanghai Qinuo Industry Co., Ltd. supplies a complete 18 inch wide wireline swivel joint repair kit for oilfield adapter maintenance, workshop rebuilds and field service preparation. The kit brings the sealing and retaining components together in a clearly organized package so maintenance teams can restore a smooth, dependable swivel-joint assembly with efficient parts matching.
The 18 inch wide package is configured for large-bore adapter assemblies where component organization, dimensional control and efficient workshop staging matter. NBR, HNBR and FKM options give buyers a practical material path for demanding oilfield fluid, temperature and chemical service requirements.
Product Configuration
| Item | Specification | Supply focus |
|---|
| Product type | Wide-style wireline swivel joint repair kit | Maintenance and rebuild preparation |
| Nominal size | 18 inch wide configuration | Adapter and swivel-joint assemblies |
| Seal compounds | NBR, HNBR, FKM | Selected for service medium and temperature |
| Hardness options | 70, 80, 90 Shore A | Matched to the approved component list |
Matched Kit Components
Each kit is organized around the specified swivel-joint model and parts list. Sealing elements and retaining parts are prepared as a coordinated set to simplify incoming inspection, inventory control and rebuild planning.
| Component family | Typical materials | Customer value |
|---|
| O-rings and sealing rings | NBR, HNBR or FKM | Reliable sealing contact across service conditions |
| Retaining rings and snap rings | Steel or corrosion-resistant alloy | Secure component location during assembly |
| Steel balls and ball plugs | Precision steel components | Clean fit with consistent movement and retention |
| Fasteners and small parts | Steel or brass as specified | Convenient one-kit maintenance preparation |
Elastomer Material Options
| Compound | Strengths | Typical service focus |
|---|
| NBR | Balanced oil resistance and economical performance | General oilfield maintenance and standard fluids |
| HNBR | Enhanced heat, oil and mechanical performance | High-demand pressure-control and wireline service |
| FKM | Strong heat and chemical resistance | Elevated temperature or aggressive fluid environments |
Compound, hardness, dimensions and tolerance can be coordinated with the assembly drawing or approved parts list. This gives buyers a clear path from equipment identification to a matched replacement kit.
Dimensional and Identification Control
Shanghai Qinuo uses product identification, component labeling and dimensional checks to keep each kit easy to receive and easy to issue to the maintenance team. Labels can include the kit reference, compound, hardness, quantity and customer part number.
| Control point | Factory practice | Result for buyers |
|---|
| Component identity | Part names and quantities matched to the kit list | Faster receiving and stock management |
| Critical dimensions | Sampling checks for ID, cross-section and fit features | Consistent assembly preparation |
| Elastomer hardness | Shore A verification by production batch | Repeatable sealing behavior |
| Visual finish | Surface and edge inspection before packing | Clean presentation and dependable handling |
Manufacturing and Quality Control
Our production team combines rubber mixing, molding, trimming, inspection and kit assembly in a controlled workflow. Shanghai Qinuo operates an ISO 9001 quality management system and applies disciplined process checks to materials, dimensions, appearance, labeling and packing. Inspection points can be aligned with API-style oilfield maintenance requirements and the buyer's approved drawing or parts list.
| Production stage | Quality focus | Documentation support |
|---|
| Material preparation | Compound identification and batch control | Material and batch traceability |
| Molding and finishing | Shape, flash removal and surface quality | In-process inspection records |
| Kit assembly | Part count, labeling and configuration | Kit checklist and packing record |
| Final release | Appearance, dimensions and package integrity | Quality release documentation by order |
Oilfield Applications
This 18 inch repair kit supports large wireline adapters, swivel joints, pressure-control maintenance, workshop rebuilds and service inventory planning. It gives maintenance teams an organized set of seals and retaining components ready for scheduled repair work, equipment turnaround and field-service response.
| Application | Kit advantage |
|---|
| Wireline adapter service | Organized sealing and retaining parts for efficient rebuild preparation |
| Swivel-joint workshop repair | Matched components simplify inspection and assembly staging |
| Pressure-control maintenance | Compound and hardness choices support application-specific selection |
| Spare-parts inventory | Labeled kits improve issue control and repeat ordering |
Packing and Delivery Preparation
Components are packed in a protective labeled inner bag, then placed in a carton suitable for export handling. Kit quantities, labels and outer-carton marks can be prepared around the buyer's warehouse and project requirements. Pallet packing is available for consolidated shipments.
| Package level | Standard arrangement | Customization |
|---|
| Inner pack | Labeled bag with component protection | Part number, compound and hardness marking |
| Carton | Moisture-protected export carton | Carton marks and customer labels |
| Pallet | Consolidated pallet for larger orders | Shipment grouping by kit reference |
Why Choose Shanghai Qinuo
- Oilfield rubber manufacturing experience covering seals, swab cups, packer elements and repair kits.
- Integrated production support from compound preparation and molding to trimming, inspection and packing.
- Flexible NBR, HNBR and FKM material options with practical Shore A selections.
- Clear component labeling and kit organization for maintenance teams and distributors.
- OEM and custom kit support using drawings, parts lists, samples and customer references.
Recommended Inquiry Information
For a fast quotation and accurate kit preparation, share the swivel-joint manufacturer, model or series, revision, wireline-adapter interface, existing kit reference, assembly drawing or parts list, required compound, Shore A hardness, service medium, temperature range and preferred labeling.
| Information | Example |
|---|
| Equipment reference | 18 inch wide swivel joint or wireline adapter model |
| Seal selection | HNBR 90 Shore A for elevated-temperature oilfield service |
| Kit definition | Drawing, BOM, previous kit number or component photos |
| Packaging | Individual labeled bags, cartons or palletized shipment |
Frequently Asked Questions
| Question | Answer |
|---|
| How does this kit support large-bore maintenance? | The kit groups sealing and retaining components around one large-bore swivel-joint configuration, improving maintenance preparation, inventory control and repeat ordering. |
| Can the material be changed? | Yes. NBR, HNBR and FKM options can be organized around the service medium, temperature and approved parts list. |
| Can labels carry a customer part number? | Yes. Customer labeling and kit references can be added to inner bags and cartons. |
| Can Shanghai Qinuo build a custom repair kit? | Yes. Drawings, samples, parts lists and existing kit references can be used to prepare a tailored configuration. |
