FKM HNBR NBR Redress Seal Kit with 70 75 90 Shore A Hardness for Wireline Pressure Setting Tool Redress Kit

Product Details:

Place of Origin:	Nantong, Jiangsu, China
Brand Name:	Royal Way / SHQN
Certification:	ISO 9001:2015
Model Number:	#200 wireline pressure setting tool redress seal kit

Contact Now

Detailed Product Description

Service Family:	Wireline Pressure-setting Tool And Downhole Service	Kit Type:	#200 Organized Redress Seal Kit With Component Packing
Material Options:	FKM, HNBR And NBR Compound Options	Seal Hardness:	70 / 75 / 90 Shore A
Kit Contents:	Primary Seals, Backup Components And Packing-list Items	Application:	Wireline Setting Tools, Completion And Well Intervention Equipment
Manufacturing Process:	Compression Molding, Trimming, Inspection And Kit Assembly	Factory Capability:	Tooling Coordination, Compound Mixing, Molding And Export Packing
Quality System:	ISO 9001:2015 Quality Management With Batch Inspection	Customization:	BOM Matching, Private Label, Color Coding And Kit Packaging
Highlight:	FKM HNBR NBR Redress Seal Kit , 70 75 90 Shore A Redress Kit , Wireline Pressure Setting Tool Seal Kit

#200 Wireline Pressure Setting Tool Redress Seal Kit for Field-Ready Seal Replacement

Royal Way #200 redress kits support organized seal replacement for wireline pressure-setting tools used in completion and well-intervention operations. Clear component grouping, material options and packing-list control make the kit easy to specify for service stock and repeat orders.

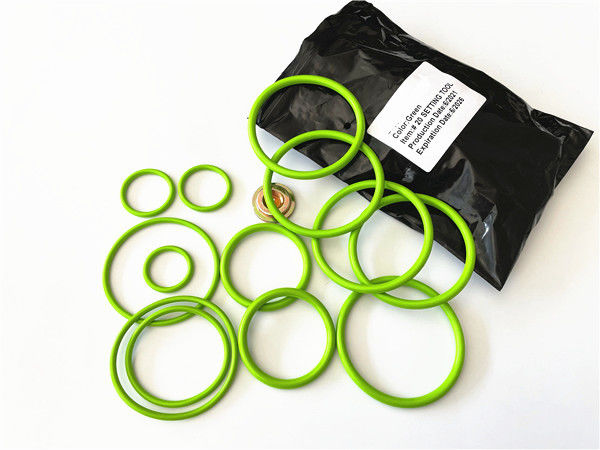

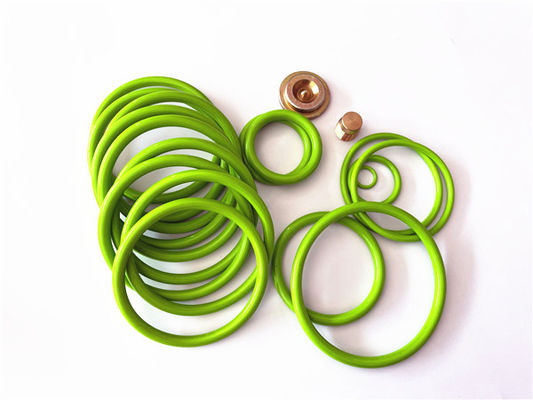

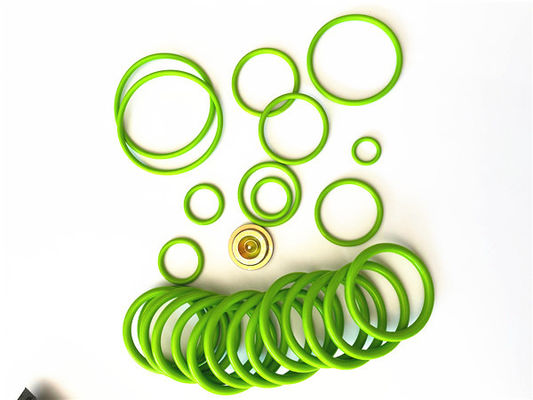

#200 wireline redress kit component layout #200 redress kit assembly and packing

Kit Highlights

Feature	Value for the service team
#200 tool program	Organized around the hammer union service tool reference and approved bill of materials
Material selection	FKM, HNBR, NBR and TFE/P families for different fluid, temperature and duty requirements
Complete kit format	Primary seals, backup elements and packing-list components grouped for efficient redress work
Factory assembly	Component identification, inspection and packing completed through one coordinated process

Tool and Kit Configuration

Configuration item	Typical supply information
Tool reference	#200 wireline pressure setting tool, manufacturer and revision supplied with enquiry
Seal references	Original part number, drawing, sample or approved kit reference
End-use	Completion, well intervention and wireline service preparation
Kit quantity	Single redress set, service batch or recurring replenishment program
Identification	Component labels, kit number, batch mark and customer packing list

Material Options for Oilfield Service

Material family	Positioning in the kit program
HNBR	High-strength elastomer option for demanding oilfield sealing duties
FKM	Fluoroelastomer option for elevated-temperature and chemical exposure programs
NBR	Reliable nitrile option for general oil service and broad supply coverage
TFE/P	Low-friction polymer option for selected backup or energizer applications
Color coding	Material and component identification can be aligned to the customer system

Seal Kit Component Schedule

Component group	Service role
Primary seals	Maintain pressure separation across the tool sealing interfaces
Backup components	Support the sealing arrangement during pressure cycling and movement
Wipers and scrapers	Support clean movement and protect internal service surfaces
O-rings and energizers	Replace matched secondary sealing components during redress
Labels and packing list	Keep every component traceable through assembly and field issue

Manufacturing and Assembly Process

Our production workflow links compound preparation, mold setup, compression molding, trimming, visual inspection, dimensional checks and kit assembly. The production team can work from a drawing, original sample or approved BOM and prepare a repeatable redress program for service companies and tool distributors.

Process step	Factory activity
Engineering review	Confirm tool model, revision, seal references and packing-list structure
Compound preparation	Arrange the agreed material family, color and batch identification
Molding and trimming	Form the seal geometry and remove flash for a clean installation profile
Kit assembly	Count, label and group components by tool and service set
Export packing	Prepare bags, cartons, pallets and shipping marks to the delivery plan

Quality Control for Redress Kits

Control point	Inspection focus
Material receipt	Compound identity, color, batch and molding suitability
First article	Seal profile, key dimensions, surface finish and fit sample
In-process check	Flash, cuts, deformation, hardness record and component count
Final kit release	Part numbers, quantity, labels, packing list and carton condition
Documentation	Inspection records, batch references and customer packing documents

Custom BOM and Private-Label Service

Send the tool manufacturer, model, revision, current kit reference and component list. Royal Way can coordinate material selection, sample review, component marking, private-label packaging and repeat replenishment for your field service network.

Customer input	Available response
Original BOM or drawing	Component mapping and redress kit preparation
Material request	Compound family review and sample scheduling
Branding requirement	Label, bag, carton and kit-number customization
Service forecast	Batch planning and recurring supply coordination

Packaging and Delivery

Packaging level	Typical arrangement
Component pack	Clean individual or grouped bags with identification marks
Kit pack	Carton containing the approved component list and kit reference
Bulk shipment	Cartons on pallets with export marks when required
Delivery support	Express, air and sea shipment coordination for service programs

FAQ

Question	Answer
Can you match an existing #200 tool kit?	Yes. Share the manufacturer, model, revision, BOM or original sample for kit mapping.
Can one kit include different materials?	Yes. Each component can be assigned the agreed material family and hardness.
Can you add our brand and kit number?	Yes. Private-label bags, cartons, labels and packing lists are available.
Can you supply repeat redress batches?	Yes. Approved samples and records can be carried into recurring production.

Royal Way Oilfield Seal Manufacturing

With integrated rubber molding, inspection, kit assembly and export packing, Royal Way helps wireline and completion customers keep service inventory organized and ready for the next job.
