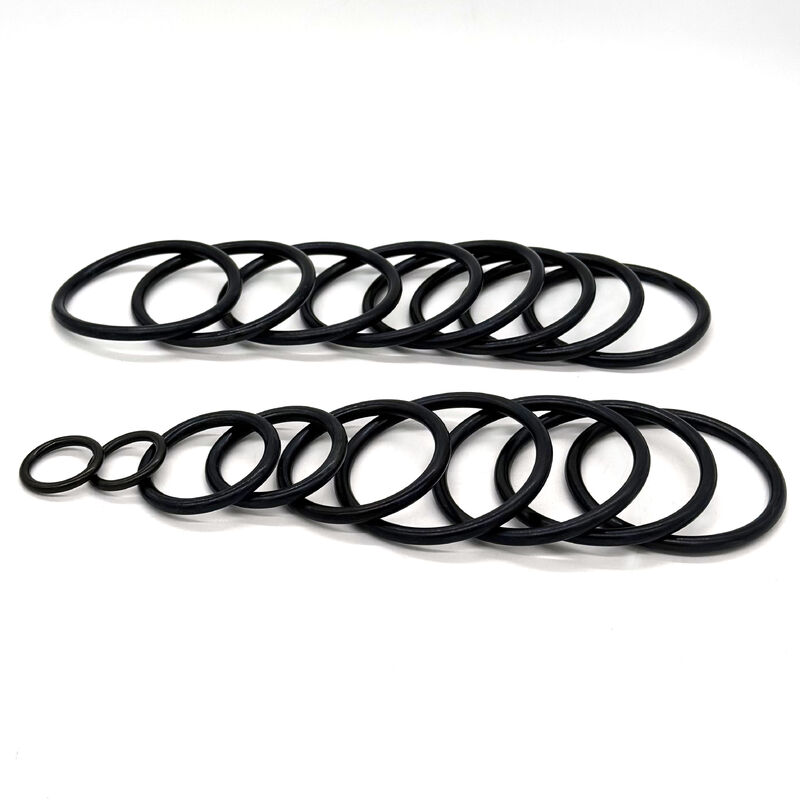

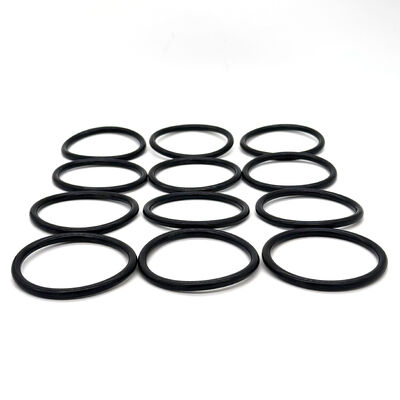

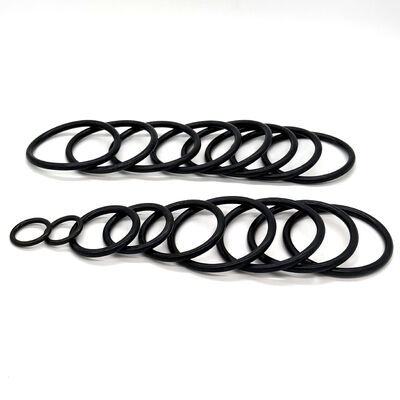

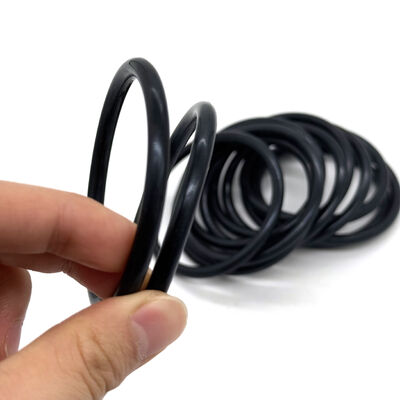

AS568-232 O-Ring for Oilfield Pumps, Valves and Pressure-Control Equipment
Royal Way AS568-232 O-rings are a standard-size sealing option for oilfield pump, valve, hydraulic-cylinder and pressure-control equipment. The 2.734 in ID and 0.139 in cross section are paired with NBR, HNBR or FKM compounds in 70 or 90 Shore A options, giving maintenance and equipment teams a clear size-and-material reference for replacement and production programs. Jiangsu Ruowei manufactures oilfield rubber seals at its Haimen facility in Nantong, Jiangsu, with coordinated mixing, molding, vulcanization, inspection and packing.
1. AS568-232 Size and Dimensions
Use the AS568-232 dash-size reference below for product identification, service-part planning and quotation requests.
| Specification |
Inch |
Metric |
Reference |
| AS568 size |
AS568-232 |
AS568-232 |
Standard O-ring dash size |
| Inside diameter (ID) |
2.734 in |
69.44 mm |
Ring inside diameter |
| Cross section (CS) |
0.139 in |
3.53 mm |
Round molded profile |
| Outside diameter (OD) |
3.012 in |
76.50 mm |
Overall ring diameter |
2. Elastomer and Hardness Options
Configure the AS568-232 oilfield O-ring around the equipment's fluid and operating profile. NBR, HNBR and FKM compounds are available in 70 and 90 Shore A choices for pump, valve and hydraulic sealing programs.
| Material |
Hardness choices |
Selection focus |
| NBR / Buna-N |
70 or 90 Shore A |
Petroleum oils and compatible hydraulic fluids |
| HNBR / HSN |
70 or 90 Shore A |
Improved heat, ozone, aging and mechanical resistance |
| FKM / Viton-type |
70 or 90 Shore A |
Selected higher-temperature and chemical-media applications |
| 70 Shore A |
Flexible sealing response |
General conformity in a designed gland |
| 90 Shore A |
Higher hardness option |
Greater extrusion resistance for suitable equipment clearances |
3. Oilfield Pump and Valve Applications
From pump overhaul inventory to pressure-control valve assembly, the AS568-232 size helps buyers identify a large-section O-ring used in compatible oilfield fluid-power equipment. Pair the dash number with compound, hardness and equipment details when planning recurring service stock or a production order.
| Equipment group |
Typical sealing role |
Useful RFQ reference |
| Oilfield pump assemblies |
Elastomer sealing within the equipment fluid path |
Pump model, part reference and quantity |
| Valves and pressure-control equipment |
Static or dynamic sealing in the specified gland |
Valve model, seal location and material choice |
| Hydraulic cylinders |
Fluid sealing for service and equipment assemblies |
Equipment drawing and size reference |
| Maintenance and distribution stock |
Replacement seal for planned service programs |
Material, hardness and repeat-order quantity |
4. Factory-Made O-Rings for Pump and Valve Programs
Jiangsu Ruowei Energy Technology Co., Ltd. manufactures rubber seals at its Haimen factory in Nantong, Jiangsu. For AS568-232 pump and valve programs, the production route brings compound preparation, mold forming, vulcanization, finishing and packing together under one manufacturing operation. The factory's wider oilfield range includes O-rings, hammer union seals, plug-valve seals, swivel repair kits, wireline components and custom molded parts.
| Factory operation |
AS568-232 production support |
Program benefit |
| Compound preparation |
NBR, HNBR and FKM material families |
Material choices for different pump and valve service requirements |
| Molded forming |
Round-section O-ring profiles in the specified dash size |
Repeatable standard-size supply for maintenance and OEM needs |
| Vulcanization |
Controlled rubber curing within the factory process |
Integrated flow from prepared compound to finished seal |
| Finishing |
Trimming and post-mold preparation |
Finished parts prepared for handling and packing |
| Production coordination |
Inspection and packing for order fulfillment |
Support for repeat lots and consolidated oilfield sourcing |
5. ISO 9001:2015 Quality System and O-Ring Inspection
Jiangsu Ruowei Energy Technology Co., Ltd. holds ISO 9001:2015 certification for the production of rubber seals. Its inspection capability connects compound and cure review with dimensional, hardness and mechanical-property checks used in molded-rubber production.
| Inspection resource |
What it checks |
Relevance to O-rings |
| Moving-die rheometer |
Rubber curing behavior |
Supports compound and cure-process review |
| Video measuring system |
Dimensions and molded profile |
Checks ID, cross section, OD and ring form |
| Hardness and density equipment |
Shore A hardness and compound density |
Supports material and batch comparison |
| Tensile and elongation tester |
Mechanical properties of rubber |
Adds material-performance data to inspection |
| ISO 9001:2015 certified system |
Quality management for rubber-seal production |
Provides a structured quality framework for factory production |
6. Supply for Oilfield Maintenance and Equipment Production
Royal Way brings standard AS568 sizes and custom rubber manufacturing into one oilfield supply program. AS568-232 can be specified for planned pump and valve maintenance, stocked for field-service demand or included in a wider equipment build, with material and hardness choices organized around the order.
| Order route |
AS568-232 offering |
Purchasing details |
| Pump and valve service stock |
Standard AS568-232 in NBR, HNBR or FKM |
Material, hardness and stock quantity |
| Field-service replenishment |
Repeat supply for maintenance programs |
Part reference, reorder quantity and delivery destination |
| Equipment manufacturing |
O-ring supply for production builds |
Equipment program and forecast quantity |
| Custom molded rubber sourcing |
Drawing- or sample-based production support |
Drawing or sample with material and annual demand |
7. Request an AS568-232 Oilfield O-Ring Quote
Request pricing for AS568-232 O-rings by sharing your preferred NBR, HNBR or FKM compound, 70 or 90 Shore A hardness, required quantity and pump or valve program. For repeat maintenance supply or equipment production, include the part reference and delivery destination so Royal Way can coordinate the order with its Haimen manufacturing team.
Royal Way | Jiangsu Ruowei Energy Technology Co., Ltd.
Oilfield O-rings, sealing rings and custom molded rubber components, manufactured in Haimen, Nantong, Jiangsu, China.
