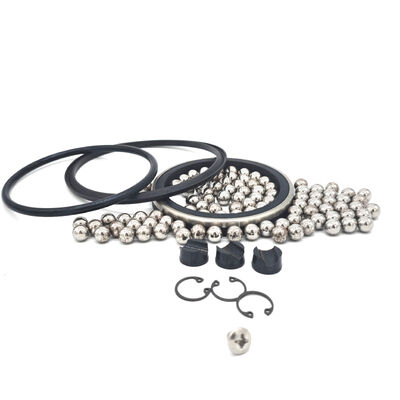

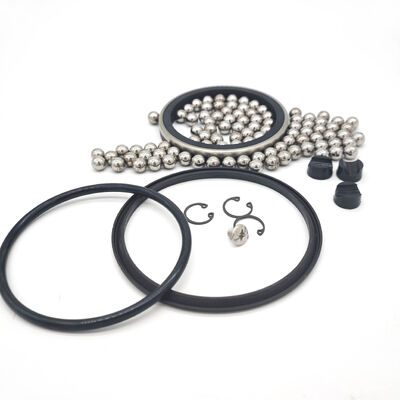

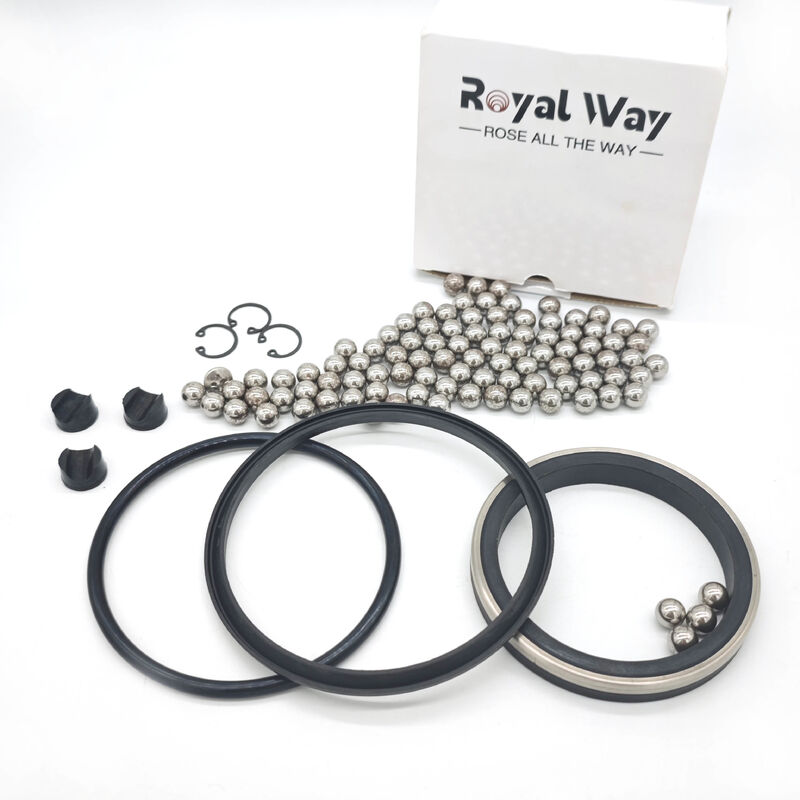

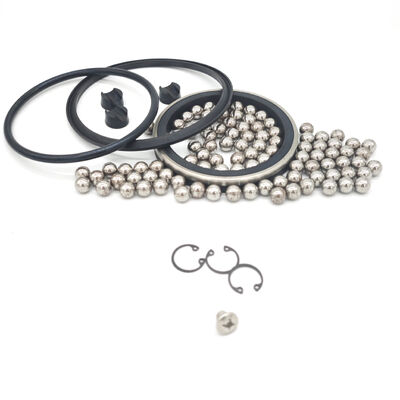

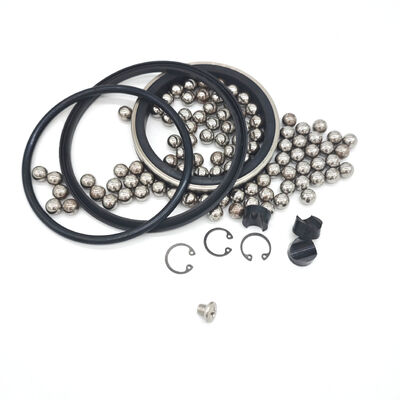

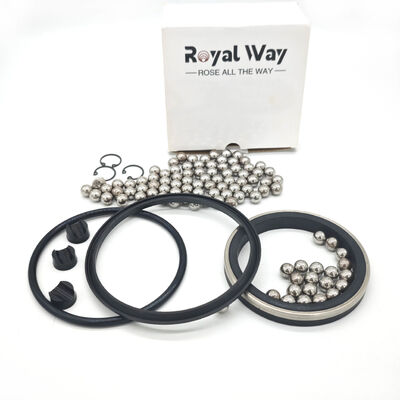

15,000 PSI CWP Wide Style Elastomer Packing Swivel Joint Repair Kit with Stainless Steel Components

This repair kit is specifically engineered for the 3" Figure 1502 Wide Style Swivel Joints. Designed to withstand the rigorous demands of high-pressure flowback, cementing, and hydraulic fracturing, these kits ensure a leak-free seal and smooth rotation under a maximum working pressure of 15,000 PSI CWP

We also provide all kinds Swivel Joint Repair kits to maximize the service life of rotating components.

	2'' Normal Swivel Kit
	2'' SMI-Oversized Swivel Joint Kit
	3'' SPM Swivel Kit
	3'' Swivel Kit
	3'' Wide Swivel Kit
	4'' 10k FET-Flowvalve Swivel Kit
	4'' 15k Forum Swivel Kit
	4'' 15k TSI Swivel Kit
	4'' 15k FlowValve Swivel Kit

• Application Scenarios

Material Selection Guide

In the high-pressure environment of 15,000 PSI (15K) flowline services, selecting the correct elastomer is critical for safety and seal longevity. Use the guide below to match your kit to the specific well conditions.

1. NBR (Nitrile Butadiene Rubber): Standard Service
Best for: General water, oil, and gas applications where H2S is not present.
Characteristics: Excellent oil resistance and mechanical strength.
Temperature Range: -30°C to +100°C (-22°F to +212°F).
Recommendation: Use for standard cementing and water transfer lines. It is the most cost-effective solution for non-corrosive environments.

2. HNBR (Hydrogenated Nitrile): Sour Service and High Performance
Best for: Fracturing (Frac), acidizing, and environments with H2S (Sour Gas).
Characteristics: Enhanced resistance to heat, ozone, and chemicals. Superior abrasion resistance against frac sand and proppants.
Temperature Range: -35°C to +150°C (-31°F to +302°F).
Recommendation: The "Industry Standard" for modern oilfield services. Highly recommended for 15,000 PSI 3" Swivel Joints to ensure maximum uptime.

3. FKM (Fluoroelastomer): High Temp and Chemical Resistance
Best for: Extreme chemical exposure and high-temperature wells.
Characteristics:** Exceptional resistance to high heat, acids, and aromatics.
Temperature Range:-20°C to +200°C (-4°F to +392°F).
Recommendation:Use in high-temperature steam or specific chemical injection lines. Note: Not recommended for low-temperature environments due to potential brittleness.

Custom OEM and Tailored Kit Solutions

We understand that different oilfield service companies have unique maintenance protocols and branding requirements. We offer comprehensive customization options for our Swivel Joint Repair Kits to help you streamline your supply chain and enhance your brand identity.

1. Bespoke Kit Configurations
Beyond our standard Major and Minor kits, we can assemble kits based on your specific maintenance checklists.

2. Custom Packaging and Private Labeling
We can provide heavy-duty, moisture-resistant packaging printed with your company logo, corporate colors, and part numbers.

FAQ

Q: Can I use this kit for a "Short Radius" swivel joint?

A: No. This kit is specifically for the Wide Style (Long Radius)swivel joint. The packing seal dimensions and ball bearing counts differ for Short Radius models. Please contact our technical team if you require Short Radius kits.

Q: How do I identify if I need the HNBR version?
A: If your flowline is involved in hydraulic fracturing (Frac) or if there is any detectable H2S (Hydrogen Sulfide)** content, HNBR is the industry standard to prevent premature seal failure and ensure crew safety.

Q: Is the anti-extrusion ring made of Brass or Stainless Steel?
A: Our standard 15K kits come with Stainless Steel 316 rings for superior corrosion resistance. Brass rings are available upon request for specific standard-service applications.
