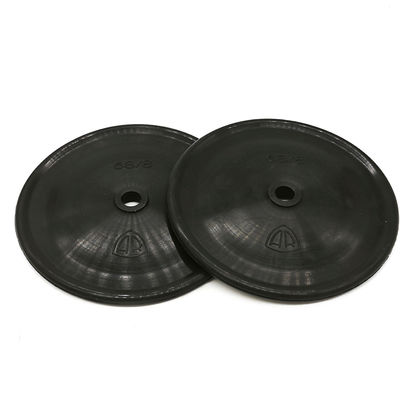

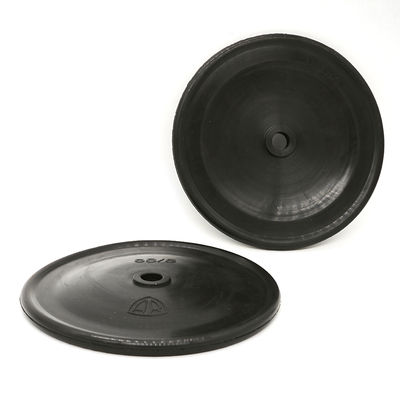

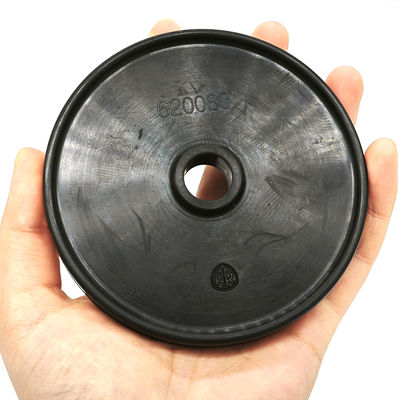

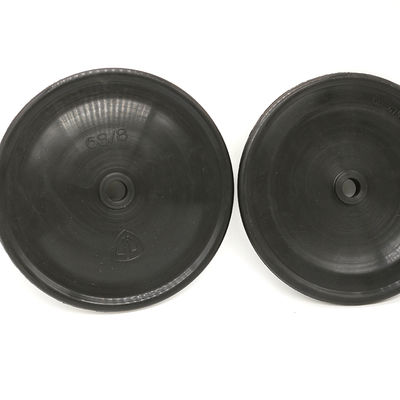

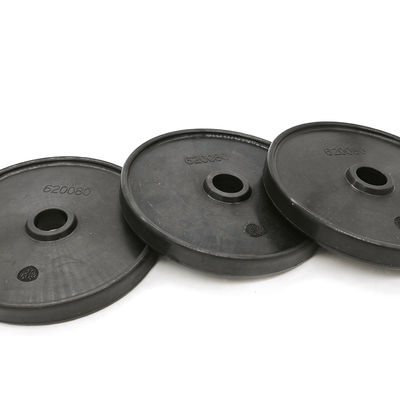

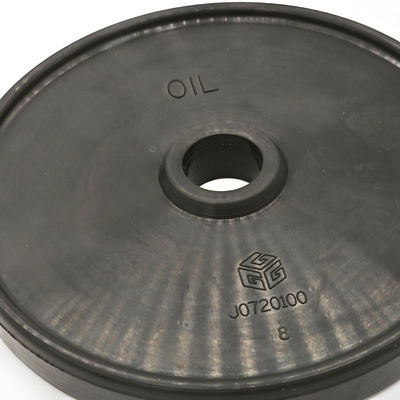

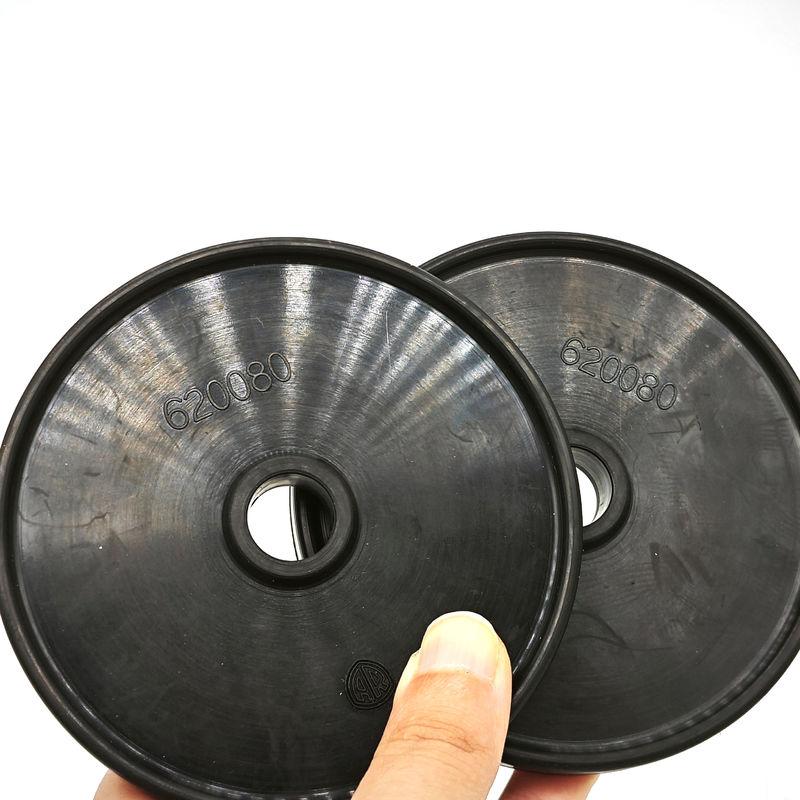

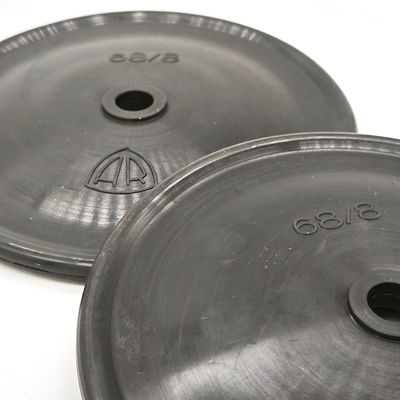

Precision Molded Rubber Membrane for Water Pressure Pumps
This precision-molded NBR rubber membrane is specified for the actual water-pump assembly and movement. Match the molded profile, clamping edge and connection details to the original drawing or sample. Pump sealing, regulation and service life depend on the complete assembly and operating conditions.
One: Product Core: The Nitrile (NBR) Advantage
The existing product uses nitrile rubber (NBR) as the material family. Specify the compound grade and hardness against water chemistry, additives, temperature and repeated movement. Drinking-water use requires the applicable material approval for the supplied compound.
Why NBR for Water Pressure Pumps?
1. Fluid Compatibility: Review the particular NBR grade against water treatment chemicals, oil contamination and cleaning fluids.
2. Repeated Movement: Specify working stroke, frequency and required cycle testing for the actual membrane and housing.
3. Mechanical Requirements: Agree tensile, elongation and tear requirements with the test method and supplied compound specification.
Two: Technical Specifications & Parameters
| Feature |
Detailed Specification |
| Product Name |
Precision Molded Rubber Membrane |
| Material Base |
Premium Nitrile Butadiene Rubber (NBR) |
| Manufacturing Method |
Molded rubber; process confirmed for the approved drawing |
| Standard Hardness |
Shore A requirement per supplied compound specification |
| Operating Temperature |
Compound-specific limits to actual water chemistry and duty |
| Tensile Strength |
Agreed compound requirement and test method |
| Elongation at Break |
Agreed compound requirement and test method |
| Pressure Rating |
Assembly-specific differential pressure and duty to be confirmed |
| Compliance |
ISO9001 |
Three: Key Features & Functional Benefits
1. Molded Fit: Confirm outside profile, edge thickness, clamping features, holes and tolerances for the actual pump housing.
2. Flexing Duty: Review membrane thickness, motion and operating cycles. Agree a durability test for the specified configuration rather than assuming a fixed service life.
3. Water Chemistry: Provide additives, disinfectants, cleaning conditions and abrasive content for compound review.
4. Maintenance: Follow the pump manufacturer’s inspection and replacement procedure, including deposits, cuts, swelling and damage at the clamped edge.
Four: Wide Range of Applications
Our water pressure pump membranes are versatile and trusted across multiple industries:
1. Industrial Water Systems: Drawing-matched replacement membranes for the specified pump or pressure-control assembly.
2. Booster Systems: Confirm the membrane’s role and original component reference; designation alone does not establish brand compatibility.
3. Other Fluids: A separate compound and geometry review is required for oilfield or hydraulic service.
4. Irrigation Equipment: Provide water chemistry, ambient conditions and the actual pump assembly.
5. HVAC and Tanks: Review these as separate components. A pump membrane is not automatically interchangeable with an expansion-tank diaphragm or bladder.
FAQ: Frequently Asked Questions
Q1: How do I specify hot-water operation?
Provide continuous and peak temperature, exposure duration and water chemistry. Confirm limits for the supplied compound and assembly. Alternate polymers require their own fluid, dimensional and duty review.
Q2: How is replacement fit confirmed?
Send the pump manufacturer, model, original part reference and dimensioned drawing or sample. Compare the molded profile, clamping details and center attachment with the original component, then confirm the permitted movement in the housing.
Q3: How is fabric reinforcement specified?
Submit the drawing, membrane motion, pressure differential and reinforcement requirement for review. Confirm fabric construction, bond and qualification for the actual assembly rather than treating reinforcement alone as a pressure rating.
Why Choose Qinuo/Royal Way: Your Manufacturing Partner
Partnering with Qinuo means choosing a high-tech enterprise with a global reputation.
1. Manufacturing Power: Based in the Shanghai Free Trade Zone with two wholly-owned factories in Nantong. We operate 30+ advanced vulcanization presses with a monthly capacity of over 20 tons.
2. Global Export Expertise: We have successfully served clients in over 100 countries, including the USA, Germany, and Canada.
3. Quality Management: ISO 9001 supports manufacturing processes. Agree dimensional, compound and functional inspection requirements for the supplied membrane.
4. Delivery: Confirm tooling status, quantity, production lead time and shipping arrangements for the order.
Contact Us for a Professional Quote
Ready to upgrade your pump systems with our High-Efficiency Rubber Seals? Contact Qinuo today to discuss your technical requirements and get wholesale pricing.
Molded Pump Membrane: Clamping Profile and Movement
For a replacement quotation, identify which edge is clamped and which portion moves. Supply the free-state profile, wall thickness, bead or flange dimensions, mounting holes and center attachment detail where present. Include the working stroke, cycling frequency and pressure difference across the membrane. These details distinguish a pump diaphragm from a tank bladder and help define the correct mold and compound specification.
