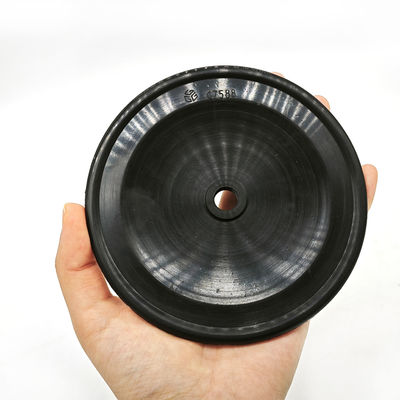

Durable Water Pump Diaphragm Rubber Membrane Manufacturer
This NBR rubber diaphragm is supplied to the specified water-pump drawing or original sample. Confirm the membrane profile, clamping features and working movement for the actual assembly. Material properties and durability are agreed for the supplied compound and operating conditions.
Technical Spotlight: High-Performance Nitrile (NBR) Membrane
Nitrile rubber (NBR) is the material family listed for this diaphragm. Confirm the particular grade against water composition, additives, cleaning fluids, temperature and cycling. Drinking-water applications require the applicable approval for the supplied compound.
Agree the molding process, wall-thickness tolerances, surface requirements and inspection plan for the approved drawing. These manufacturing requirements do not establish complete-pump pressure acceptance.
Key Features & Functional Benefits
1. Fatigue Requirements: Specify stroke, frequency and service conditions, then agree an assembly-relevant cycle test. Define the cycle-test conditions and acceptance criteria for the specified membrane and pump assembly.
2. Compound Selection: Review the supplied NBR grade against the actual water chemistry, oil contamination and cleaning agents.
3. Reinforcement Options: Confirm whether fabric reinforcement is required and specify the construction and bond. Pressure differential and vacuum duty require assembly-specific review.
4. Particulate Exposure: Provide silt, sand or other solids content for wear and service review.
5. Replacement Fit: Compare the profile, edge geometry, attachment details and tolerances with the original part and housing. Confirm the clamping and movement requirements before ordering.
Technical Specifications (Standard NBR Parameters)
| Property |
Value / Detail |
| Primary Material |
Premium Nitrile Butadiene Rubber (NBR) |
| Hardness Range |
Shore A requirement per supplied compound specification |
| Operating Temperature |
Compound-specific limits to actual water chemistry and duty |
| Tensile Strength |
Agreed compound requirement and test method |
| Ultimate Elongation |
Agreed compound requirement and test method |
| Compression Set |
Agreed limit with test method, time and temperature |
| Color |
Industrial Black (Custom colors available) |
| Optional Reinforcement |
Polyester or nylon construction to approved drawing and duty |
Wide Range of Applications
Review each application against its own diaphragm drawing, compound specification and operating duty:
1. Industrial Diaphragm Pumps: Specify dosing-fluid formulation or wastewater composition and the original component reference.
2. Booster Systems: Identify the membrane function and actual assembly; a pump diaphragm is not automatically a pressure-tank bladder.
3. Irrigation: Review water chemistry, ambient exposure and pumping cycles for the specified part.
4. Cooling Equipment: Provide the equipment model, original diaphragm drawing, coolant formulation and operating conditions for replacement selection.
5. Marine and RV Pumps: Confirm pump model and water chemistry, including saltwater exposure where applicable.
Why Partner With Us? (Manufacturer Advantages)
1. Custom Engineering (OEM/ODM): We don't just sell standard sizes. We can develop custom rubber membranes based on your specific drawings or original samples.
2. Quality Control: ISO 9001 supports manufacturing processes. Agree compound test methods, acceptance values and inspection documents for the order.
3. Wholesale Quotation: Provide the drawing or original part reference, selected compound, reinforcement construction and quantity for a bulk-order quotation.
4. Replacement Identification: Provide the original part reference for fit review and agree the required labeling for the order.
5. Shipping: Confirm production lead time and logistics for the approved drawing, quantity and destination.
Frequently Asked Questions (FAQ)
Q: How do I specify chemical exposure?
Provide fluid formulation, concentration, temperature and exposure duration. NBR, EPDM, FKM or silicone options require grade-specific review; the polymer family alone does not establish suitability.
Q: How is a fabric-reinforced diaphragm specified?
Provide the original reinforcement construction or drawing requirement, including fabric material, placement and bond. Confirm molding, motion and qualification requirements for the complete assembly.
Q: How should replacement intervals be set?
Follow the pump manufacturer’s maintenance requirements and review actual cycling, fluid exposure and wear. Record operating cycles and observed wear, and agree the durability test and replacement criteria for the specified assembly.
Company & Factory
Established in 2013 within the Shanghai Free Trade Zone, Qinuo is a high-tech enterprise specializing in rubber seal manufacturing for the Oil & Gas sector. We integrate R&D, production, and sales under our core philosophy: "Quality for Survival, Innovation for Development." This commitment has earned us recognition across global markets, where we currently promote our Royal Way and SHQN brands in the energy industry.
Qinuo provides professional design and production services for rubber parts, plastic components, and machined parts. Our solutions serve diverse sectors including oil & gas, automotive, home appliances, and industrial equipment. Guided by our principles of "High Quality, High Professionalism, High Efficiency," our dedicated team ensures excellence at every stage.
We operate two wholly-owned factories in Nantong City—strategically located just one hour from Shanghai Pudong Airport and Shanghai Port. Equipped with over 30 rubber vulcanization presses and supporting machinery, we produce more than 20 types of rubber seals and related products. Our monthly production capacity exceeds 20 tons (approximately 40,000 lbs), and we continue to expand rapidly.
Operating under a comprehensive ISO9001-based quality management system, we export to over 100 countries including the USA, Canada, UK, Germany, Finland, and Australia. We're confident in our ability to meet your requirements and look forward to a productive partnership.
NBR Pump Diaphragm: Specify Reinforcement Before Molding
State whether the required diaphragm is plain rubber or fabric-reinforced, then identify the construction on the drawing and component list. Provide the clamped edge, flexible area and center connection details. Keep tensile, elongation and compression-set requirements separate from the assembled diaphragm’s cycle and pressure acceptance. For replacement review, include photographs of the original part and identify the pump model alongside its drawing or sample.
