Wireline Cleaning Line Wiper Rubber 3/8"-5/8" H Type With NBR Material For Oil Tubing

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	SHQN
Certification:	ISO 9001
Model Number:	Oil saver rubbers

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	4USD
Packaging Details:	Carton packing
Delivery Time:	7 days
Payment Terms:	L/C,T/T,Western Union,D/P,D/A,
Supply Ability:	5000pcs per week

Contact Now

Detailed Product Description

Size:	Type H Wireline Sizes Listed: 3/8, 9/16 And 5/8 In.; Confirm Actual Cable OD And Housing Fit	Material:	NBR For The Listed H Type; HNBR Alternatives By Application Review
Environment:	Swabbing Electric Line Operations	Color:	Black Or Custom Color
Original:	Shanghai China	Name:	Oil Saver Rubber
Custom:	Available OEM/ODM	Delivey Time:	7-21 Days
Packing:	Plastic Bags + Cartons	Serve:	OEM/ODM
Usage:	Oil, Mud And Debris Wiping From Wireline In A Matched Housing	Hs Code:	4016939000
Trademark:	Royal Way	In Stock:	Confirm Availability For The Selected Bore And Compound
Feature:	Cable-contact Wiping; Wear And Fluid Resistance Depend On Compound And Service	Service:	OEM ODM Customized
Highlight:	Wireline cleaning rubber wiper , NBR oil tubing line wiper , 3/8-5/8 H type wiper

Products preview:

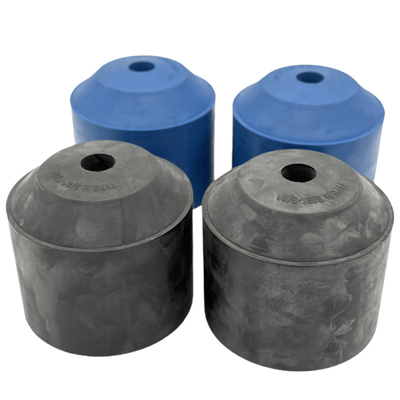

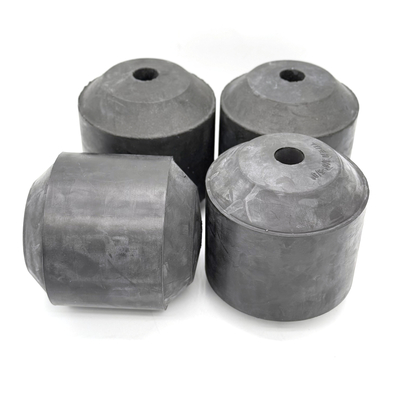

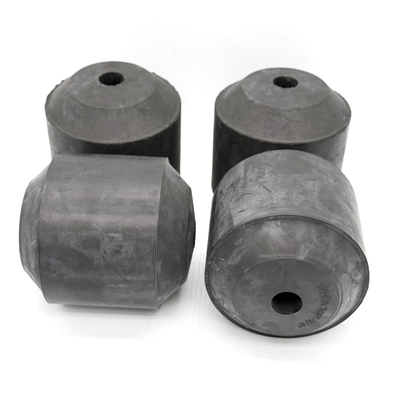

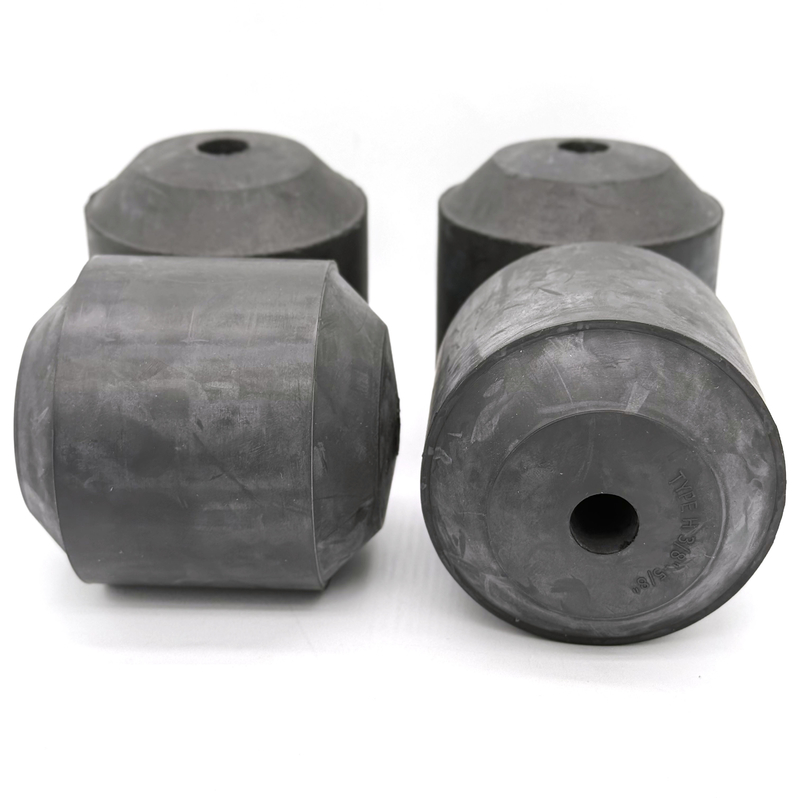

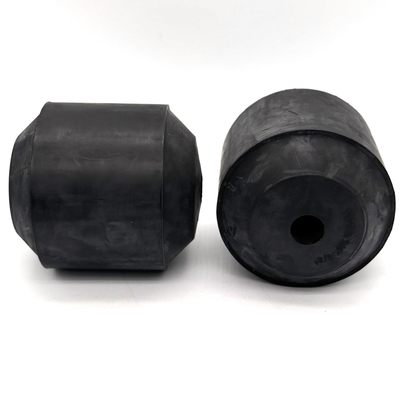

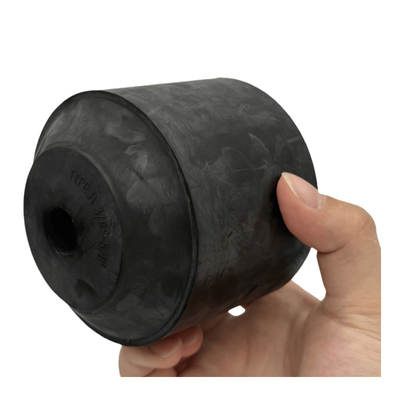

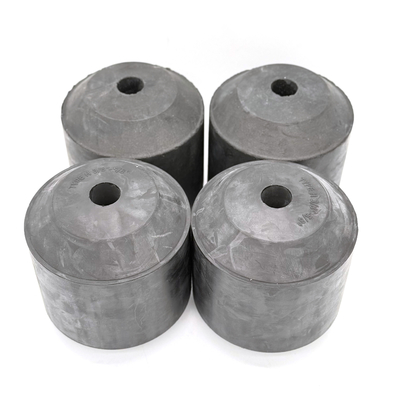

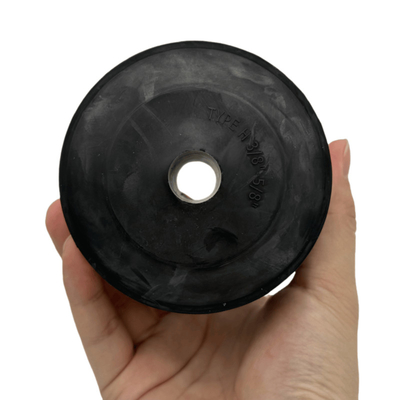

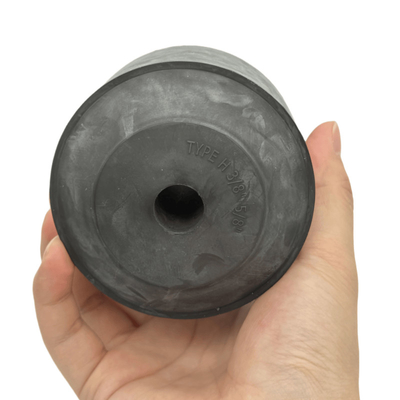

This H Type NBR line wiper rubber is used to remove oil, mud and debris from a moving wireline during well servicing. Choose the replacement by cable diameter and oil saver housing dimensions. The 3/8 to 5/8 inch listing describes wireline size references; it does not specify the tubing connection or establish pressure capacity.

Wireline Cleaning Line Wiper Rubber 3/8"-5/8" H Type With NBR Material For Oil Tubing

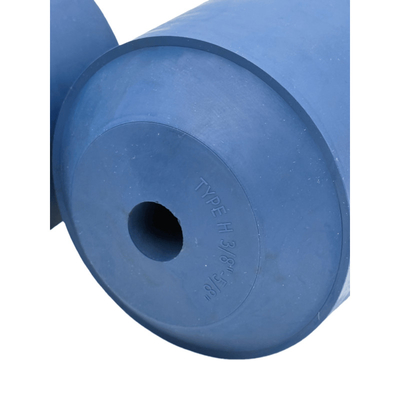

For this Type H line wiper, the original product range lists 3/8 inch, 9/16 inch and 5/8 inch wirelines. Confirm the required cable outside diameter, bore, body dimensions and housing reference before ordering. Tubing or line-pipe outside diameter does not identify the correct rubber bore.

Factory Outlet:

Shanghai Qinuo Industry Co., Ltd, founded in 2013, has more than a decade of experience in producing and supplying rubber fittings for the oil and gas industry. With annual sales exceeding $10 million and a strict ISO9001 quality system, our wholly owned Nantong Ruowei Seal factory is equipped with 30+ vulcanizing machines and advanced facilities. We manufacture over 20 types of seals, O-rings, and customized rubber components for demanding applications. With a monthly capacity of over 40 tons, our products are trusted by customers in more than 100 countries worldwide.

Wireline Cleaning Line Wiper Rubber 3/8"-5/8" H Type With NBR Material For Oil Tubing

ISO 9001 Quality Management:

Wireline Cleaning Line Wiper Rubber 3/8"-5/8" H Type With NBR Material For Oil Tubing

NBR and HNBR are material options listed for this product. Select the specific compound against the oil formulation, temperature, cable speed and abrasive contamination. FKM or EPDM alternatives require a separate compatibility review; EPDM must not be assumed suitable for petroleum-oil exposure.

Correctly fitted line wipers help collect oil and debris from the cable during retrieval. Inspect the contact surface and replace worn or damaged rubber according to the equipment maintenance procedure. Well-pressure control depends on the complete approved assembly and operating procedure.

Wireline Cleaning Line Wiper Rubber 3/8"-5/8" H Type With NBR Material For Oil Tubing

Features of oil saver rubbers

Cable-contact wiping; pressure containment subject to the complete assembly rating
Cleans wire line to keep Job site clean and safe.

Material	oil resistant, wear-resisting, high performance compounds
Size	Type H wireline sizes listed: 3/8 in., 9/16 in. and 5/8 in.; confirm cable OD, rubber bore and housing fit
Brand	SHQN
Color	Black or custom color
Custom service	OEM/ODM

Application:

Swabbing Wireline Operations

Use this Type H oil saver rubber for cable wiping in a matched wireline servicing assembly. The rubber alone has no established 15,000 psi rating. Provide the oil saver manufacturer, housing drawing and assembly pressure documentation when pressure-containing service is required. Confirm connection dimensions separately from the cable bore.

Production Pictures:

Wireline Cleaning Line Wiper Rubber 3/8"-5/8" H Type With NBR Material For Oil Tubing

Packing:

Cartons, Pallets if necessary

Wireline Cleaning Line Wiper Rubber 3/8"-5/8" H Type With NBR Material For Oil Tubing

Welcome to contact us for quotation.

www.unionseal.com

NBR H Type Wireline Cleaner: Fluid Exposure and Wiping Contact

For an NBR wireline cleaning replacement, identify the oil or service fluid and any cleaning chemicals carried on the cable. Include normal and peak temperature, cable speed and abrasive solids so the compound can be reviewed for the actual duty.

Wiping effectiveness depends on the rubber bore, cable surface and adjustment in the matched housing. Send the cable construction, measured diameter and worn-part dimensions. Excess contact can increase drag and wear; use the equipment maker's adjustment procedure.

Type H, Type 410 and Type C CL parts require separate housing checks. Pressure-containing or sour-gas service needs assembly ratings and compound-specific qualification. Polymer name and nominal bore alone do not establish those capabilities.
