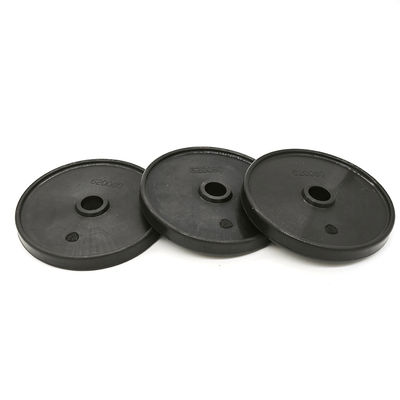

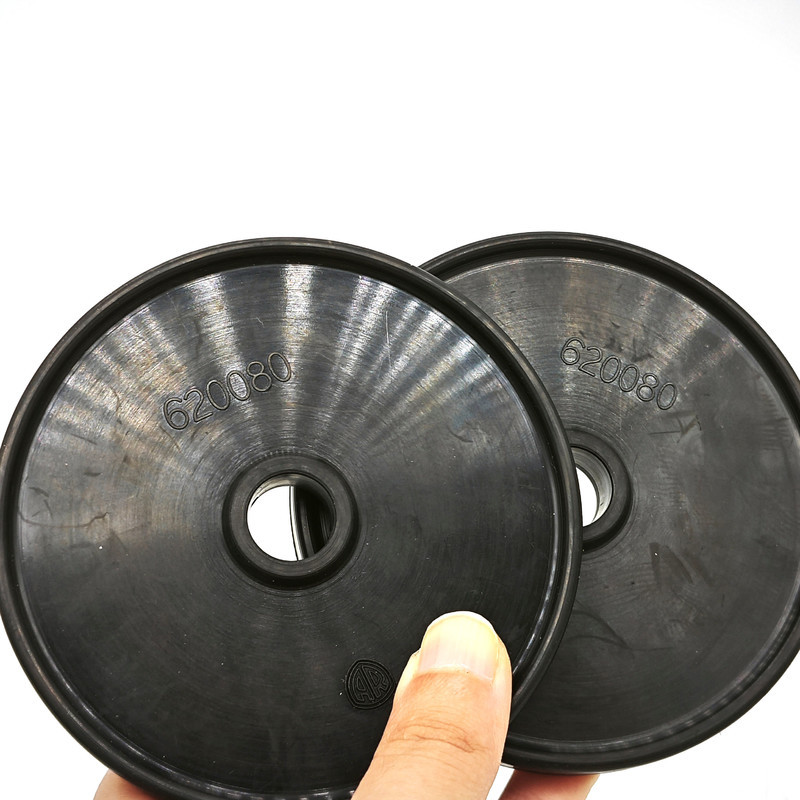

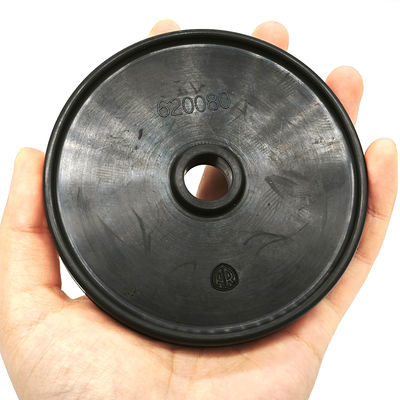

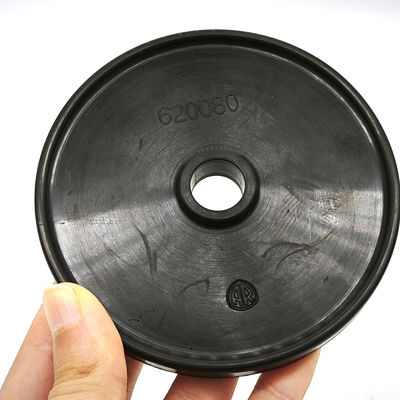

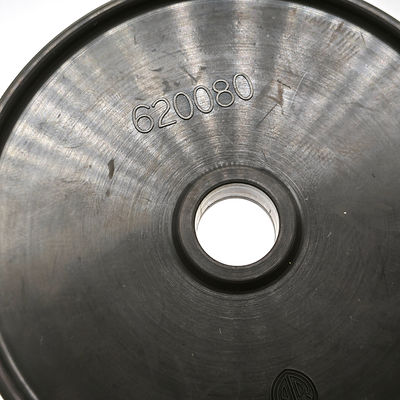

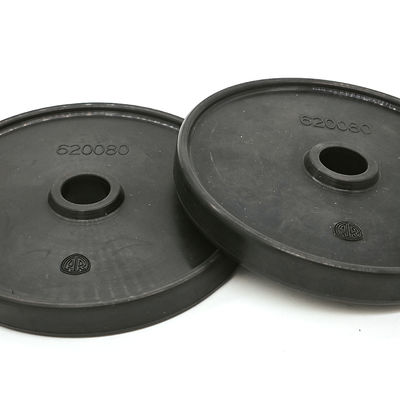

620080 Model Oil Resistant Nitrile NBR Diaphragm Membrane Gasket

Product Description

This 620080 model NBR diaphragm membrane gasket is offered for replacement and custom-part inquiries. Match the part reference to the equipment maker, membrane profile and clamping dimensions before ordering. NBR material is reviewed against the actual oil or process fluid, operating temperature and flexing duty.

The retained pump membrane catalog and other model references describe the wider product range. They do not establish that 620080 fits every AR40, AR30 or D30 assembly. Provide the original parts list or a sample drawing for exact identification.


SHQN® Pump Membrane Catalog.pdf






Company Profile

Shanghai Qinuo Industry Co., Ltd, established in 2013 within the Shanghai Free Trade Zone, is a pioneering high-tech enterprise specializing in the integration of research and development, production, and sales. Embracing the ethos of "Quality for Survival, Innovation for Development," we have garnered a stellar reputation domestically and internationally under the esteemed brand names of "Royal Way^®" and "SHQN^®".

• Our company boasts cutting-edge production equipment both domestically and internationally, complemented by superior manufacturing techniques, a seasoned team of technical experts, and a comprehensive quality assurance framework.

• We specialize in offering OEM/ODM services, leveraging our multiple 150T/200T/300T vacuum vulcanizing machines to fulfill diverse production needs.

• Furthermore, our workshop has integrated the latest vacuum vulcanizing machine available in the market, capable of churning out 2500 molds per day to meet client demands. Employing vacuum pressurization, this machine effectively minimizes product defects while ensuring operational safety.




Best Selling

 Hammer Union Seal

Swivel Joint Repair Kit

Redress Kit

FAQ

Q1. Are you a factory or trading company?
We have two wholly-owned factories in Nantong City, only an hour's drive to Shanghai Pudong Airport or Shanghai Sea port to ensure the quick delivery.

Q2. What's your sample policy ?
We can supply the sample if we have ready parts in stock, but customized parts have to pay the mold fee.

Q3. Can you produce according to the samples or drawings?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q4. What's your Delivery time ?
If the good are in stock generally it is 5-7 working days after receiving your payment. About 7-15 working days if we have mold or 21-30 working days without mold. The specific delivery time depends on the items and quantity of your order quantity.

Q5.What's your payment terms?
For sample and small order, 100% T/T or Paypal. For bulk order, T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q6. Why choose to cooperate with you? What's your advantage?
1). Strong point:We have our own factory,so we can quarantee high quality with a reasonable and favorable price 2). We can offer you a good after-sell service, prompt deliver. 3). We can provide various size and colors according to customers' requirements. 4). By long time testing, quality proved to be excellent. 5). Updated product design. 6). Advanced manufacturing process, composite global standards. 7). We win by the high quality and then have a long-term business relationship.

Q7. How do you make our business long-term and good relationship?
1). We keep good quality and competitive price to ensure our customers benefit; 2). We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from. Our oil and gas parts are diverse and extensive, so if there is no item what you need, we encourage you to send the drawing or samples to us.

620080 NBR Membrane: Clamping Profile and Flex-Cycle Requirements

Specify membrane outside diameter, active flexing diameter, overall height, clamping-bead shape and any central hole or insert. Include thickness at the flexing zone and edge, with tolerances and a sectional drawing. A model number without these dimensions does not establish fit.

For replacement duty, provide fluid formulation, normal and peak temperature, pressure on each side, stroke or deflection and operating cycle rate. Identify any fabric reinforcement or metal insert from the original part; these construction details require confirmation for this model.

Use the selected NBR compound data and complete equipment specification to set operating limits. Send the required quantity and inspection criteria for the quotation; FKM or silicone alternatives require separate compatibility and dimensional review.
