High-Performance Multi-model Diaphragm Membrane Gasket OEM Available

Product Description

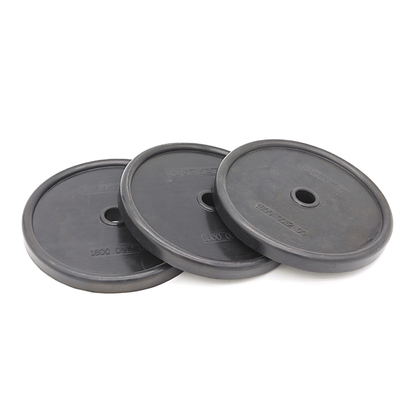

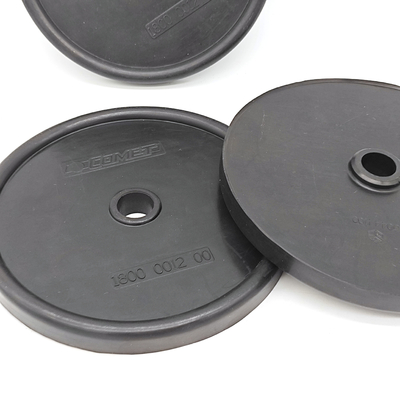

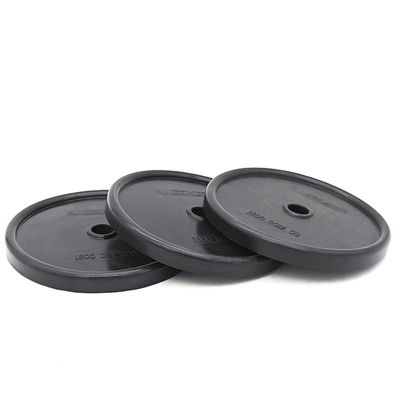

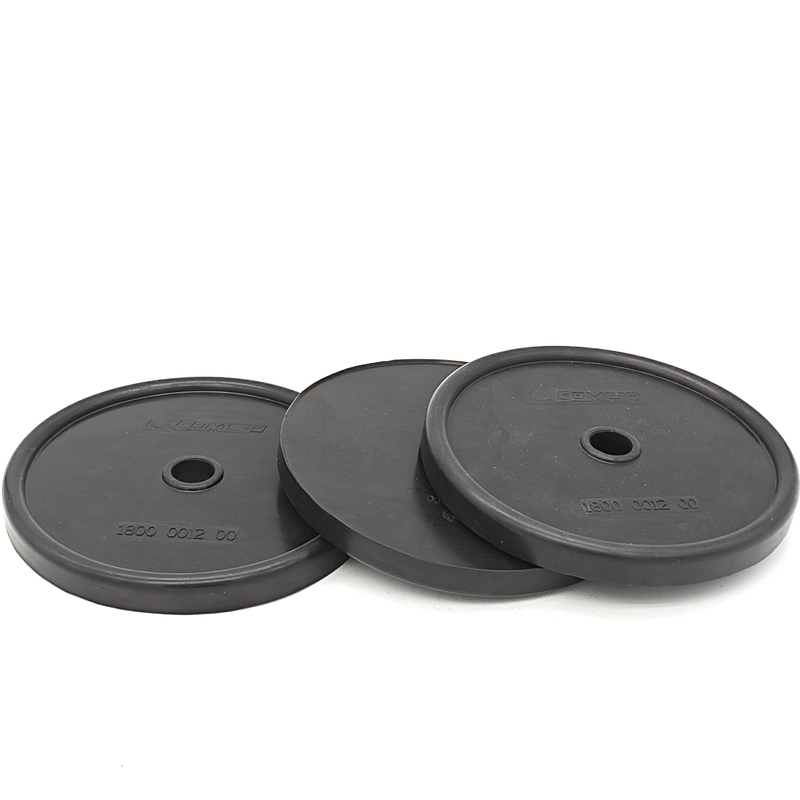

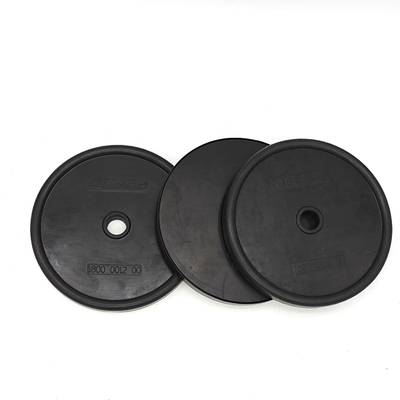

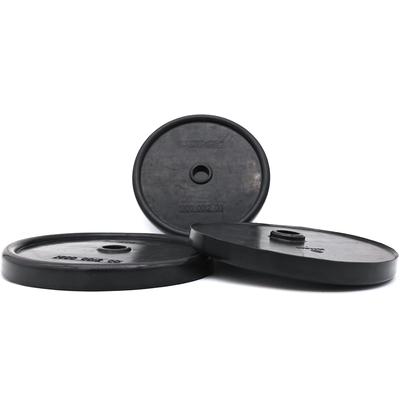

This multi-model diaphragm membrane gasket listing covers OEM replacement and custom molding inquiries. Identify each pump or accumulator model, original part reference and membrane construction before choosing a replacement. AR30, AR40 and D30 references require separate fit checks.

NBR and FKM are listed compound families; review the actual fluid, temperature and flexing conditions for each part. Send the drawing or sample with critical dimensions and required quantity for mold and compound review.


SHQN® Pump Membrane Catalog.pdf






Company Profile

Shanghai Qinuo Industry Co., Ltd, established in 2013 within the Shanghai Free Trade Zone, is a pioneering high-tech enterprise specializing in the integration of research and development, production, and sales. Embracing the ethos of "Quality for Survival, Innovation for Development," we have garnered a stellar reputation domestically and internationally under the esteemed brand names of "Royal Way^®" and "SHQN^®".


• Our company boasts cutting-edge production equipment both domestically and internationally, complemented by superior manufacturing techniques, a seasoned team of technical experts, and a comprehensive quality assurance framework.

• We specialize in offering OEM/ODM services, leveraging our multiple 150T/200T/300T vacuum vulcanizing machines to fulfill diverse production needs.

• Furthermore, our workshop has integrated the latest vacuum vulcanizing machine available in the market, capable of churning out 2500 molds per day to meet client demands. Employing vacuum pressurization, this machine effectively minimizes product defects while ensuring operational safety.




Best Selling

Rubber O Ring	Hammer Union Seal
Swivel Joint Repair Kit	Plug Valve Soft Seal
Oil Saver Rubbber	Oil Packer Element


FAQ

Q1. Are you a factory or trading company?
We have two wholly-owned factories in Nantong City, only an hour's drive to Shanghai Pudong Airport or Shanghai Sea port to ensure the quick delivery.

Q2. What's your sample policy ?
We can supply the sample if we have ready parts in stock, but customized parts have to pay the mold fee.

Q3. Can you produce according to the samples or drawings?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q4. What's your Delivery time ?
If the good are in stock generally it is 5-7 working days after receiving your payment. About 7-15 working days if we have mold or 21-30 working days without mold. The specific delivery time depends on the items and quantity of your order quantity.

Q5.What's your payment terms?
For sample and small order, 100% T/T or Paypal. For bulk order, T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q6. Why choose to cooperate with you? What's your advantage?
1). Strong point:We have our own factory,so we can quarantee high quality with a reasonable and favorable price 2). We can offer you a good after-sell service, prompt deliver. 3). We can provide various size and colors according to customers' requirements. 4). By long time testing, quality proved to be excellent. 5). Updated product design. 6). Advanced manufacturing process, composite global standards. 7). We win by the high quality and then have a long-term business relationship.

Q7. How do you make our business long-term and good relationship?
1). We keep good quality and competitive price to ensure our customers benefit; 2). We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from. Our oil and gas parts are diverse and extensive, so if there is no item what you need, we encourage you to send the drawing or samples to us.

OEM Multi-Model Membranes: Drawing Revision and Sample Approval

Define the membrane profile, clamping bead, thickness distribution and center attachment on a controlled drawing. Identify any reinforcement or insert and specify the mating assembly dimensions; similar external shape does not establish equivalent flexing behavior.

For an OEM sample, agree the critical measurement locations, hardness tolerance and functional test conditions. Provide stroke or deflection, cycle frequency, differential pressure and fluid exposure so the sample review reflects the intended application.

Approve each model and drawing revision separately before production. State packaging identification, inspection requirements and order quantity with the inquiry. Material or geometry changes require a new compatibility and fit review.
