| Place of Origin: | China |
| Brand Name: | Royal Way |
| Certification: | ISO 9001 |
| Model Number: | 68/8 |
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | USD$0.8/PC-$1/PC |
| Packaging Details: | Carton/pallet |
| Delivery Time: | 7 days according to the quantity of order |
| Payment Terms: | T/T, Western Union, L/C, Paypal,Bank transfer |
| Model: | 68/8 | Size: | Original 10 X 120 X 7 Mm; Dimension Order And Tolerances To Confirm |
|---|---|---|---|
| Color: | Black Color | Weight: | Original 70 G Reference; Actual Weight By Approved 68/8 Design |
| Material Choice: | NBR Or FKM; Compound Selected For Fluid And Flexing Duty | Feature: | Fluid Compatibility And Flexing Performance By Approved Compound And Geometry |
| Application: | Replacement 68/8 Pump Membrane; Exact Pump Fit To Confirm | Service: | OEM ODM |
| Samples: | Available | MOQ: | 500pcs |
| Delivery Time: | 7days | Packaging: | Carton |
| Shipping Method: | By Express, By Air, By Sea, By Car | ||
| Highlight: | NBR rubber membrane for water pump,FKM rubber pump membrane,68/8 model rubber membrane |
||
High quality NBR or FKM rubber membrane
Product Features
Premium Nitrile Butadiene Rubber (NBR) material offering excellent oil/fuel resistance
Membrane thickness and formed profile by the approved 68/8 drawing; confirm flexing and pressure requirements
Confirm whether fabric reinforcement is required for the selected diaphragm design
Temperature range: confirm for the selected NBR or FKM compound and pumped fluid
Key Benefits
✓ Superior chemical resistance to oils, fuels, and water-based fluids
Flexing endurance depends on compound, geometry, stroke and service conditions; agree the required test
✓ Customizable configurations for OEM pump designs
✓ Cost-effective solution with extended service life
Typical Applications
• Fuel transfer pumps
• Hydraulic diaphragm pumps
• Industrial fluid handling systems
• Water treatment equipment
Produced under our ISO 9001 quality management system; pump fit and operating performance are confirmed for the selected design. Available in various diameters and shore hardness options.

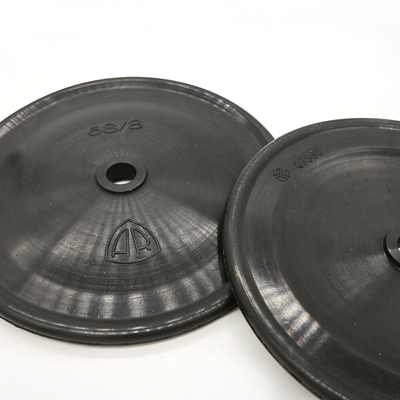

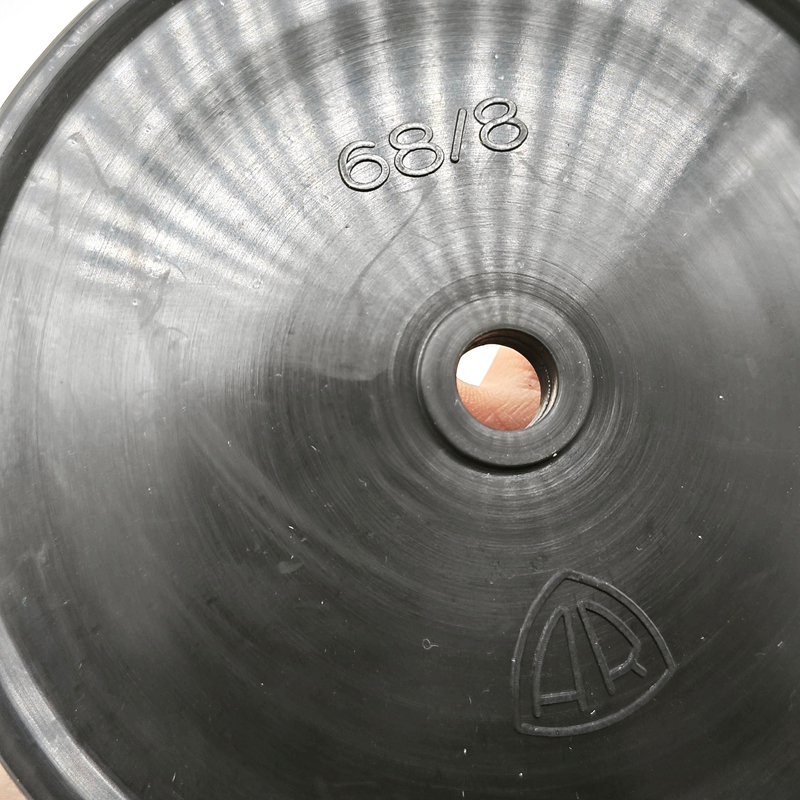

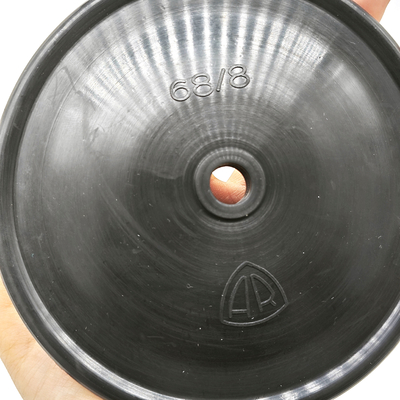

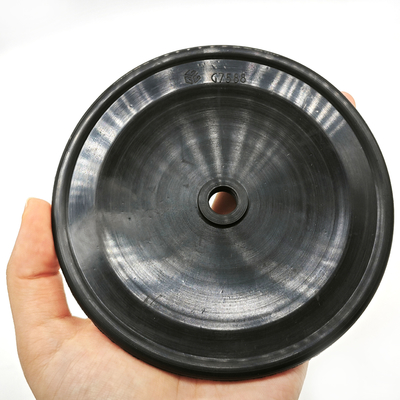

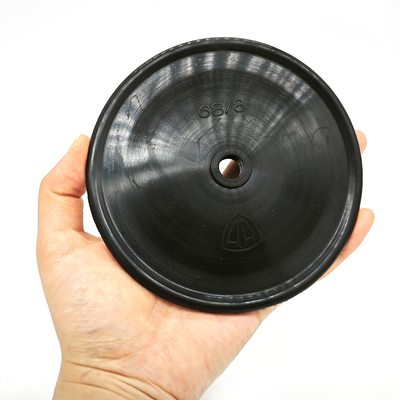

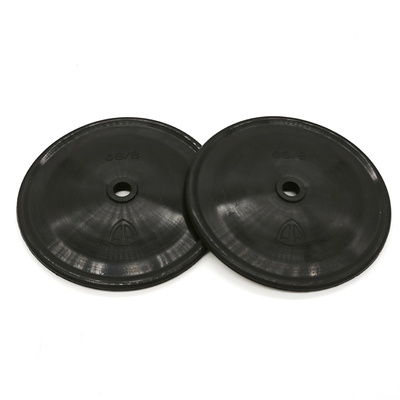

Product photos
![]()
![]()
![]()
![]()
![]()
![]()
Company&Factory
Shanghai Qinuo Industrial Co., Ltd. has been engaged in the oil and gas accessories industry for more than ten years, and has accumulated rich production and foreign trade experience during this period. In addition to oil accessories, in recent years we have also independently developed a batch of high-quality water pump equipment rubber accessories. Hot-selling products include swivel joint repair kit, redress kit, plug valve soft seal kit and rubber membrane, etc.
Our factory, located in Nantong, Jiangsu, boasts independent R&D facilities, production workshops, sample testing facilities, and packaging rooms. We are committed to providing you with efficient and high-quality service. If you have any questions about rubber accessories, please contact us.
![]()
![]()
![]()
![]()
![]()
![]()
Our best-selling products
We have been deeply involved in the rubber seals industry for over ten years, continuously updating and optimizing our products. Our best-selling products include: Hammer union seal, rubber o ring, swab cup, oil saver rubber, oil packer, rubber bung stopper and rubber door stopper, etc. If you have any requirements of rubber parts, welcome to contact us!
![]()
![]()
![]()
![]()
![]()
![]()
Pump membrane model 68/8 has listed nominal dimensions of 10 x 120 x 7 mm and a nominal weight of 70 g. Confirm which dimensions describe the centre opening, outside diameter and formed height or thickness on the drawing. Weight is an identification aid and does not establish pump fit.
Match the rim profile, centre fixing and clamping arrangement to the exact pump model. Confirm membrane thickness at the flexing zone separately from overall height, and identify any fabric reinforcement or bonded components. The general 1-5 mm thickness statement should not replace the approved dimensions for this part.
Select NBR or FKM for the actual fluid, additives, temperature and flexing cycle. Provide stroke, cycle rate and differential pressure where available so sample inspection and endurance requirements can be agreed. Hydraulic accumulator membranes require a separately confirmed design and application; do not assume interchangeability from the 68/8 reference alone.
