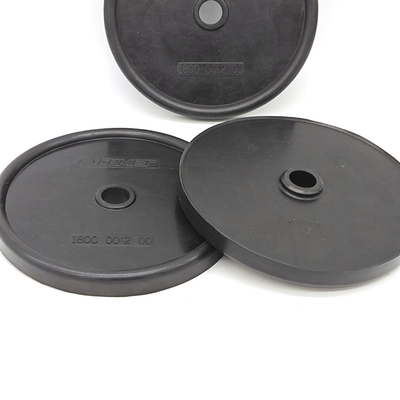

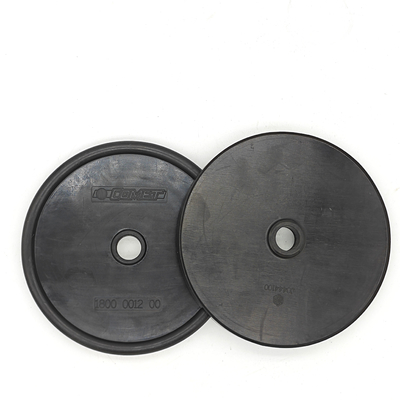

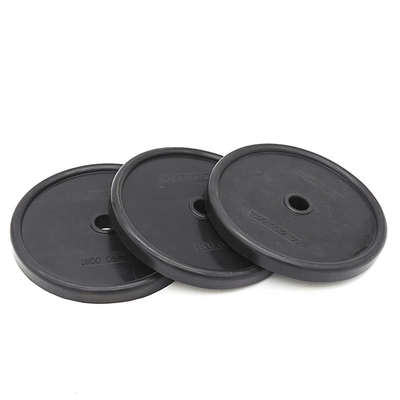

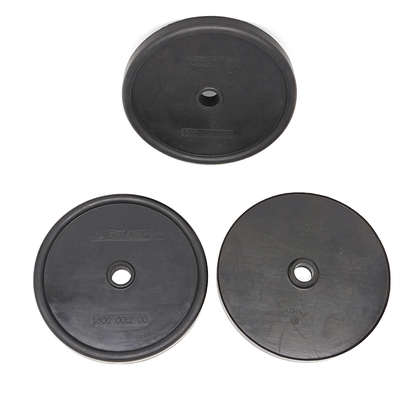

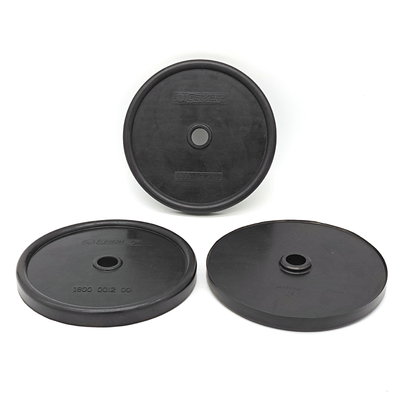

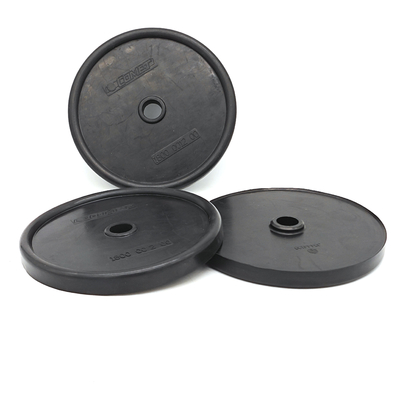

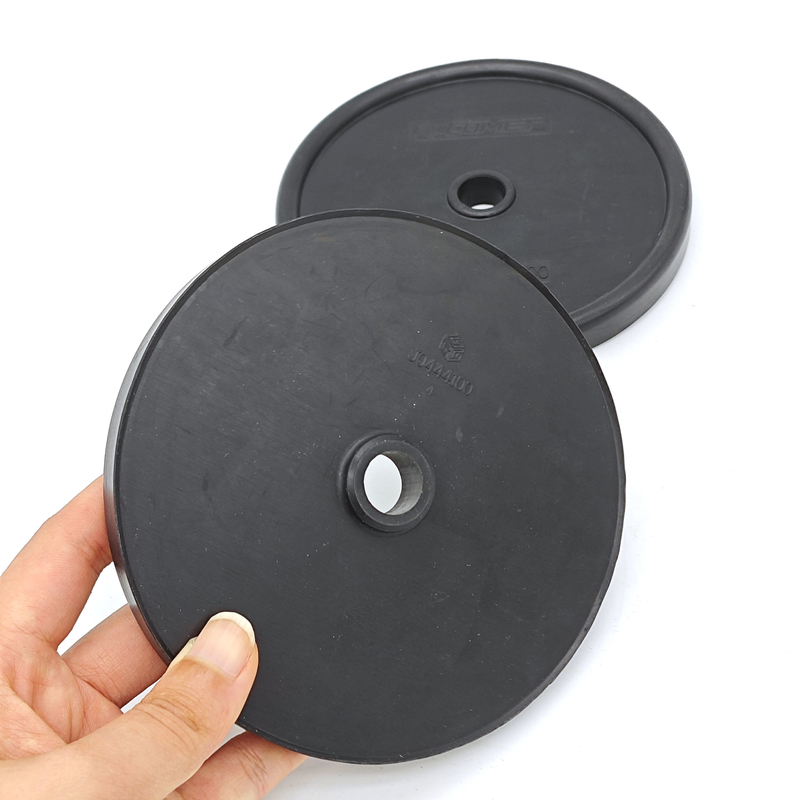

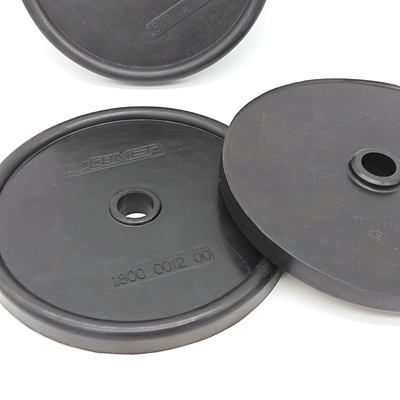

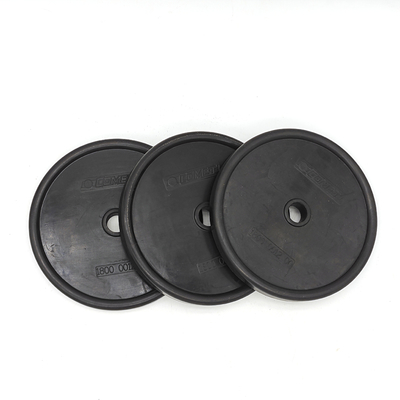

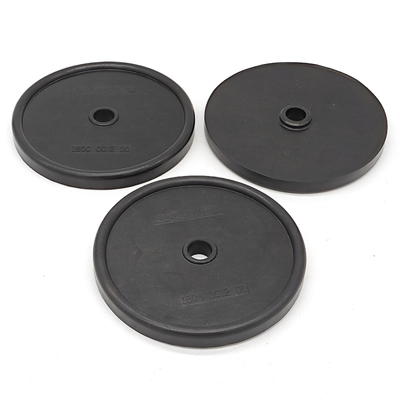

This replacement pump diaphragm is identified by reference 1800 0012 00. NBR is the material named in this listing, with FKM options subject to review for the actual fluid and flexing duty. AR40, AR70 and D30 are original pump-model references; confirm compatibility with the exact pump and drawing. Hydraulic accumulator diaphragms require a separately confirmed design.
The models we can currently provide are 620080, 550190, 1800 0012 00, 1040081, 180034, 2240080, 550080, 0904.009, 1800/88, 68/8, etc. We are very confident in the quality of our products. Confirm dimensions and sample availability for each requested reference before ordering.
We also accept customized models, offer discounts for large quantities, and give you the most favorable factory price. We also support sample testing and inspection. We hope to establish friendly cooperation with you.
Company and factory Introduction
Shanghai Qinuo Industrial Co., Ltd. has been engaged in the oil and gas accessories industry for more than ten years, and has accumulated rich experience in production and foreign trade during this period. In addition to oil accessories, in recent years we have also independently developed a batch of water pump equipment rubber accessories, such as swivel joint repair kit, redress kit, plug valve soft seal kit, pump membrane, etc. These products have received unanimous praise from our customers, with a repurchase rate of up to 90% for our water pump gaskets.
Our factory is located in Nantong, Jiangsu Province, with independent R&D room, production workshop, sample testing workshop and packaging room. We can provide you with efficient service.
1800 0012 00 Pump Diaphragm: Confirm the 14 x 126 x 12 mm Dimension Order
Pump diaphragm reference 1800 0012 00 has listed nominal dimensions of 14 x 126 x 12 mm. Confirm which number represents the centre opening, outside diameter and height or thickness on a dimensioned drawing. Do not assume the measurement order from the text alone.
Match the diaphragm to the exact pump manufacturer and model, including the clamping rim, centre fixing and formed profile. Compare any reinforcement or bonded component with the existing part. The other references listed on this page identify separate range options rather than interchangeable replacements for 1800 0012 00.
The heading specifies NBR, with FKM offered as a material option subject to review. Select the formulation for the pumped liquid, additives, temperature and flexing duty; changing material requires a fit and service review. Agree dimensional inspection, sample installation and the required endurance check before approving repeat purchases.
