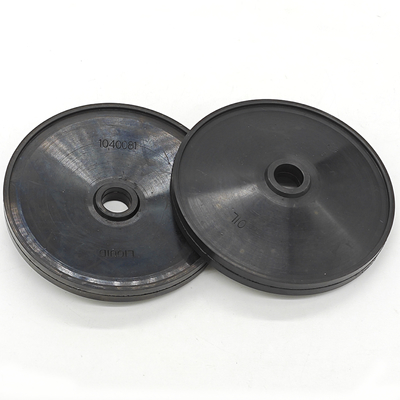

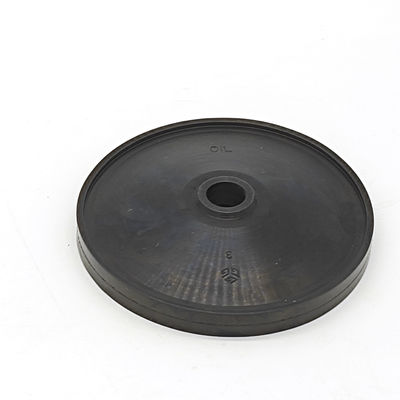

1040081 Rubber Diaphragm Enquiries for AR30 Pump Replacement
The 1040081 reference identifies the pump diaphragm enquiry; confirm the AR30 model, manufacturer and parts-list revision before selecting a replacement.
NBR and FKM are material options requiring the approved compound and diaphragm construction. Specify the pumped liquid and cleaning exposure for
compatibility review, together with operating temperature, pressure and cycle requirements. Related
AR40, AR70 and D30 references describe separate pump applications that need individual parts matching. The retained part references
are listed below; they do not establish cross-model interchangeability:
Match the 1040081 Diaphragm Profile and Pump Service
Provide the AR30 pump manufacturer, serial or revision reference and replacement part number. Include the diaphragm outside dimensions, thickness profile, mounting features and any reinforcement shown on the approved drawing. Match a sample only against the confirmed pump construction.
Specify NBR or FKM by the approved compound reference. Include pumped-fluid composition, additives, cleaning products and operating cycles. Temperature and chemical suitability must apply to the actual compound and diaphragm design.
Agree sample fit, dimensional inspection and pump acceptance requirements before quantity supply. Confirm any required product-specific documents and warranty terms with the quotation. The general diameter range is not the finished dimension of part 1040081.
| 2240080 |
904009 |
50-100-22 |
180012 |
180034 |
| 1040081 |
550080 |
550190 |
202001(IP) |
904008 |
Packing and Shipping:
Shipping:
Pump diaphragm packing, dispatch timing and shipment method are confirmed with the quotation according to quantity and destination.
