| Place of Origin: | Shanghai, China |
| Brand Name: | Royal Way |
| Certification: | ISO 9001 |
| Model Number: | Thread Protector |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | US $ 2.5-3 |
| Packaging Details: | 40*40*40 carton |
| Delivery Time: | 7-15 days |
| Supply Ability: | 500000PCS Per Month |
| Service: | OEM ODM Available | Application: | Drill-pipe Thread Protection During Handling And Storage |
|---|---|---|---|
| Nearest Port: | Shanghai | Shape: | Cylindrical |
| Material: | HDPE Or PP; Specify Selected Grade | Color: | Black, Accept Custom Color |
| Style: | Pipe Thread Protectors | Durability: | To Agreed Handling, Storage And Reuse Requirements |
| Type: | NC, FH, IF, REG, EUE Or DSTJ Enquiry; Confirm Exact Drawing | Feature: | Pin Caps And Box Plugs; Fit To Specified Connection |
| Transport Package: | Plastic Bag+Carton+Pallet | Trademark: | Royal Way |
| HS Code: | 3926909090 | Material Choice: | PP And HDPE |
| MOQ: | 50sets | Stock: | Confirm Availability For Selected Connection And Quantity |
| Shipping Method: | By Truck, By Express, By Air, By Sea | Specification: | Connection Designation, Nominal Size And Pin/box Drawing |
| Production Capacity: | 50000sets/Month | ||
| Highlight: | PP Material Plastic Thread Protector,HDPE Plastic Thread Protector |
||

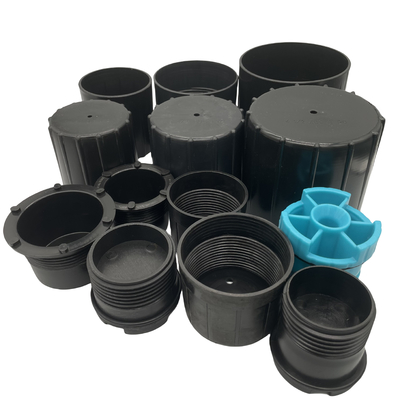

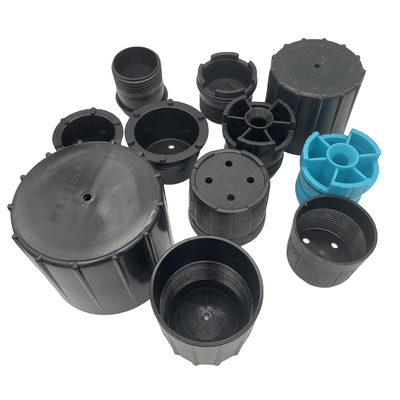

Royal Way offers HDPE or PP plastic thread protectors for drill-pipe handling and storage. Pin-end caps and box-end plugs are selected separately.

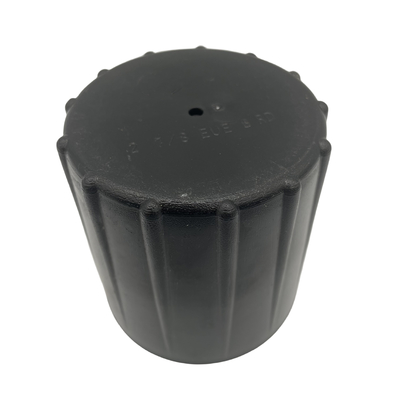

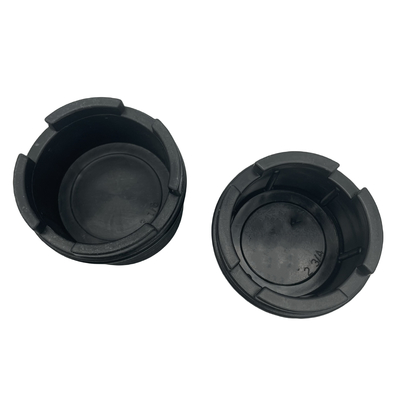

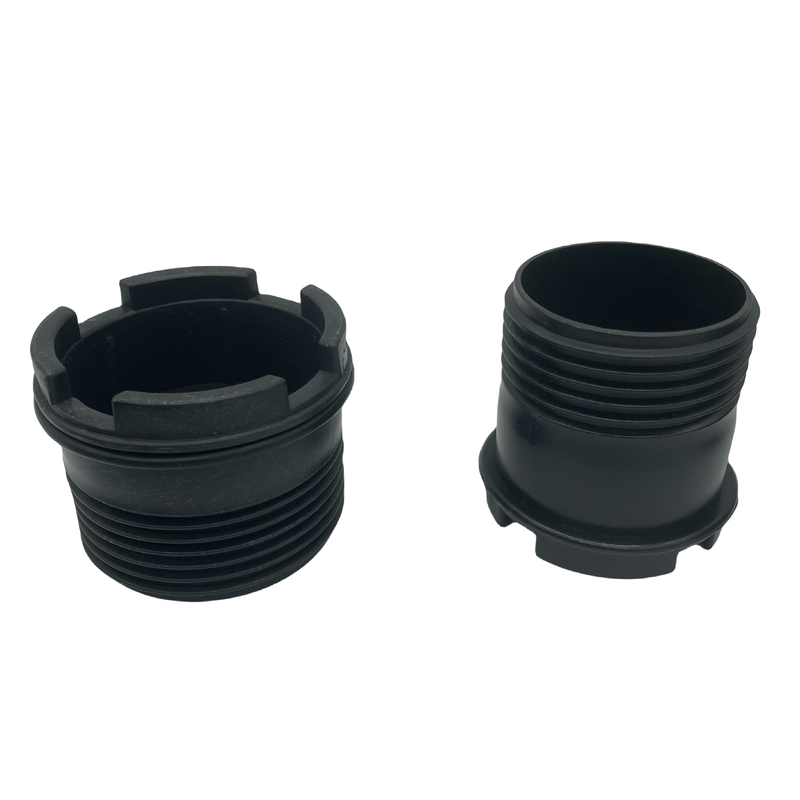

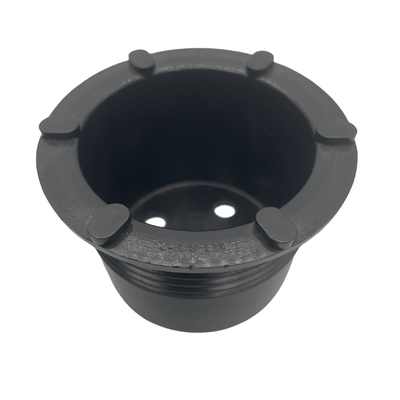

Pin-end protectors cover external connection threads; box-end protectors fit internal connection threads.
Confirm the exact connection designation and drawing before fitting either cylindrical protector.
Select protectors for the specified drill-pipe connection; casing and tubing connections require their own matching designs.
Provide nominal pipe size, connection size and pin or box quantity so that the thread fit can be reviewed.
NC, FH, IF, REG and other listed designations are enquiry options subject to exact fit confirmation, rather than universal interchangeability.
State the complete connection designation, nominal pipe size, pin-end and box-end quantities, and preferred HDPE or PP grade. Include the connection drawing or a sample for an unfamiliar thread. Similar pipe outside diameters do not establish matching thread form or engagement.
Specify outdoor storage duration, handling impacts, contact fluids and reuse requirements when comparing material options. Agree inspection criteria for thread fit, coverage and removal before ordering. Manufacturing is managed under ISO 9001; any standard-specific conformity requirement needs agreement for the actual product design.
| Machine Type | Drilling Tool |
| Durability | To agreed handling and storage requirements |
| Style | Pipe Thread Protectors |
| Thread Size | Customization Available |
| Sample | Confirm sample availability and terms |
| Application | Oil And Gas Industry |
| Color | Black |
| Service | OEM, Or ODM |
| Thread Protection Type | Pin Or Box |
| Size | Various Sizes Available |
Plastic protectors help shield threaded connections during handling and storage. Specify any required dimensional stability, torque,
vibration, impact, corrosion or disengagement tests with the order; qualification must relate to the selected protector design.
Confirm operating and storage temperature limits for the selected HDPE or PP grade and construction.
Feature:
1.Handling protection to agreed requirements
2.Storage exposure and duration to be specified
3.Reuse and wear requirements to be reviewed
4.Temperature limits to selected material grade
5.Fluid and chemical exposure to be reviewed
Application:
1.Protect threaded connections
2.Support storage protection with the specified preservation method
3.Help limit contamination of covered threads; not a pressure closure
4.Retain protection during the agreed handling conditions
Product Packaging:
Specify separate pin and box counts or complete sets. Confirm carton quantity, bagging, labels and pallet requirements for the selected protector size and shipment.
Shipping:
Confirm availability, production lead time and shipping route with the quotation. Dispatch and transit times depend on connection size, quantity, packaging and destination.
