| Place of Origin: | Shanghai, China |
| Brand Name: | SHQN |
| Certification: | ISO 9001 |
| Model Number: | Type H oil saver rubber; confirm head drawing |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | 0.2-3 |
| Packaging Details: | Carton packing |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000pcs per week |
| Size:: | 3/8 To 5/8 Inch Line Reference; Confirm Selected Opening | Material:: | NBR Or HNBR; Confirm Compound And Color Specification |
|---|---|---|---|
| Environment:: | Type H Swabbing Head Replacement; Verify Line Compatibility | Color: | Blue Option; Confirm Shade And Compound; Custom Colors |
| Original: | Shanghai China | Name: | Oil Saver Rubber |
| Custom: | Available OEM/ODM | ||
| Highlight: | Swabbing Equipment Oil Saver Rubbers,Wire Line Wiper Oil Saver Rubbers,Custom Oil Saver Nitrile Rubber |
||

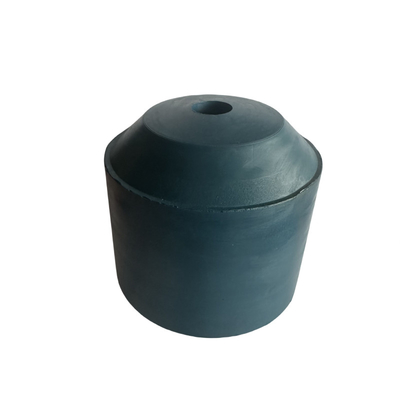

SHQN Blue Type H Oil Saver Rubbers for Swabbing Head Replacement
![]()
Oil Saver rubbers are replacement wiping elements for a compatible Type H head used during swab-string retrieval. Confirm the head model and component dimensions before selecting the rubber.
Pressure capability is determined by the rated head assembly and its approved rubber arrangement; the replacement element alone does not establish a working-pressure rating.
The rubber contact area wipes carried fluid from the retrieved line. Specify the line diameter, surface construction and head adjustment requirements. Inspect the rubber for cuts, deformation and contact wear according to the equipment operating procedure.
For the blue Type H configuration, confirm the selected NBR or HNBR compound and color requirement together. Color is a purchasing identifier and does not establish the polymer, hardness or operating-temperature limit. Provide the fluid composition and operating conditions for compound review.
Request a quotation with the Type H head identification, rubber drawing, line diameter and approved color sample or color specification.
![]()
![]()
Oil saver rubbers are available in various types and sizes:
*Additional sizes available upon request
Type H is the focus of this configuration. GA, Type 410 and Type C / CL replacements require separate head and rubber drawings.
Line-size reference for this inquiry: 3/8" to 5/8"; confirm the selected opening. Other references, including 5/16" and 3/4" to 1", require separate configurations.
![]()
Features of oil saver rubbers
1) Housing-specific wiping and sealing profile; confirm approved head configuration.
2) Blue color option for order identification; inspect fit and line-contact condition.
|
Material |
NBR or HNBR compound; confirm fluid compatibility, hardness and color specification |
|
Type H connection references |
2-3/8 in. and 2-7/8 in. tubing O.D., or 3-1/2 in. line-pipe O.D.; verify the exact head connection separately from rubber bore |
|
Brand |
SHQN |
|
Color |
Blue Type H option; confirm shade and compound. Other colors by specification |
|
Custom service |
OEM/ODM |
Application: Swabbing with a compatible Type H oil saver head; confirm line size and construction
If the required working pressure is 1,500 psi, verify the Type H head rating and approved rubber assembly before use. Head connection references include 2-3/8 in. and 2-7/8 in. tubing O.D., and 3-1/2 in. line-pipe O.D. These dimensions do not specify the rubber opening, outside profile or height. Use the head drawing and component part number to establish the replacement geometry.
Production Pictures:
![]()
![]()
Welcome to contact us for quotation.
