Factory supplier SHQN Custom Made Well Accessories Wireline Cleaner Oil Savers Rubbers
Custom oil saver rubbers are replacement wiping and sealing elements for a matched oil saver housing. This range lists HNBR and nitrile options; specify the required compound and element geometry for the actual line service.
Specify the complete oil saver assembly rating, housing condition and manufacturer reference when selecting a replacement element for pressure service. Follow the original assembly inspection and adjustment instructions.
A correctly installed element helps wipe fluid from the moving line; inspect wear and adjust according to the assembly instructions.
HNBR and nitrile compounds require separate fluid, temperature and wear evaluation. Confirm the actual line diameter and construction rather than assuming all compounds fit every duty.
Send a dimensioned drawing or sample with the service conditions for custom compound and profile selection.
Oil saver rubbers are available in various types and sizes:
*Additional sizes available upon request
Type H, GA, 410, C and CL are existing range references; identify the exact housing and element type for each order.
Existing line-size references: 5/16 inch, 3/8–5/8 inch and 3/4–1 inch. Confirm the actual line diameter, element bore and outer profile separately.
Features of oil saver rubbers
1) Replacement element geometry matched to the oil saver housing
2) Line wiping performance reviewed against line condition and operating duty.
|
Material
|
HNBR or nitrile compound selected for the specified fluid, temperature and wear requirements |
|
Size
|
Existing equipment references: 2-3/8 and 2-7/8 inch tubing OD; 3-1/2 inch line pipe OD. These are distinct from element bore and wireline diameter. |
|
Brand
|
SHQN
|
|
Color
|
Black or custom color
|
|
Custom service
|
OEM/ODM
|
Application: Swabbing or Electric(slick) line Operations
For Type H enquiries, provide the housing reference and manufacturer pressure rating together with fluid composition, continuous and peak temperature, and line speed. For gas or sour service, specify the gas composition, decompression conditions and required compound qualification.
Custom Oil Saver Rubber: Define the Drawing Before Compound Selection
Specify overall height, outside dimensions, line bore, split or continuous construction and seating details. Distinguish measurements of a worn sample from the intended finished dimensions. Include tolerances and hardness requirements on the approved drawing.
For repeat orders, retain the same drawing revision and compound reference. For a new custom profile, confirm the sample inspection criteria with the housing and line data before production. Different type names or nominal line sizes do not establish interchangeable outer profiles.

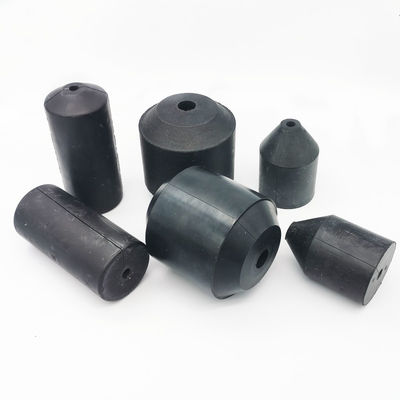

Production Pictures:
Oil saver rubbers are available in various types and sizes:
About our Company:
Shanghai Qinuo Industry Co., Ltd was established in the year of 2014 at Shanghai Free Trade Zone, we are a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.Qinuo has a brand name "SHQN"
Qinuo provides professional rubber parts, plastic parts and machined parts design and production services, products mainly used in oil & gas industry, automobiles, household appliances, machinery equipment etc. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
Under the Shanghai Qinuo, we have two wholly-owned factories in Nantong City, only an hour's drive to Shanghai Pudong Airport or Shanghai Sea port to ensure the quick delivery, we have more than 30 rubber vulcanizing machines and relevanted equipments, so that Qinuo can produce more than 20 kinds of rubber rings or other rubber products together to meet our customer's demands, our monthly rubber processing capability can upto 20 tons (about 40, 000 lbs) or more. And Qinuo is still in rapid growthing.
We adopt comprehensive quality management system based on the ISO9001, our products are mainly exported to the United States, Canada, Britain, Germany, Australia more than 100 countries extend all over the globe. Qinuo is sincerely wishing to cooperate with you.
Main products shown:
- Rubber O rings
- Hammer Union Seals
- Packing Seal Kits
- Oil Packer Elements
- Oil Saver rubbers
- Swab tooling rubber
- Ect
