SHQN Custom Wireline Cleaner Oil Saver Rubbers — Drawing and Sample Requirements
Custom Replacement Specification
Features of oil saver rubbers
1) Match the wiping element to the approved saver head; confirm complete assembly pressure limits.
2) Wipes carried fluid from the line during retrieval; specify actual line diameter and construction.
|
Rubber compound
|
NBR (nitrile) configuration; HNBR alternatives subject to compound and drawing review
|
|
Head connection references
|
Type H references: 2-3/8 in. and 2-7/8 in. tubing O.D., or 3-1/2 in. line-pipe O.D.; confirm head model separately from rubber dimensions |
|
Brand
|
SHQN
|
|
Color
|
Black or custom color
|
|
Custom service
|
OEM/ODM
|
Application: Custom replacement wiping elements for compatible swabbing and wireline heads; verify housing and line fit
For a custom oil saver rubber, provide bore diameter, outside profile, installed height, tolerances and any split or locating features shown on the head drawing. A 1,500 psi job requirement needs confirmation from the rated head and approved rubber arrangement. Type H connection references include 2-3/8 in. and 2-7/8 in. tubing O.D., and 3-1/2 in. line-pipe O.D.; these do not define the rubber bore. Include the actual line diameter, fluid composition, temperature and line movement requirements with the NBR or HNBR compound specification. Confirm sample fit and agreed inspection requirements before production.
Production Pictures:

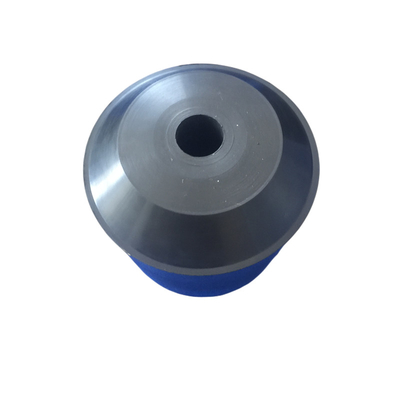

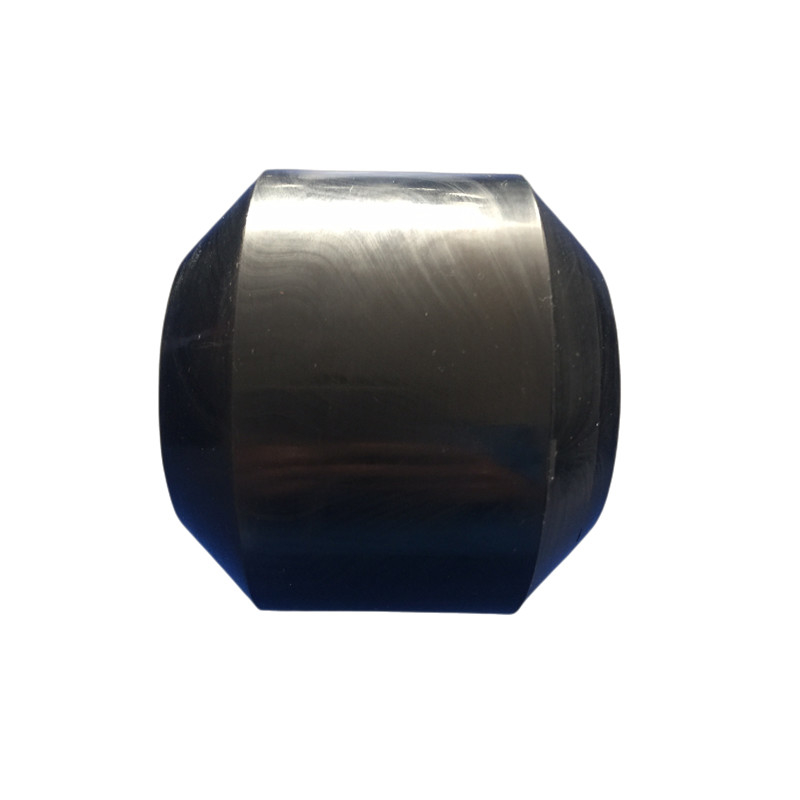

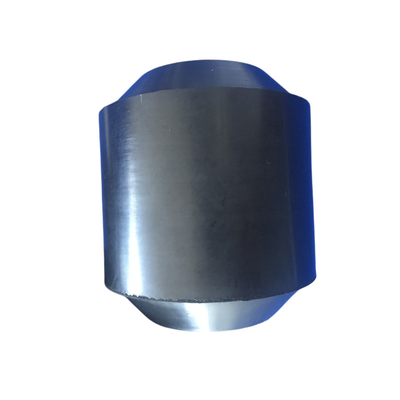

Oil saver rubber configurations for reference:
Custom sizes are reviewed against the head drawing or a dimensioned sample. Identify the head model and part number, and distinguish sample wear from the intended molded dimensions.
Additional configurations on request; confirm tooling, compound, color and quantity in the quotation.
About our Company:
Shangi Qinuo Industry Co., Ltd was established in the year of 2013 at Shanghai Free Trade Zone, we are a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.Qinuo has a brand name "SHQN"
Qinuo provides professional rubber parts, plastic parts and maching parts design and production services, products mainly used in oil & gas industry, automobiles, household appliances, machinery equipment etc. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.
Under the Shanghai Qinuo, we have two wholly-owned factories in Nantong City, only an hour's drive to Shanghai Pudong Airport or Shanghai Sea port to ensure the quick delivery, we have more than 30 rubber vulcanizing machines and relevanted equipments, so that Qinuo can produce more than 20 kinds of rubber rings or other rubber products together to meet our customer's demands, our monthly rubber processing capability can upto 20 tons (about 40, 000 lbs) or more. And Qinuo is still in rapid growthing.
We adopt comprehensive quality management system based on the ISO9001, our products are mainly exported to the United States, Canada, Britain, Germany, Australia more than 100 countries extend all over the globe. Qinuo is sincerely wishing to cooperate with you.
Main products shown:
- Rubber O rings
- Hammer Union Seals
- Packing Seal Kits
- Oil Packer Elements
- Oil Saver rubbers
- Swab tooling rubber
- Ect
