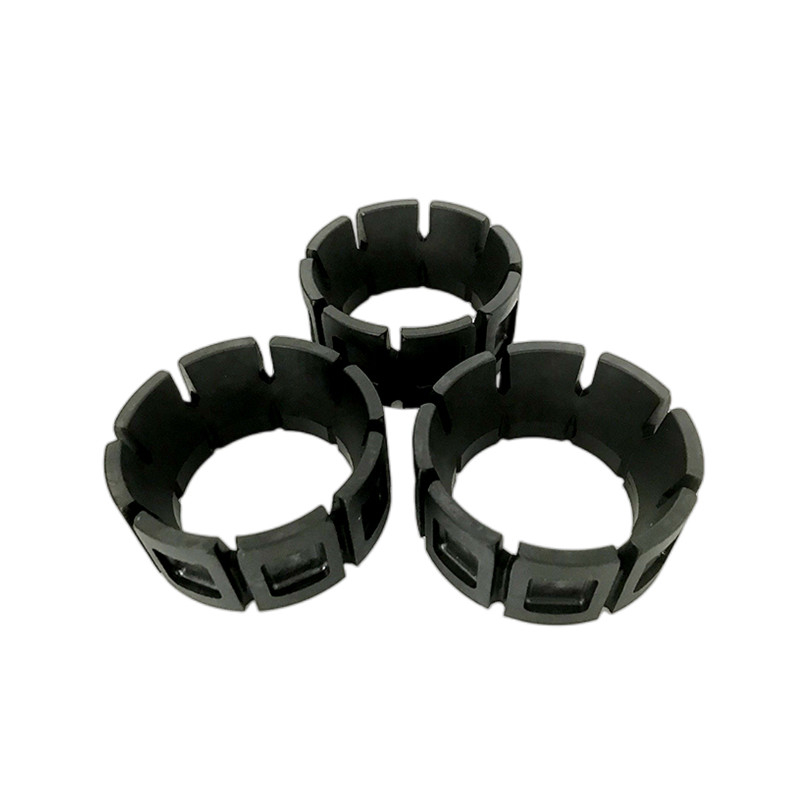

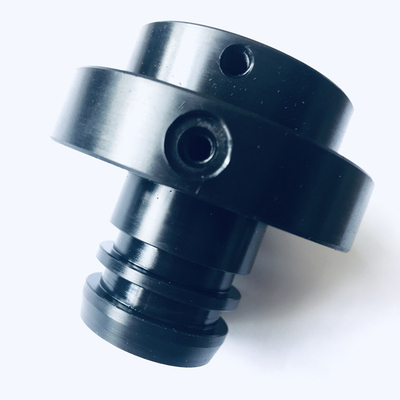

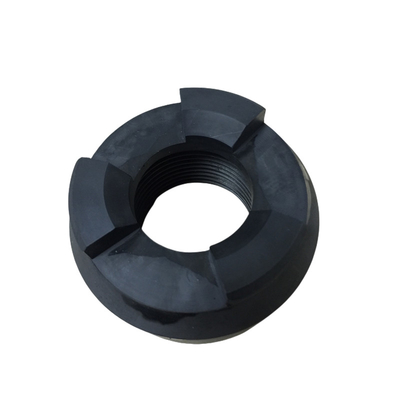

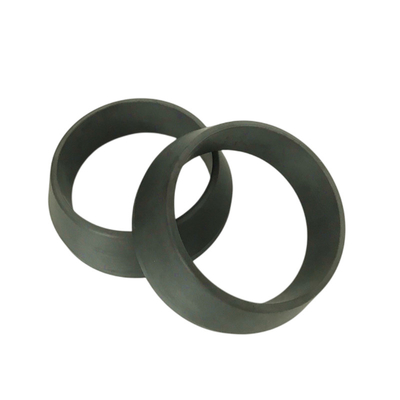

Chemical Resistance Custom Plastic CNC PEEK Plastic Parts For Oil Gas Field

Custom CNC PEEK Parts for Oil and Gas — Grade, Fit and Chemical-Service Selection

PEEK (polyetheretherketone) parts can be specified for oil and gas equipment using a controlled drawing and an identified resin grade. For a CNC component, provide sealing or bearing function, mating dimensions, tolerances and surface finish. Review fluid composition, pressure, temperature and loading against the selected grade data before approving the part.

Some of Peek’s material properties:

=> Chemical resistance: Chemical compatibility must be checked for the exact fluid, concentration, exposure time and temperature. Include cleaning chemicals and mixed-fluid service; do not treat all PEEK grades as universally resistant.

=>Long life:Wear and service life depend on resin grade, counterface, lubrication, load and motion. Specify these conditions for a bearing or sliding component and agree validation criteria.

=>Hydrolysis resistance:For hot-water or steam exposure, specify pressure, temperature, cycle duration and the required dimensional retention. Validate the selected grade and finished geometry for that duty.

=>High temperature resistance: Set normal and peak temperatures together with mechanical load and exposure duration. Material data alone do not establish the finished component temperature rating.

The common PEEK material options:

1) Unfilled PEEK: specify the resin grade, stock form and required dimensional properties.
2) Glass-filled PEEK: identify filler content and review machining orientation, mating surfaces and electrical requirements using grade-specific data.
3) Bearing-grade PEEK: specify the grade and additives for the intended sliding contact. Review counterface finish, lubrication, speed and load; a bearing-grade designation does not establish interchangeable performance.
4) Food-contact PEEK: compliance requires the applicable regulation and documentation for the specific grade and intended conditions of use.

Application of the PEEK products:

Application examples require separate grade and finished-part qualification:

1) Aerospace:

Aerospace components require the drawing, material specification and applicable qualification evidence. An industrial PEEK part should not be substituted solely on polymer name.

2) Filter Manufacturing:

Biodiesel fuel filters: For biodiesel filter components, specify fuel blend, additives, temperature and cleaning exposure. Confirm compatibility and dimensional retention for the selected grade.

Membrane spacer-battery: For a battery spacer, specify geometry, insulation requirements and exposure to the exact electrolyte. Film thickness and porosity are separate specifications from CNC-machined parts.

Vacuum belt filters:For vacuum filter components, provide chemicals, vacuum conditions, cleaning method and mechanical load. Select the grade and validate fit and durability for the assembly.

3) Healthcare:

Implant applications require an appropriate medical grade and device-specific qualification. This industrial product listing does not establish implant suitability or biocompatibility.

For dialysis equipment components, material selection requires the device specification, cleaning or sterilization process and applicable qualification documentation.

4) Food and Beverage:

Food drying:For food drying equipment, specify contact conditions, temperature cycles and dimensional requirements. Confirm grade-specific food-contact documentation before use.

Feed drying: For feed drying equipment, specify heat exposure, loading and cleaning conditions. Agree wear and dimensional acceptance criteria for the actual component.

5) Chemical and Pharmaceutical:

For chemical or pharmaceutical equipment components, supply process and cleaning fluids, temperature cycles, tolerances and contamination-control requirements. Grade selection and finished-part acceptance must be reviewed for the specified duty.

Packing and delivery for custom PEEK parts: protect machined surfaces and identify the drawing revision and material grade.
