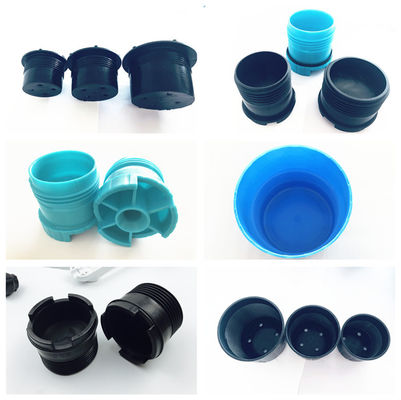

Casing Drill Pipe Plastic Thread Protectors Injection Molded

1. What identifies the correct protector?
Provide the full connection designation, pipe size and pin or box end. Include an approved connection drawing or identified sample when the end geometry is custom.
Nominal pipe diameter alone is insufficient: confirm thread engagement, shoulder clearance and protected-end coverage.
2. What should be reviewed for injection molding?
a. The selected HDPE or ABS grade and required color.
b. Thread and locating dimensions with tolerances.
c. Molded wall sections and any ribs or gripping features.
d. Acceptable parting lines, flash and surface condition.
e. Required fitting and removal method.
f. Part identification and any molded or printed logo.
g. Trial-fit and inspection criteria before production approval.
3. How are handling requirements specified?
1. Define the transport and storage conditions.
2. State temperature and relevant chemical exposure.
3. Agree retention and removal requirements.
4. Specify any impact or handling test and its acceptance criteria.
5. Inspect reused protectors for thread damage, cracking and fit against agreed limits.
4. What should accompany a mixed-size order?
1. A separate size and connection designation for each line.
2. Pin and box quantities identified separately.
3. Material grade, color and construction for each configuration.
4. Packing labels and part identification requirements.
5. Approved drawings and required inspection records.

For casing and drill-pipe plastic protector enquiries, send the exact connection designations, pin/box quantities and handling requirements. Any standards-conformity requirement needs specific acceptance criteria and records.

Custom protectors can be reviewed from a drawing or identified sample. Confirm the thread fit and end coverage before production approval.
