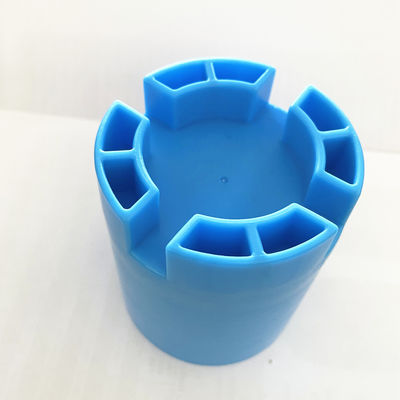

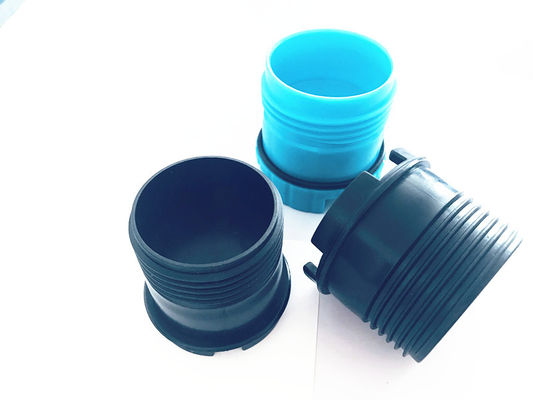

Plastic Injection Molded Pipe Thread Protector Caps Compression

1. What is needed to review a new cap mold?
Provide the pipe-end drawing or a clearly identified sample, required quantity, resin specification and intended handling conditions.
Agree critical dimensions, inspection points and sample trial-fit criteria before production approval.
2. Which dimensions control cap fit?
a. Full thread designation and dimensional reference.
b. Pin or box end configuration.
c. Engagement length and coverage of vulnerable threads.
d. End-face and shoulder clearances.
e. Wall sections and reinforcement geometry.
f. Grip dimensions and removal access.
g. Acceptable flash and parting-line locations.
3. How should an injection-molded sample be checked?
1. Compare critical dimensions with the approved drawing.
2. Confirm the resin grade and color identification.
3. Check thread engagement on the intended connection.
4. Inspect molding defects, flash and surface requirements.
5. Record agreed fit and handling-test results for approval.
4. What should accompany a repeat order?
1. Approved part number and drawing revision.
2. Resin grade and color reference.
3. Size, connection and pin/box configuration.
4. Quantity, lot marking and packing requirements.
5. Any revised acceptance criteria or handling conditions.

For molded pipe cap enquiries, include the connection details and sample approval requirements so tooling and inspection can be reviewed for the correct part.

Custom caps can be reviewed from a drawing or sample; changes to resin or geometry require renewed fit review.
