Male Female Plastic Thread Protectors For 2 1/8" 2 3/8" 3 1/8" Casing Pipe , Drilling Pipe

Male Female Plastic Thread Protectors For 2 1/8" 2 3/8" 3 1/8" Casing Pipe , Drilling Pipe

  • Male Female Plastic Thread Protectors For 2 1/8" 2 3/8" 3 1/8" Casing Pipe , Drilling Pipe
  • Male Female Plastic Thread Protectors For 2 1/8" 2 3/8" 3 1/8" Casing Pipe , Drilling Pipe
  • Male Female Plastic Thread Protectors For 2 1/8" 2 3/8" 3 1/8" Casing Pipe , Drilling Pipe
  • Male Female Plastic Thread Protectors For 2 1/8" 2 3/8" 3 1/8" Casing Pipe , Drilling Pipe
Male Female Plastic Thread Protectors For 2 1/8" 2 3/8" 3 1/8" Casing Pipe , Drilling Pipe
Product Details:
Place of Origin: Shanghai, China
Brand Name: SHQN
Certification: ISO 9001
Model Number: Plastic Thread Protectors
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: 0.1-0.3
Packaging Details: Standard export packing
Delivery Time: Depends on order qty
Payment Terms: L/C, T/T, Western Union, , D/A, D/P
Supply Ability: 5 tons/week
Contact Now
Detailed Product Description
Material:: Plastic; Exact Resin Grade To Be Specified Color: Black, Or Assigned Color
Product Name: Male And Female Plastic Pipe Thread Protectors Shape: Internal-thread Or External-thread Protector Per Connection Drawing
Quality: ISO 9001 Quality Management; Agreed Dimensional And Fit Checks Style: Pipe Thread Protectors
Service: OEM/ODM Pin And Box Configuration Review Mode Of Production: Injection
Business Type: Manufacturer/Factory Package: Separate Labels And Quantities For Pin And Box Protectors
Use: Pipe-end Thread Protection During Transport And Storage Sample: Available,7-10 Workdays
Logo: Size And Connection Marking Per Approved Artwork Machine Type: Drilling Tool
Surface Finish: Molded Texture And Acceptable Flash Per Drawing Design Software: UG, Pro/E, CAD, Solidworks And So On
Highlight:

oilfield thread protectors

,

drill pipe thread protectors

Male and Female Plastic Pipe Thread Protectors — End Configuration and Fit

Description

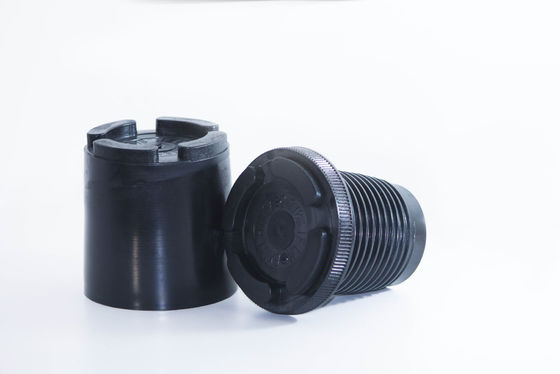

Male and female plastic thread protectors cover the selected pipe-end connection during transportation and storage. Identify the pipe end as pin or box and specify whether the protector needs internal or external threads; male/female terminology alone can be ambiguous.

An internally threaded protector fits the external threads of a pin end; an externally threaded protector fits the internal threads of a box end. Confirm the actual geometry and engagement on the intended connection before approving a set.

Plastic protectors and metal-plastic composite protectors are separate constructions. This enquiry concerns plastic parts; specify the resin grade and molded geometry rather than assuming a steel reinforcement.

Before reuse, inspect the protector for damaged threads, cracks, distortion and contamination. Reuse or recycling depends on the actual condition and applicable handling procedure.

For a matched pin/box set, list quantities for each end separately. Material, coverage and retention requirements are reviewed for the connection and storage conditions rather than selected by price alone.

Male Female Plastic Thread Protectors For 2 1/8" 2 3/8" 3 1/8" Casing Pipe , Drilling PipeMale Female Plastic Thread Protectors For 2 1/8" 2 3/8" 3 1/8" Casing Pipe , Drilling Pipe

Male Female Plastic Thread Protectors For 2 1/8" 2 3/8" 3 1/8" Casing Pipe , Drilling Pipe
Size labels shown for this enquiry include 2-1/8, 2-3/8 and 3-1/8 inches; confirm what each dimension refers to on the drawing. Broader size references include 2-7/8 through 20 inches, NC26, NC38, NC50 and REG connections, with BTC, STC and LTC also listed. A size label does not establish thread compatibility or an available size/connection combination.

Pin and Box Protector Selection Points:
1. Identify the full connection designation and drawing revision.
2. Specify storage temperature, outdoor exposure and contact chemicals.
3. Confirm the plastic resin grade and any required reinforcement separately.
4. Agree molded or printed size and connection identification.
5. Review installation and removal access on the pipe end.
6. Provide the exact connection drawing and required dimensional reference.
7. Define required thread and seal-area coverage with end-face clearances.
8. Check fit on the intended pin or box connection.
9. Agree retention, impact or ingress test requirements where needed.
10. Specify storage duration and inspection requirements before reuse.
11. Order pin and box protectors as distinct configurations with separate quantities.
Packaging & Shipping

Port: Shanghai
MOQ: 1000 pcs,Custom parts: 5000pcs
Packing: bulk packing or custom packing
Payment: PayPal, T/T, Western Union, L/C
Delivery time: Depend on the quantity


Other oil and gas industry accessories for choice:
Male Female Plastic Thread Protectors For 2 1/8" 2 3/8" 3 1/8" Casing Pipe , Drilling Pipe

Our company

Shanghai Qinuo Industry Co., Ltd. provides custom plastic-part enquiries with drawing and sample review. For paired pipe protectors, identify each end configuration as a separate item.
Design and molding review covers resin selection, thread engagement, gripping features and part identification for the intended pipe connection.
Agree critical dimensions and trial-fit criteria before mold and sample approval. Record any changes to the connection drawing or resin specification for repeat orders.
Manufacturing operates under ISO 9001 quality management. Request material declarations or additional compliance documents for the specified resin and finished protector where required.

Send the pin and box drawings or clearly identified samples with quantities, resin requirements and handling conditions for a connection-specific quotation.
