ODM/ OEM custom made FKM Custom Rubber Products Guide Washer Insert

ODM/ OEM custom made FKM Custom Rubber Products Guide Washer Insert

  • ODM/ OEM custom made FKM Custom Rubber Products Guide Washer Insert
  • ODM/ OEM custom made FKM Custom Rubber Products Guide Washer Insert
  • ODM/ OEM custom made FKM Custom Rubber Products Guide Washer Insert
  • ODM/ OEM custom made FKM Custom Rubber Products Guide Washer Insert
  • ODM/ OEM custom made FKM Custom Rubber Products Guide Washer Insert
ODM/ OEM custom made FKM Custom Rubber Products Guide Washer Insert
Product Details:
Place of Origin: Shanghai, China
Brand Name: SHQN
Certification: ISO 9001
Model Number: Guide Washer Insert
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: 1-5 USD
Packaging Details: Bulk packing
Delivery Time: 10-20days
Payment Terms: L/C, D/A, D/P, T/T, D/P, Western Union,
Supply Ability: 1,000,000PCS per Month
Contact Now
Detailed Product Description
Item Name: Custom-moulded FKM Guide Washer Insert Material: FKM Compound To Approved Specification
Color: Natural Or Black Hardness: 85 Shore A Nominal; Tolerance To Specification
Custom Service: Acceptable ODM/OEM: Yes
Highlight:

custom rubber components

,

custom molded rubber parts

Product name:Custom-Moulded FKM Guide Washer Insert — 85 Shore A, Bore Fit and Assembly Location

Material FKM compound selected for the specified fluid and temperature
Custom make Yes
Size:  Inner diameter, outer diameter, thickness and locating profile to drawing, with tolerances

Compression Molding:Compression moulding cures the specified FKM compound under heat and pressure in a shaped cavity. Agree parting-line location, flash limits and critical bore dimensions so the washer insert fits its mating assembly. Tooling and process selection depend on the drawing and order requirements.

Specify the nominal 85 Shore A hardness and tolerance, mating shaft or bore dimensions, washer seating face and installed clearance. Confirm whether the insert provides guidance, spacing or sealing; each function needs its own acceptance criteria.

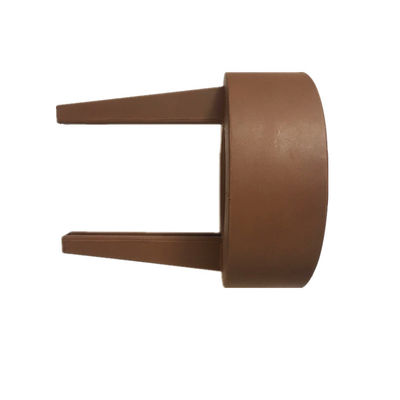

Guide washer insert detail photographs:

ODM/ OEM custom made FKM Custom Rubber Products Guide Washer Insert

ODM/ OEM custom made FKM Custom Rubber Products Guide Washer Insert

ODM/ OEM custom made FKM Custom Rubber Products Guide Washer Insert

This FKM guide washer insert is made to an assembly drawing for OEM replacement or new equipment. Review the contact surface, axial location and expected movement before selecting the compound. Include fluid exposure, temperature cycles, contact load and wear requirements; material name and hardness alone do not establish a pressure rating or load capacity.

We supply:

  1. Hammer union seals
  2. Kinds of rubber packer elements
  3. Kinds of swab cups
  4. Rubber o rings
  5. Wireline Flow Tubes
  6. Perforating gun
  7. Any kind of rubber products
  8. Backup rings

ODM/ OEM custom made FKM Custom Rubber Products Guide Washer InsertWe operate under an ISO 9001 quality management system. Agree inspection of moulded dimensions, hardness, flash and surface condition for the guide washer insert. Material or regulatory declarations must relate to the selected compound and order requirements.

ODM/ OEM custom made FKM Custom Rubber Products Guide Washer Insert

Alternative material families can be reviewed for other custom components. The materials listed below do not replace the specified FKM grade without approval of the drawing and operating requirements.


EPDM
Neoprene
Fluorosilicone
PTFE
HNBR
Closed and Open Cell Foam variant of above listed materials
ODM/ OEM custom made FKM Custom Rubber Products Guide Washer Insert
For a guide washer insert quotation, send the drawing revision or sample, inner and outer diameters, thickness, tolerances, quantity and mating-part details. Include the FKM compound, 85 Shore A hardness requirement, color, fluid, temperature and assembly acceptance checks.

ODM/ OEM custom made FKM Custom Rubber Products Guide Washer Insert
