| Place of Origin: | Shanghai, China |
| Brand Name: | SHQN |
| Certification: | ISO 9001 |
| Model Number: | Plastic Thread Protectors |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | 0.1-0.3 |
| Packaging Details: | Standard export packing |
| Delivery Time: | Depends on order qty |
| Payment Terms: | L/C, T/T, Western Union, , D/A, D/P |
| Supply Ability: | 5 tons/week |
| Material:: | Plastic; Resin Grade And Component Construction To Be Specified | Color: | Black, Or Assigned Color |
|---|---|---|---|
| Application: | Casing Connection Coverage During Transport And Storage | Product Name: | Plastic Casing Pipe Thread Protector |
| Shape: | Pin Or Box Geometry Per Approved Casing Connection Drawing | Quality: | ISO 9001 Quality Management; Agreed Fit And Inspection Criteria |
| Style: | Pipe Thread Protectors | Service: | OEM/ODM Connection And Material-identification Review |
| Mode Of Production: | Molding Process Specified For Resin And Protector Geometry | Business Type: | Manufacturer/Factory |
| Package: | Labels By Connection, End Configuration And Material Where Required | Use: | Casing Thread Protection; Reuse Subject To Inspection |
| Sample: | Available,7-10 Workdays | Logo: | Connection And Material Marking Per Approved Artwork |
| Machine Type: | Drilling Tool | Surface Finish: | Molded Surface And Acceptable Flash Per Drawing |
| Design Software: | UG, Pro/E, CAD, Solidworks And So On | ||
| Highlight: | oilfield thread protectors,drill pipe thread protectors |
||

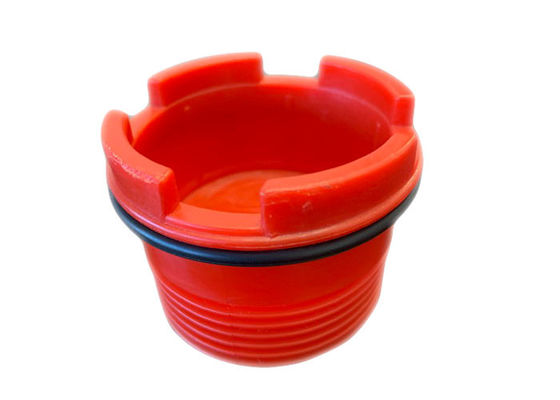

Plastic Casing Pipe Thread Protectors — Reuse Inspection and Material Sorting
Plastic casing pipe thread protectors cover the selected connection during transport and storage. Confirm the casing size, full connection designation and pin or box end before ordering. Reuse requires inspection of the actual protector; recycling depends on its resin, contamination and acceptance by the receiving recycler. Plastic and metal-plastic composite parts need separate construction and handling specifications.
Casing size references in inches include 4, 4-1/2, 5, 5-1/2, 6-5/8, 7, 7-5/8, 8-5/8, 9-5/8, 10-3/4, 11-3/4, 13-3/8, 16 and 20. Confirm the exact drawing and BTC, STC, LTC or other connection designation. Tubing and drill-pipe references are separate enquiries, and the list does not establish every size/connection combination.
![]()
![]()
![]()
![]()
![]()
![]()
Fit, Reuse and Collection Review:
1. Confirm connection-specific thread coverage.
2. Specify exposure conditions and storage duration.
3. Identify the resin grade and any non-plastic components.
4. Agree size, connection and material identification.
5. Check installation and removal features.
6. Provide the approved casing connection drawing.
7. Define engagement and end-face clearances.
8. Trial-fit the actual casing end.
9. Agree handling-test requirements where needed.
10. Inspect threads, walls and contamination before reuse.
11. Confirm collection and sorting requirements with the receiving recycler.
Packaging & Shipping
| Port: | Shanghai |
| MOQ: | 1000 pcs,Custom parts: 5000pcs |
| Packing: | bulk packing or custom packing |
| Payment: | PayPal, T/T, Western Union, L/C |
| Delivery time: | Depend on the quantity |
![]()
![]()
![]()
Other oil and gas industry accessories for choice:
![]()
Our company
Shanghai Qinuo Industry Co., Ltd. reviews plastic casing protector enquiries from identified drawings or samples. Include resin and handling requirements along with the connection details.
The part review covers molded geometry, thread engagement, gripping features and identification. State material-marking requirements if protectors will enter a managed collection stream.
Agree sample fit and inspection criteria before production. Separate damaged protectors from items approved for reuse, and follow the applicable handling procedure.
Manufacturing operates under ISO 9001 quality management. Material identification or other product documents can be specified for the ordered protector; recycling acceptance is confirmed with the receiving facility.
![]()
FAQ
1. When may a protector be reused?
Reuse depends on its condition and the agreed inspection criteria. Check thread damage, cracks, distortion and contamination before refitting.
Do not use appearance alone as proof of retained fit or handling performance. Replace parts that fail the agreed checks.
2. What should be identified for material sorting?
a. Plastic resin grade or material identification.
b. Any metal inserts or other components.
c. Oil, grease or other contamination.
d. Required cleaning or segregation procedure.
e. Receiving recycler acceptance conditions.
f. Collection and packing labels.
g. Any applicable handling and disposal requirements.
3. Does a plastic designation guarantee recyclability?
1. The exact resin and construction must be identified.
2. Contamination may affect facility acceptance.
3. Mixed components may need separation.
4. Confirm the receiving facility process and acceptance.
5. Avoid a blanket recycling claim without that review.
4. What is needed for a casing protector quotation?
1. Casing size and full connection designation.
2. Pin or box end configuration.
3. Drawing revision or identified sample.
4. Resin, marking and quantity requirements.
5. Handling, reuse inspection and collection requirements.
Send the casing connection drawing with material and handling requirements for a protector quotation.
Custom protectors can be reviewed from a drawing or sample; approve connection fit and any requested material marking before production.
