| Place of Origin: | Shanghai, China |
| Brand Name: | SHQN |
| Certification: | ISO9001 |
| Model Number: | Plastic Thread Protectors |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | 0.1-0.3 |
| Packaging Details: | Standard export packing |
| Delivery Time: | Depends on order qty |
| Payment Terms: | L/C, T/T, Western Union, , D/A, D/P |
| Supply Ability: | 5 tons/week |
| Material:: | Polypropylene (PP); Grade By Agreed Service Conditions | Color: | Black, Or Assigned Color |
|---|---|---|---|
| Application: | Drill Pipe Tool Joint Transport, Rack Storage And Handling | Product Name: | PP Drill Pipe Tool Joint Thread Protectors |
| Shape: | Pin Or Box Design Matched To Tool Joint Connection Drawing | Quality: | ISO 9001 Quality Management; Handling Checks By Order |
| Style: | Pipe Thread Protectors | Service: | Tool Joint Connection Review From Drawings Or Samples |
| Mode Of Production: | Molded PP; Tooling By Approved Tool Joint Design | Business Type: | Manufacturer/Factory |
| Package: | Packing Identified By Connection, Pin/box End And Batch | Use: | Drill Pipe Thread Protection Before Use |
| Sample: | Available,7-10 Workdays | Logo: | Connection, End Orientation And Batch Marking By Agreement |
| Machine Type: | Drilling Tool | Surface Finish: | Molded Finish; Thread Engagement Surfaces Per Drawing |
| Design Software: | UG, Pro/E, CAD, Solidworks And So On | ||
| Highlight: | screw thread protectors,drill pipe thread protectors |
||

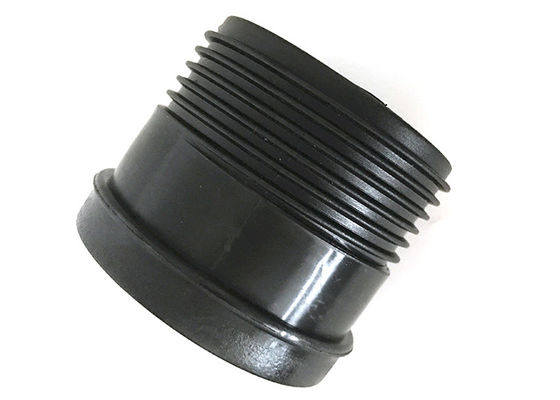

PP Drill Pipe Thread Protectors for Handling and Storage
These polypropylene (PP) drill pipe thread protectors cover tool joint connections during transport, rack storage and handling before use. Match each protector to the full connection designation, pin or box end and tool joint drawing. Specify handling duty through agreed coverage, retention and impact checks rather than treating a heavy-duty description as a tested rating.
Connection references include NC26, NC38, NC50 and selected REG sizes from the original product range. Confirm availability against the required tool joint drawing. The broader nominal pipe size list from 2-3/8 to 20 inches and BTC, STC and LTC casing references do not define a drill pipe protector fit. State thread geometry, engagement length and shoulder clearance for the ordered design.
![]()
![]()
![]()
![]()
![]()
![]()
Packaging & Shipping
| : | Shanghai |
| MOQ: | 1000 pcs,Custom parts: 5000pcs |
| Packing: | bulk packing or custom packing |
| Payment: | Payment method to be agreed in the quotation. |
| Delivery time: | Delivery schedule to be agreed by quantity, tooling and approved sample. |
![]()
![]()
![]()
Other oil and gas industry accessories for choice:
![]()
Our company
Shanghai Qinuo supplies molded plastic parts and oilfield accessories. For PP drill pipe protectors, provide the tool joint connection schedule and the intended transport and storage conditions.
A drill pipe enquiry should identify pin and box quantities separately. Review thread engagement, body clearance and the area to be covered on each end before confirming production.
Custom protector tooling should follow the approved tool joint drawing. Agree PP grade, molded dimensions, identification marks and sample fit checks for each connection.
ISO 9001 applies to the quality management system. Any requested impact, retention or environmental performance must be defined and verified for the ordered design; product-specific API certification is not implied.
![]()
FAQ
1. What does a handling-duty specification need?
Describe the loading, transport and storage conditions in which the protector will be used.
Agree acceptance checks for fit, retention, coverage and any required impact performance before selecting the material and body design.
2. What dimensions should be supplied for a drill pipe protector?
a. Full tool joint connection designation and drawing revision.
b. Pin or box end, with separate quantities for each.
c. Thread diameter, taper, pitch and engagement length from the drawing.
d. Clearance around the tool joint shoulder and pipe opening.
e. Required thread and adjacent surface coverage.
f. PP grade and storage temperature or sunlight exposure requirements.
g. Any agreed test method, identification and packing requirements.
3. How should a sample be checked on the tool joint?
1. Start engagement without forcing or cross-threading.
2. Confirm seating and clearance on the intended end.
3. Check that required thread areas remain covered.
4. Verify retention and removal by the agreed method.
5. Inspect the sample for deformation or damaged engagement after the check.
4. How can mixed connections be controlled in the yard?
1. Keep NC and REG items segregated by full designation.
2. Mark cartons by connection, pin/box end and batch.
3. Inspect protectors after transport or extended storage.
4. Reject cracked bodies, distorted engagement and loose-fitting protectors.
5. Reuse only after confirming clean engagement and the required coverage.
Casing, tubing and other oilfield accessories should be specified separately from drill pipe tool joint protectors.
Send the drill pipe tool joint drawings, pin/box schedule and handling requirements for a PP protector quotation.
