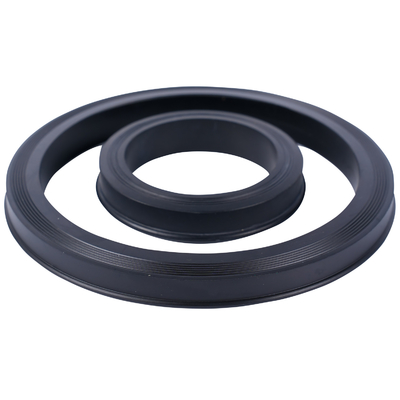

90A Durometer FIG 1502 Hammer Union Seals with API 1" 2" 3" 4" 5" Size

90A Durometer FIG 1502 Hammer Union Seals with API 1" 2" 3" 4" 5" Size

  • 90A Durometer FIG 1502 Hammer Union Seals with API 1" 2" 3" 4" 5" Size
  • 90A Durometer FIG 1502 Hammer Union Seals with API 1" 2" 3" 4" 5" Size
  • 90A Durometer FIG 1502 Hammer Union Seals with API 1" 2" 3" 4" 5" Size
90A Durometer FIG 1502 Hammer Union Seals with API 1" 2" 3" 4" 5" Size
Product Details:
Place of Origin: Shanghai, China
Brand Name: SHQN
Certification: ISO9001
Model Number: HUS001
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Price: US$ 0.2-1
Packaging Details: bulking packing , standard carton
Delivery Time: 50000 pcs/ week
Payment Terms: T/T, Western Union
Contact Now
Detailed Product Description
Material: NBR, , , Nitrile Size: 1", 2", 3", 4", 5" And Other Custom Size
Pressure: 1-150000 Psi Color: Black Or Customized Color
Nearest Port: Shanghai Custom: Customize According To Client's Drawing And Requirements
High Light:

hammer seal union

,

rubber lip seal

90A Durometer FIG 1502 Hammer Union Seals with API 1" 2" 3" 4" 5" Size



                                         Application

Hammer union seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware.

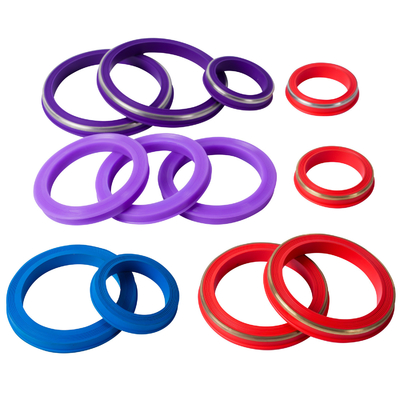

90A Durometer FIG 1502 Hammer Union Seals with API 1" 2" 3" 4" 5" Size 0

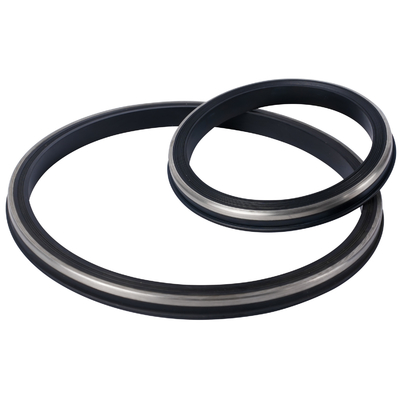

90A Durometer FIG 1502 Hammer Union Seals with API 1" 2" 3" 4" 5" Size 1

                                 Product Description

A hammer union comprises of a thread end, a nut end and a hammer nut which, when cinched up, compresses a composite seal assembly thereby preventing leakage. The seal assembly comprises a metal insert of a size to pass into the seal groove of conventional hammer unions and a small seal acting between the insert, the thread end and the nut end. The small seal is conveniently an O-ring or a Hammer Union Seal (Lip Seal) and is of a size that is compressed when the seal assembly is inserted into the thread end of the hammer union.



Hammer Union seal are high-pressure threaded or welded connections with two halves a threaded female half and a wing male half with swivel nut that fit together and seal upon turning and then hammering the nut half together with the threaded half. Shanghai Qinuo can supply you best Hammer Union seal in different figs like 602, 1002, 1502, 2002 and 2202.



Available size : 1", 2", 3", 4" and 5"



Material:

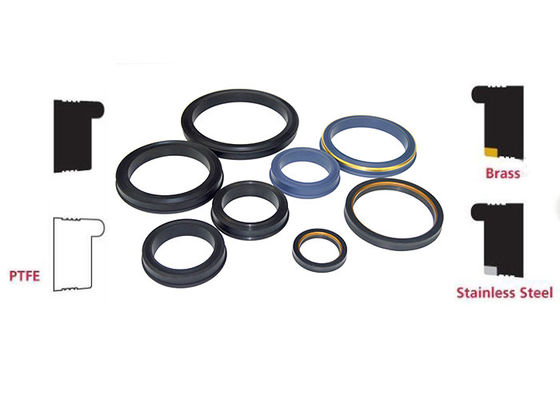

Union Seals in 1” to 4” line pipe sizes in 80 Nitrile, 80 , 90 , 80 HNBR.



Shanghai Qinuo Industry produced a full line of Hammer Union Seals.

These Hammer Union Seals are designed to seal on a Figure 1502 Unions with typical pressure ratings for standard service of 15,000 PSI and are tested to 22,500 PSI, we also produce a line of HUS seals with Brass backup rings as well as a line with stainless steel backups. so no matter what your application requires Qinuo seals can produce the seal you need.



All available Hammer Union seals list :

1" HAMMER UNION LIP SEAL RING, BUNA

1-1/2" HAMMER UNION LIP SEAL RING, BUNA

2" HAMMER UNION LIP SEAL RING, BUNA

3" HAMMER UNION LIP SEAL RING, BUNA

1" HAMMER UNION LIP SEAL RING,

1-1/2" HAMMER UNION LIP SEAL RING,

2" HAMMER UNION LIP SEAL RING,

3" HAMMER UNION LIP SEAL RING,

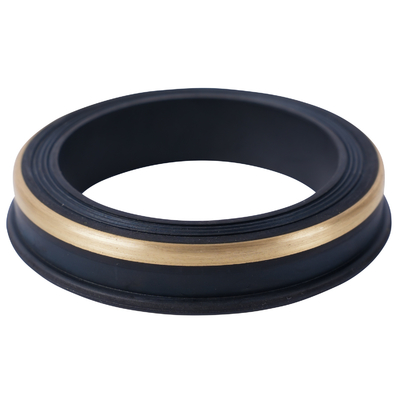

2" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

3" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

4" HAMMER UNION SEAL RING, BUNA W/ BRASS BACKING

2" HAMMER UNION SEAL RING, W/ BRASS BACKING

3" HAMMER UNION SEAL RING, W/ BRASS BACKING

4" HAMMER UNION SEAL RING, W/ BRASS BACKING

2" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

3" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

4" HAMMER UNION SEAL RING, BUNA W/ STAINLESS STEEL BACKING

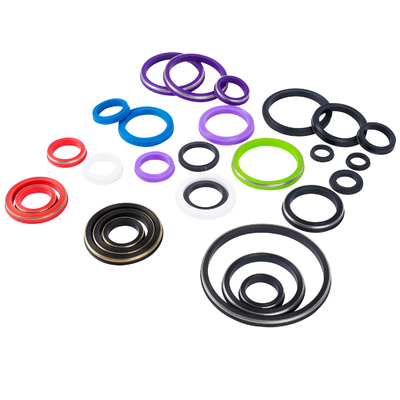

Other relative rubber products for oil drilling use:

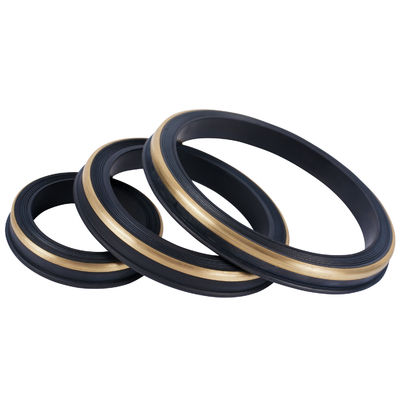

90A Durometer FIG 1502 Hammer Union Seals with API 1" 2" 3" 4" 5" Size 2

                                   Packing and shipping

1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.

2: Air shipment: air port to air port or air port to door.

3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.

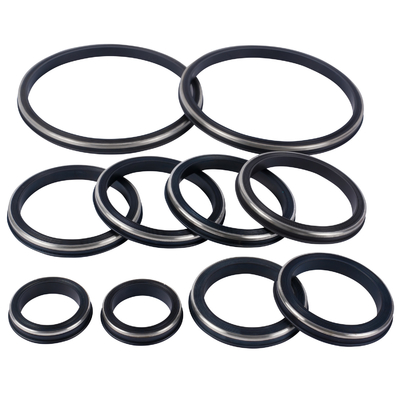

90A Durometer FIG 1502 Hammer Union Seals with API 1" 2" 3" 4" 5" Size 3

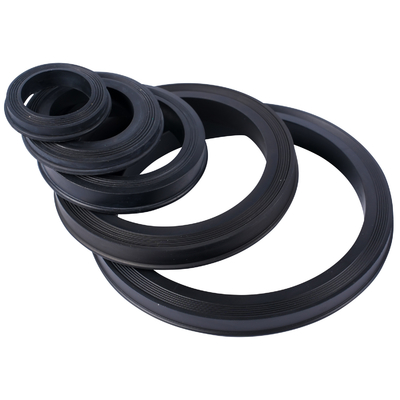

90A Durometer FIG 1502 Hammer Union Seals with API 1" 2" 3" 4" 5" Size 4

                                            Our company



Shanghai Qinuo Industry Co. Ltd

was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.

Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.

We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.

We adopt comprehensive quality management system, all components passed ROHS certification, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, New Zealand, Australia and other countries and regions.

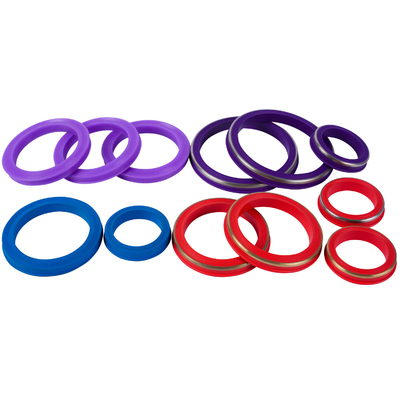

90A Durometer FIG 1502 Hammer Union Seals with API 1" 2" 3" 4" 5" Size 5



The steps of the production:



90A Durometer FIG 1502 Hammer Union Seals with API 1" 2" 3" 4" 5" Size 6



Welcome to contact us for more information.
