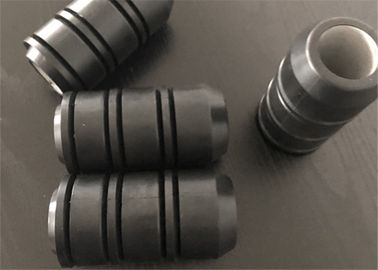

Aluminum Core Oilfield Swab Cups Tubing High Temperature Resistance

Aluminum Core Oilfield Swab Cups Tubing High Temperature Resistance

  • Aluminum Core Oilfield Swab Cups Tubing High Temperature Resistance
  • Aluminum Core Oilfield Swab Cups Tubing High Temperature Resistance
  • Aluminum Core Oilfield Swab Cups Tubing High Temperature Resistance
  • Aluminum Core Oilfield Swab Cups Tubing High Temperature Resistance
  • Aluminum Core Oilfield Swab Cups Tubing High Temperature Resistance
Aluminum Core Oilfield Swab Cups Tubing High Temperature Resistance
Product Details:
Place of Origin: China
Brand Name: SHQN
Certification: ISO 9001
Model Number: Swab cups
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: 0.3-1
Packaging Details: Carton packing
Delivery Time: 15days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs per week
Contact Now
Detailed Product Description
Size:: 2 3/8" 2 7/8" 3 1/2" Or Custom Zises Material:: Viton, HNBR And Nitrile
Environment:: Oil, Gas, Gas Condensate Color: Black Or Custom Color
Original: Shanghai China Types:: MV Style, TA Style, TUF Style, NUF Style And V Style
Name: Swab Cups
High Light:

rubber swab cup

,

swabbing equipment tube

2-3/8" ,2-7/8" ,3-1/2" Aluminum Core Swab Cup/ Aluminum Core Undersize Swab Cup

Part Name MV Style, TA style, TUF style, NUF style and V style
Environment oil, gas, gas condensate
Available Material

FKM, Viton, HNBR and nitrile rubber with or without Brass or Steel

Shanghai Qinuo is proud to be partnered with Global Elastomeric in producing the highest quality of North American manurfactured Swab Cups. Our Swab Cups are produced from a newly developed rubber in the popular Guiberson* profile in either a nitrile or Frac Fluid compound. These cups can also be produced in other specified materials. Our cups are designed for durability and perform under the toughest conditions.

Aluminum Core Oilfield Swab Cups Tubing High Temperature Resistance 0

Available types of Swab cups:

TA style: TA is a medium load Swab Cup built around a steel or aluminum bushing for use in most sizes of tubing or drill pipe. When under load, it will compress to form a solid rubber mass for maximum lifting capacity and minimum wear. Manufactured from a newly developed rubber compound, these cups provide our customers with a high quality North American product. Our special Frac Fluid compound is developed for the ultimate in durability and performance. These Frac Swab Cups are designed to perform under the toughest conditions.

Aluminum Core Oilfield Swab Cups Tubing High Temperature Resistance 1

 MV style: Shanghai Qinuo offers the popular Guiberson* profile MV Swab Cup in both nitrile and frac fluid rubber compound. The cup has either an aluminum or steel bushing with multiple upturned lips which allows it to pass through tight spots and control the amount of load. It is very efficient in fluid with suspended sand.

Aluminum Core Oilfield Swab Cups Tubing High Temperature Resistance 2



V style: Shanghai Qinuo carries the V Series Swab Cup in a light duty and heavy duty all rubber cup that is suited for use in fluids with high concentrations of suspended sand. The upturned lips pass easily through tight spots and will invert to dump excessive loads. The number of cups used will vary with conditions.

Our special Frac Fluid compound has excellent abrasion resistance high tensile strength and outstanding resistance to chemical attack.
TUF style: The design of the GE-TUF cup, with its internal metal reinforcement which maintains the shape of the cup, makes this an excellent choice for deep hot wells or rough and corroded tubing and casing. Strong enough for heavy loads, its flexability also allows it to work in light load situations.
NUF style: The GE-NUF is a heavy load all rubber cup that provides maximum lifting capacity. Bonded to either standard steel or aluminum bushings, and available in a wide range of sizes, this cup is a good choice for deep well applications. This cup is designed for high performance and heavy loads. Made of our special Frac Fluid compound, it will perform under the toughest conditions.
Aluminum Core Oilfield Swab Cups Tubing High Temperature Resistance 3

Other relative rubber products:

Aluminum Core Oilfield Swab Cups Tubing High Temperature Resistance 4

Application environment: oil, gas, gas condensate.

 Aluminum Core Oilfield Swab Cups Tubing High Temperature Resistance 5

Packing and shipment :

1: Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.

2: Air shipment: air port to air port or air port to door.

3: Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.



Aluminum Core Oilfield Swab Cups Tubing High Temperature Resistance 6



Shanghai Qinuo Industry Co. Ltd was established in 2003, is a new and high-tech enterprise integrating R&D, production and sales. Since its inception, we adhering to the "Quality for Survival, Innovation Competes For Development " concept, continuous development and innovation, we won a good reputation at home and abroad.

Our company provides professional plastic parts, rubber parts and maching parts design and production services, products mainly used in automobiles, household appliances, machinery equipment and oil industry and other fields. We have a professional production and sales team, "High-Quality, High Professionalism, High Efficiency" are the principles of doing things.

We have two factories, more than 30 injection molding machines, molding machines and CNC lathes. Our company is located in Pudong New Area, Shanghai. Elegant environment, convenient transportation, Only need 30 minutes from our company to Pudong Airport.

We adopt comprehensive quality management system, all components passed ROHS certification, our products are mainly exported to the United States, Canada, Britain, Germany, Finland, New Zealand, Australia and other countries and regions.

Aluminum Core Oilfield Swab Cups Tubing High Temperature Resistance 7

Mould corner view for the rubber parts:

Aluminum Core Oilfield Swab Cups Tubing High Temperature Resistance 8



Why Choose Our Top-Quality Swab cups?

We understand that no matter what industry you’re in, one thing remains the same: You need top-quality products to ensure the safety of your people, the longevity of your equipment and the quality of your product.

If you have to delay operations due to any material defects, it can place a huge financial burden on your business. For example, not being able to operate an oil well for a day can run into the tens of thousands of dollars in costs. Similarly, if you’re in the agricultural business, postponing anything from tilling and planting to harvesting simply isn’t an option, as it will impact the product.

That’s why we always look at things from our clients’ perspective. We always appreciate that having top-quality products delivered in a timely manner isn’t simply an option: It’s a must.

Welcome to contact us for more information about the swab cups.
